TOA T-001T – Dual Line Output Module with DSP for M-9000M2
Product Overview

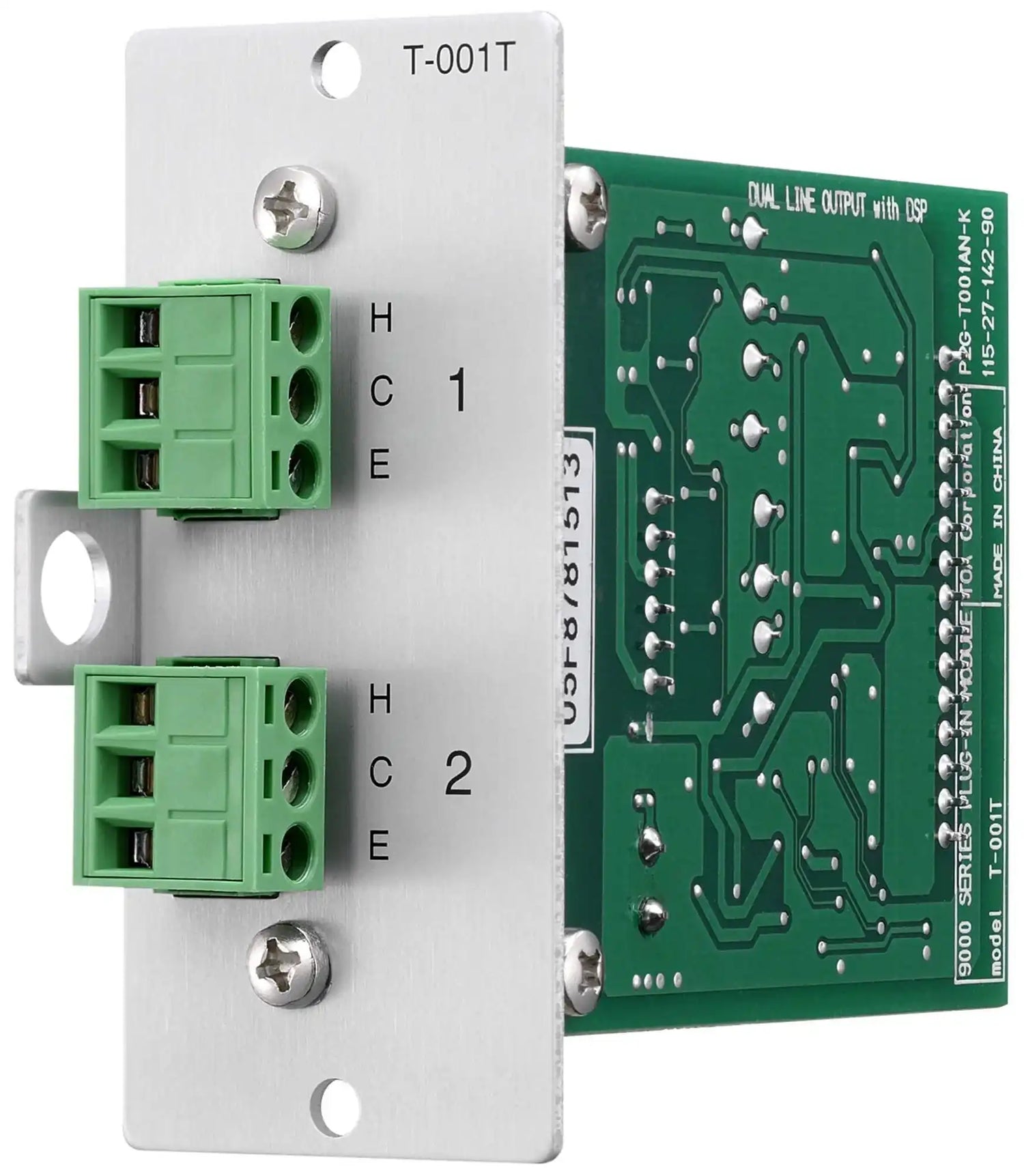

The TOA T-001T is a dual line output expansion module with DSP for the M-9000M2 Digital Matrix Mixer system. It adds two independent electronically-balanced line outputs, each with its own full DSP chain, to any open slot in a 9000-series frame.
Product Description
Plug the T-001T into any open slot of an M-9000M2 frame to gain two electronically-balanced outputs capable of driving 600Ω loads. Each output has its own independent DSP channel with 10-band parametric EQ, high- and low-pass filters, tone control, compressor, delay, and preloaded TOA speaker correction EQ presets. Outputs terminate to removable 3-pin terminal blocks for clean field wiring. Add the T-001T to your M-9000M2 system through creationnetworks.net.
Key Features
- Two independent electronically-balanced line outputs, 600Ω
- Maximum output level: +20 dB (at 10 kΩ load)
- Per-channel DSP: 10-band parametric EQ, high/low-pass filters, tone control, compressor, delay
- Preloaded TOA speaker correction EQ presets
- Plug-in module for M-9000M2 Digital Matrix Mixer frames
- Removable 3-pin terminal block outputs
Technical Specifications
| Specification | Value |
|---|---|
| Output Channels | 2 (independent) |
| Output Type | Electronically balanced |
| Output Impedance | 600 Ω |
| Maximum Output Level | +20 dB (at 10 kΩ load) |
| DSP Features | 10-band parametric EQ, high/low-pass filters, tone control, compressor, delay, TOA speaker EQ presets |
| Connector | Removable terminal block (3-pin) |
| Compatible System | M-9000M2 Digital Matrix Mixer |
