TOA N-8050DS IP54 Hands-Free Door Station | N-8000 Series

Product Overview

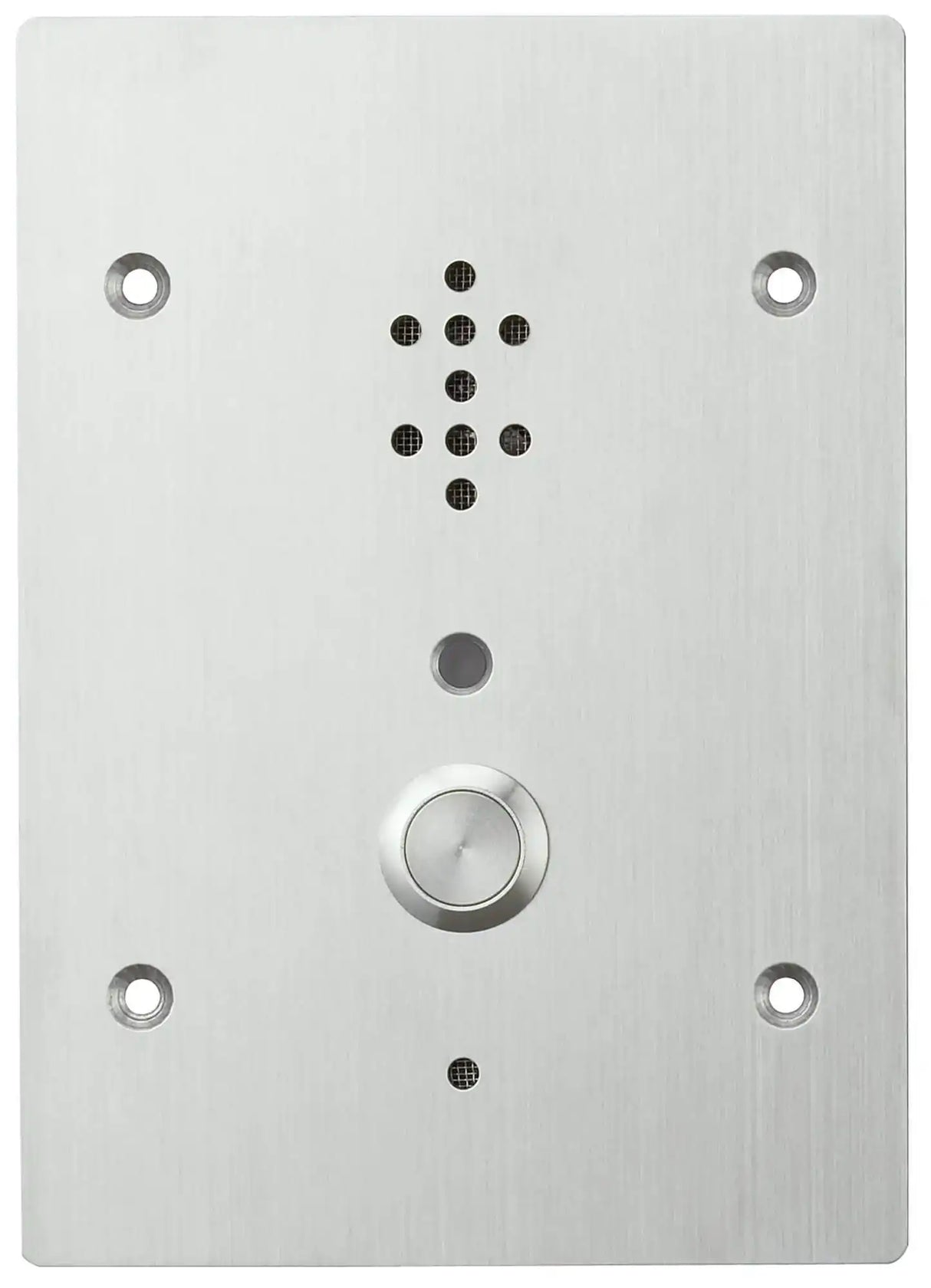

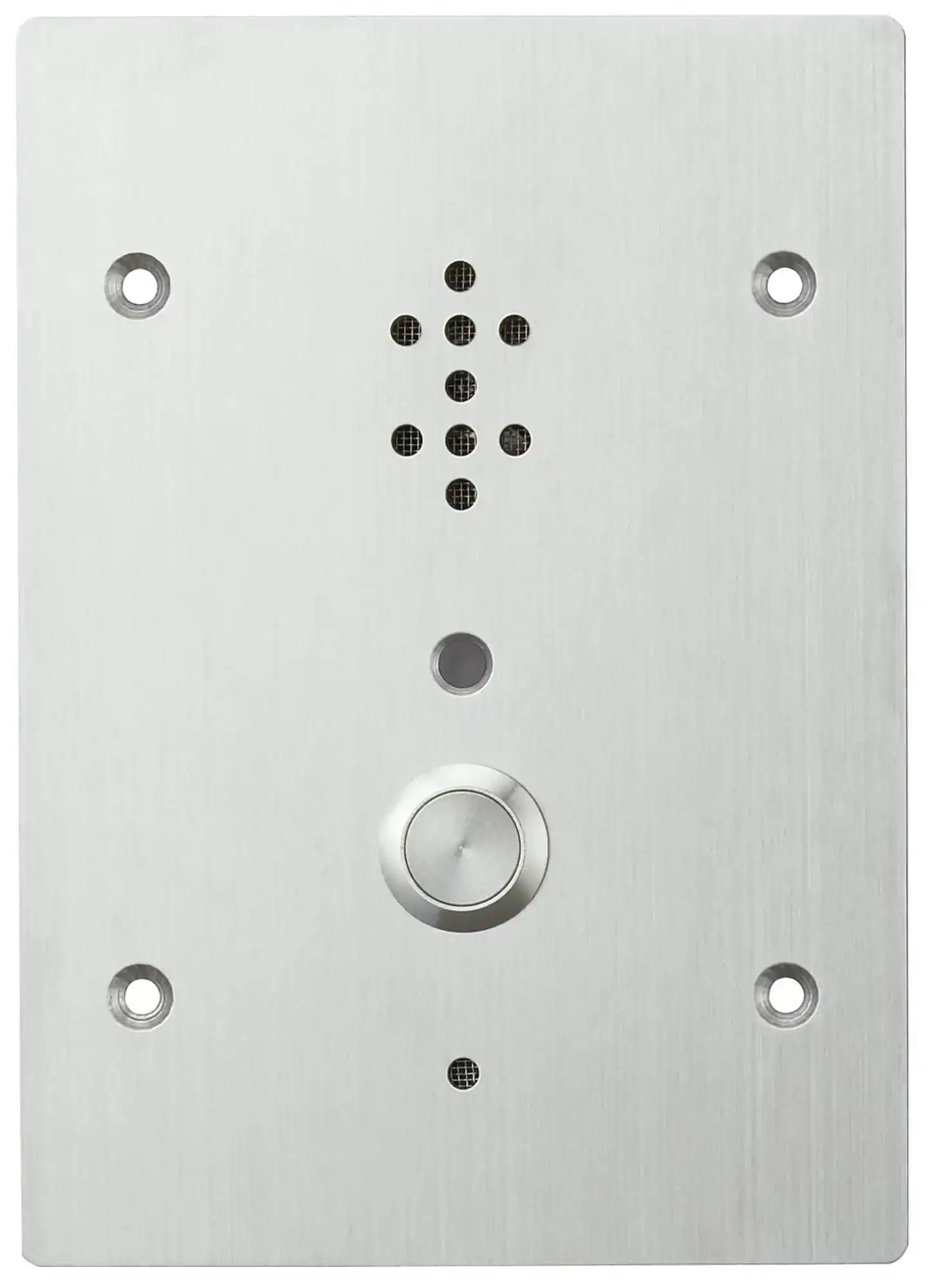

The TOA N-8050DS is an IP54-rated flush-mount or surface-mount door station for the N-8000 Series IP intercom system. It connects to an N-8000EX or N-8010EX IP intercom exchange via two-wire cable, providing hands-free full-duplex voice communication with a master station. It includes an open collector contact output for electronic door lock control and a call button with a status LED. DEAL: On Sale.

Product Description

The N-8050DS uses a 160 kbps 2-wire echo-canceller transmission system with a maximum cable run of 1,500 m (using 0.65 mm cable, loop resistance 170 ohms). A 3.5 cm cone speaker (1W, 8 ohms) and omni-directional electret condenser microphone provide clear two-way audio in the 300 Hz to 7 kHz voice range. Power is supplied entirely by the exchange (48V DC) over the two-wire connection — no local power is needed. The contact output (open collector, max 30V DC / 50 mA) triggers electronic door locks or access control relays with programmable one-shot timing from 1 to 9 seconds. The stainless steel (SUS304) hairline finish plate with metal call button is rated IP54 for dust and water protection, and IK02 equivalent for impact resistance, making it suitable for both indoor and outdoor-facing entrances. Mounts in a 3-gang electrical box or the optional TOA YC-150 back box.

Key Features

Typical Applications

The TOA N-8050DS is used in N-8000 Series intercom deployments: building entrance doors in office and commercial buildings, school and university controlled-access points, healthcare facility ward and unit entry points, residential complexes and multi-tenant buildings with central master station reception, perimeter gates and service entrances where outdoor-rated intercom hardware is needed, and any N-8000 system installation requiring a standard 1-gang door station. For multi-button 2-gang versions, see the TOA N-8052DS Q. Browse all TOA intercoms at Creation Networks.

Technical Specifications

FAQ

• Is the N-8050DS rated for outdoor use? Yes — IP54 rating provides dust resistance and protection against water splashing from any direction. For full weatherproofing, ensure panel edges are sealed at installation per TOA's installation notes.
• Does it require a local power supply? No — the unit draws 48V DC directly from the N-8000EX or N-8010EX exchange over the same two-wire cable used for audio transmission.
• How far can the cable run? Up to 1,500 m using 0.65 mm cable (loop resistance 170 ohms) from the exchange.
• Can it control a door lock? Yes — the open collector output triggers electronic locks, mag-locks, or access control relays with adjustable 1 to 9 second contact time.
• What back box is needed for flush mounting? A standard 3-gang electrical box or the optional TOA YC-150 back box; the unit includes appropriate mounting hardware for both.
• What is the difference from the N-8052DS Q? The N-8052DS Q is a 2-gang version with a larger plate, offering more mounting surface; both provide identical functionality on the N-8000 system.
