TOA Electronics Door Station Board - N-8050SB

Overview

DEAL: On Sale — The TOA N-8050SB is a printed circuit board assembly for the N-8050DS IP Intercom Door Station. It allows system integrators and custom panel fabricators to incorporate door station functionality — hands-free audio, call button input, status LED output, and relay control — into architecturally designed enclosures and operator panels without the fixed housing of the standard N-8050DS unit.

Description

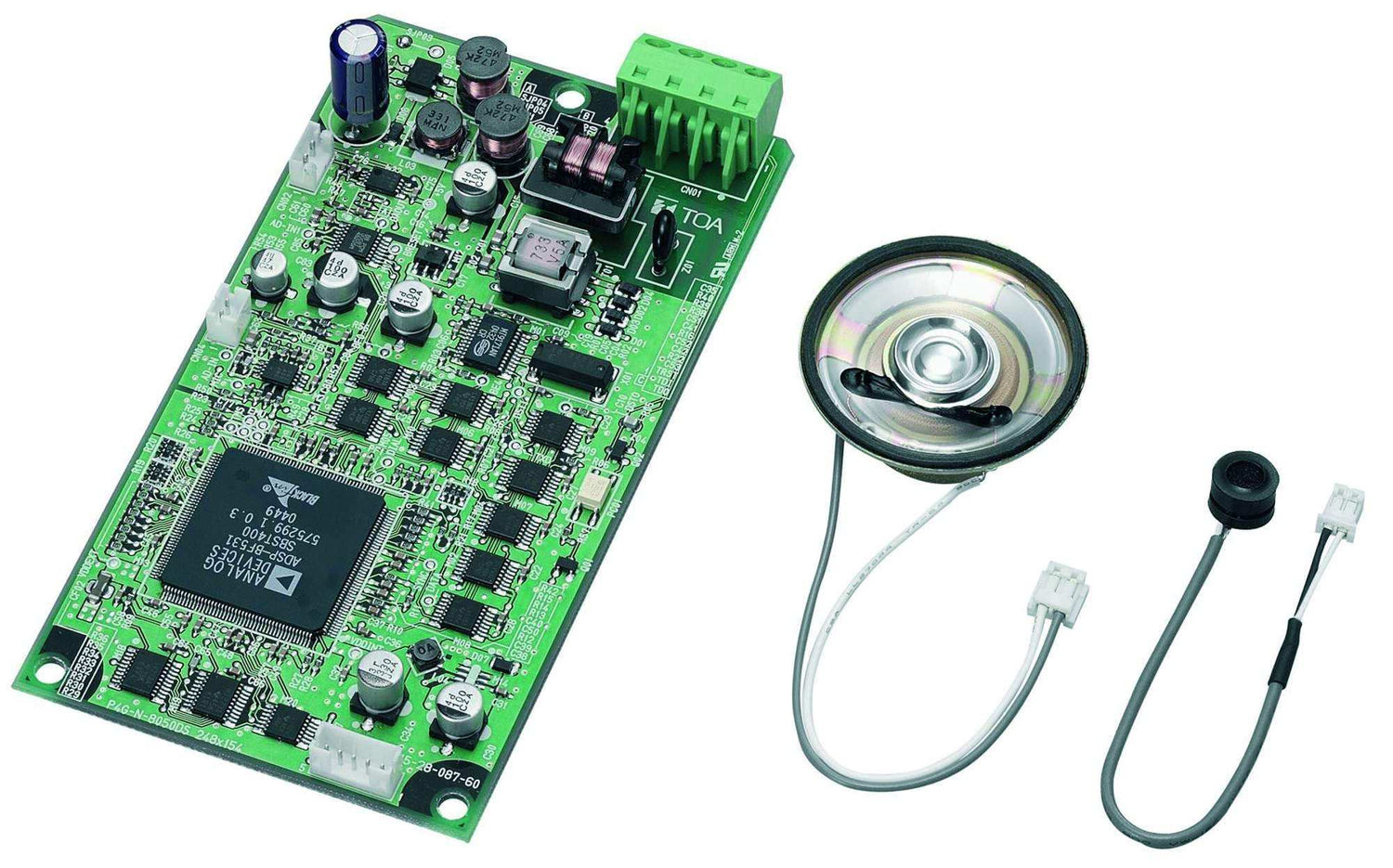

The N-8050SB connects to the IP intercom exchange via a non-polar two-pair stranded wire system using a 2-wire, 160 kbps echo canceller transmission at up to 1,500 m (using Ø0.65 mm wire, 170 Ω loop resistance). Power (48 V DC) is supplied directly from the IP intercom exchange. Included accessories are a hands-free speaker (3.5 cm, 1 W, 8 Ω) and an omni-directional electret condenser microphone, both with connection cords. An open-collector control output (max 30 V DC / 50 mA, adjustable 1–9 s one-shot) drives locking hardware or auxiliary devices. Status LED and call button connectors use polarized solderless connectors for reliable field wiring.

Key Features

• Custom installation flexibility — PCB-only form factor lets integrators build the door station into any custom panel or architectural enclosure.
• Echo-canceller transmission — 2-wire 160 kbps system provides clear hands-free conversation over distances up to 1,500 m.
• Open-collector relay output — Controls locks, gates, or auxiliary devices up to 30 V DC / 50 mA with 1–9 s one-shot timer.
• 48 V PoE-style power — Powered directly from the IP intercom exchange — no separate power supply required.
• Full accessory set included — Hands-free speaker and electret condenser microphone (both with cords) included for immediate use.

Typical Applications

The N-8050SB is suited for custom intercom panel fabrication in commercial and institutional environments where a standard enclosure is not appropriate: architect-specified door entry stations in premium office lobbies or hotels; surface-flush door stations in courthouses, correctional facilities, or schools requiring tamper-resistant custom millwork; and integrations with access control panels requiring the door station PCB to co-reside with locking hardware in a single custom enclosure.

Technical Specifications

FAQ

What is the difference between the N-8050SB and the N-8050DS?

The N-8050DS is the complete door station in a ready-to-mount enclosure. The N-8050SB is the PCB board only, allowing integration into custom-fabricated panels or enclosures.

What IP intercom exchange is required?

The N-8050SB is designed for use with the TOA N-8000 Series IP Intercom System exchange. Power (48 V DC) and communications are supplied by the exchange.

How far can the N-8050SB be installed from the exchange?

Up to 1,500 m using Ø0.65 mm stranded wire with a loop resistance of 170 Ω or less.

Is external power required for the N-8050SB?

No — the board is powered directly from the IP intercom exchange at 48 V DC; no separate power supply is needed.

What relay output can the N-8050SB control?

The open-collector output supports loads up to 30 V DC / 50 mA and can be configured for a 1 to 9-second one-shot pulse to drive electric door strikes or access control devices.
