TOA Electronics Digital mixer - M-9000M2 CU

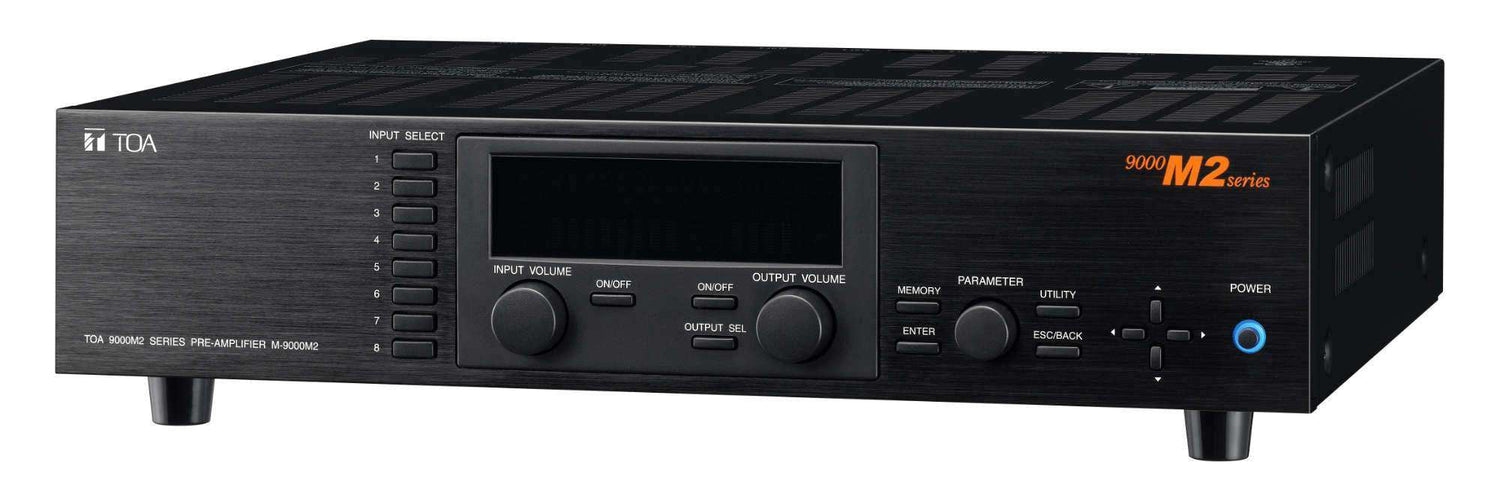

The TOA M-9000M2 CU is an 8×8 modular digital matrix mixer designed as the central processor for the TOA M-9000 Series commercial audio distribution system. It accepts up to eight input channels via plug-in modules (analog or digital), delivers two balanced stereo output buses, and provides comprehensive DSP signal processing—including 10-band parametric EQ, high-pass/low-pass filters, adjustable delay, and 32 scene memories—all within a 3U rack-mountable chassis.

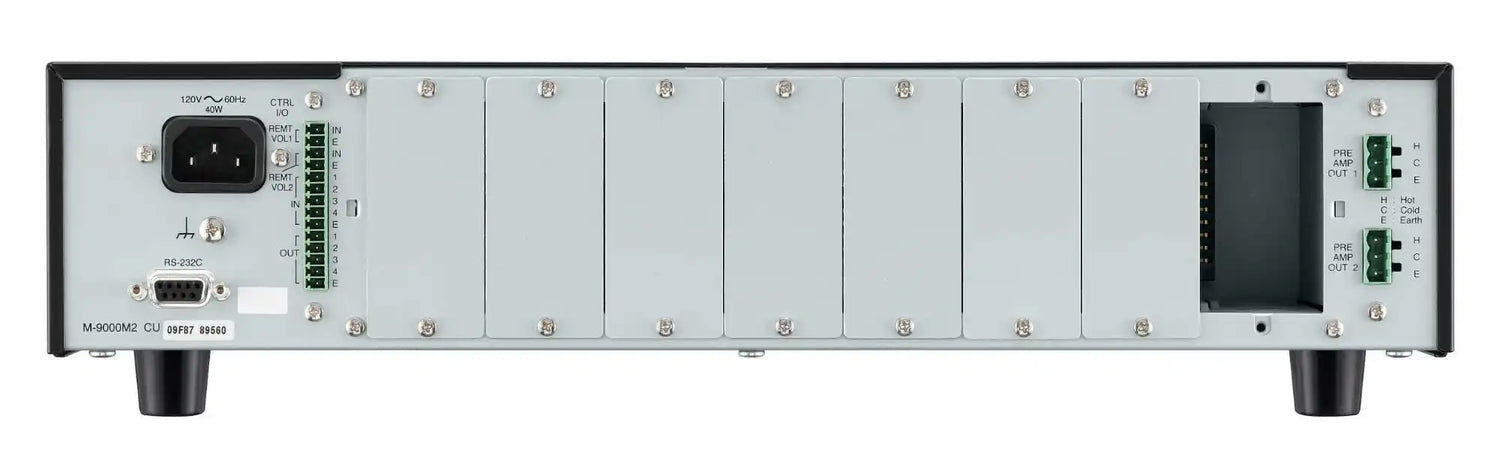

The M-9000M2 CU is built around an open-slot architecture: each of its eight input module slots accepts either an analog input module (−10 dBV unbalanced) or a 24-bit/48 kHz digital input module, giving integrators the flexibility to match the signal chain to the installation. The unit's two balanced mix outputs and two optional digital output modules (24-bit/48 kHz) ensure compatibility with a wide range of power amplifiers and digital signal processors downstream. RS-232C control with Crestron and AMX compatibility allows seamless integration into third-party control systems. Four logic control inputs and four logic control outputs support contact-closure automation, and two remote volume channels enable distributed volume control without additional hardware.
Suited for corporate boardrooms, hospitality venues, houses of worship, education facilities, and multi-zone retail environments where centralized audio routing and recall of programmed scenes is essential to consistent system performance.
Key Features
| Feature | Benefit |
|---|---|
| 8-Channel Modular Input Architecture | Mix analog and digital inputs in any combination using plug-in modules, adapting to diverse signal sources |
| 2 Balanced Mix Outputs | Drive power amplifiers or zone processors directly with low-impedance, noise-resistant balanced signals |
| 10-Band Parametric EQ per Input Channel | Precisely tune frequency response to compensate for room acoustics or source colorations |
| HPF/LPF at −12 dB/octave | Eliminate unwanted low-end rumble or high-frequency noise without external filtering hardware |
| 0–40 ms Adjustable Delay | Time-align speakers in distributed systems to eliminate slap echo and phase cancellation |
| 32 Scene Memories | Recall entire mix configurations instantly, ideal for multi-use rooms and repeatable events |
| RS-232C Control (Crestron / AMX Compatible) | Integrates directly with industry-standard room control systems for single-button operation |
| 4 Logic Inputs + 4 Logic Outputs | Automate system functions via contact-closure events (e.g., mute on PA, source switching) |
| 2 Remote Volume Channels | Allow zone-level volume adjustment from remote panels without additional hardware |
| 90 dB S/N Ratio | Delivers clean, low-noise audio across all zones and signal levels |
Typical Applications
The TOA M-9000M2 CU is specified for corporate conference centers and boardrooms requiring scene-recall automation, houses of worship with multiple input sources and zone outputs, hospitality venues distributing background music and paging to multiple zones, education facilities needing room-combining and DSP-corrected audio, and multi-zone retail or healthcare installations where centralized RS-232C control is mandatory.
Technical Specifications
| Specification | Details |
|---|---|
| Power Supply | 120 V AC, 60 Hz |
| Power Consumption | 40 W |
| Audio Input Channels (max) | 8 (via plug-in modules) |
| Analog Input Module Level | −10 dBV (unbalanced) |
| Analog Input Module Impedance | 10 kΩ |
| Digital Input Module | 24-bit / 48 kHz |
| Mix Outputs | 2 × balanced, 0 dBV, 600 Ω |
| MIX Output Module Level | −14 dBV, 330 Ω |
| Digital Output Module | 24-bit / 48 kHz |
| Frequency Response | 20 Hz – 20 kHz, +1 / −3 dB |
| Total Harmonic Distortion | 0.008% |
| Signal-to-Noise Ratio | 90 dB (volume minimum) |
| Crosstalk | ≥64 dB at 20 kHz |
| Bass / Treble Tone Control | ±12 dB |
| Parametric EQ | 10-band, ±12 dB, Q 0.3–5 |
| High-Pass / Low-Pass Filter | −12 dB/octave |
| Signal Delay | 0–40 ms adjustable |
| Scene Memories | 32 |
| Control Interface | RS-232C (Crestron / AMX compatible) |
| Logic Control Inputs | 4 |
| Logic Control Outputs | 4 |
| Remote Volume Channels | 2 |
| Dimensions | 420 × 107.6 × 353 mm (16.5" × 4.24" × 13.9") |
| Weight | 6 kg (13.2 lb) |
| Operating Temperature | −10 °C to +40 °C (14 °F to 104 °F) |
FAQ
- How many input channels does the M-9000M2 CU support? Up to 8 channels via plug-in input modules. Each slot can accept an analog (−10 dBV unbalanced) or 24-bit/48 kHz digital input module.
- Is it compatible with Crestron or AMX control systems? Yes — the RS-232C control interface is explicitly compatible with both Crestron and AMX, allowing full parameter control from third-party room automation systems.
- Can scenes be stored and recalled? Yes — 32 scene memories can store complete mix configurations for instant recall, ideal for multi-use or event-driven spaces.
- What control outputs are available for room automation? The unit provides 4 logic control inputs and 4 logic control outputs for contact-closure automation, plus 2 remote volume channels for distributed zone-level adjustment.
- Does it support digital audio I/O? Yes — optional plug-in modules provide 24-bit/48 kHz digital inputs and outputs, compatible with digital amplifiers and processors in the M-9000 signal chain.
