TOA Electronics Digital Matrix Mixer - M-8080D-AM
Product Overview
The TOA M-8080D-AM is an 8x8 digital matrix mixer that combines music, paging, discussion, and zone management into a single commercial AV platform. With comprehensive onboard DSP and flexible analog and digital routing, the M-8080D-AM serves as the audio brain of distributed sound systems in boardrooms, training rooms, and multi-zone commercial facilities. Configured through intuitive PC software, it scales cleanly from standalone installations to larger networked designs.
Product Description
The M-8080D 8x8 digital matrix mixer is a dedicated solution for music, paging, discussion, and zone management in commercial audio applications. It provides eight analog inputs and eight analog outputs, plus four digital inputs and four digital outputs over the RD port, so signals can be freely routed and processed across zones. A full DSP suite covers 5-band EQ, compressor, ducker, gain and phase control, automatic microphone mixing, feedback suppression, gate, and delay, giving integrators everything needed to tune a room without external processors. The mixer delivers a 20 Hz to 20 kHz frequency response and supplies switchable +48 V phantom power on inputs 1 through 8 for condenser microphones. A front-panel LCD displays device name, firmware version, ID, current preset, and communication status, while LED meters indicate input, output, and status at a glance. The rack-mount chassis runs on 100 to 240 V AC and integrates into commercial racks with its 1U form factor. For larger systems, the M-8080D is available with a Dante module that significantly expands I/O. Browse the full range of TOA mixers and processors at Creation Networks.
Key Features
- 8x8 Matrix Routing — Eight analog inputs and outputs plus four digital in/out over the RD port enable flexible multi-zone routing.
- Comprehensive DSP — Onboard 5-band EQ, compressor, ducker, auto mixer, feedback suppression, gate, and delay tune each zone without extra hardware.
- Switchable Phantom Power — +48 V phantom power on inputs 1 through 8 supports professional condenser microphones.
- PC-Based Configuration — Intuitive system control software simplifies setup, presets, and ongoing management.

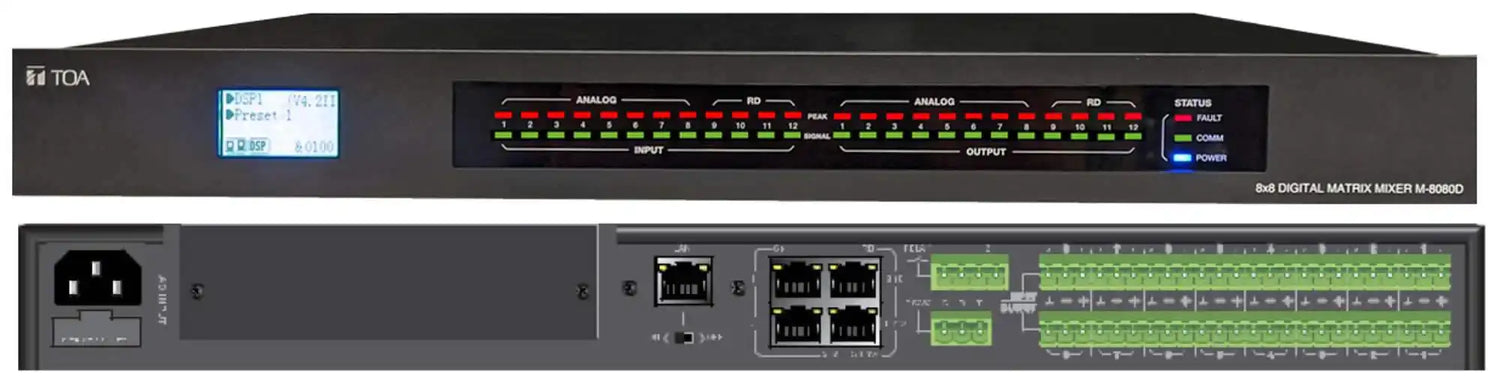

- Front-Panel Monitoring — An LCD and LED meters display preset, status, and input/output levels for quick verification.
- Dante Expansion Option — An available Dante module significantly expands networked I/O for larger installations.
Typical Applications
- Boardrooms
- Conference rooms
- Training rooms
- Multi-purpose rooms
- Commercial meeting spaces
Technical Specifications
| Specification | Detail |
|---|---|
| Type | 8x8 digital matrix mixer |
| Analog I/O | 8 analog inputs, 8 analog outputs |
| Digital I/O | 4 digital inputs, 4 digital outputs (RD port) |
| DSP Functions | 5-band EQ, compressor, ducker, gain/phase, auto mixer, feedback suppression, gate, delay |
| Frequency Response | 20 Hz - 20 kHz |
| Phantom Power | +48 V DC, switchable, inputs 1 - 8 |
| Power | 100 - 240 V AC, 50/60 Hz |
| Dimensions (W x H x D) | 483 x 44.2 x 259 mm (19.02" x 1.74" x 10.18") |
| Weight | 4.2 kg |
| Finish | Panel: aluminium, black; case: surface-treated steel, black |
| Expansion | Optional Dante module |
Frequently Asked Questions
What is the M-8080D-AM used for?
It is an 8x8 digital matrix mixer for music, paging, discussion, and zone management in commercial audio systems, acting as the central processor for a distributed installation.
Does it support Dante?
Yes. The M-8080D is available with an optional Dante module that significantly expands its networked I/O capabilities.
How is it configured?
Configuration is handled through intuitive PC software, where you set routing, DSP, and presets and monitor communication status.
Can I connect condenser microphones?
Yes. Inputs 1 through 8 provide switchable +48 V phantom power for professional condenser microphones.
Does it fit a standard rack?
Yes. The 1U chassis measures 483 mm wide and mounts in a standard 19-inch equipment rack.
Is a warranty included?
TOA commercial electronics are covered by the manufacturer's standard warranty; contact Creation Networks for current terms and integration support.
