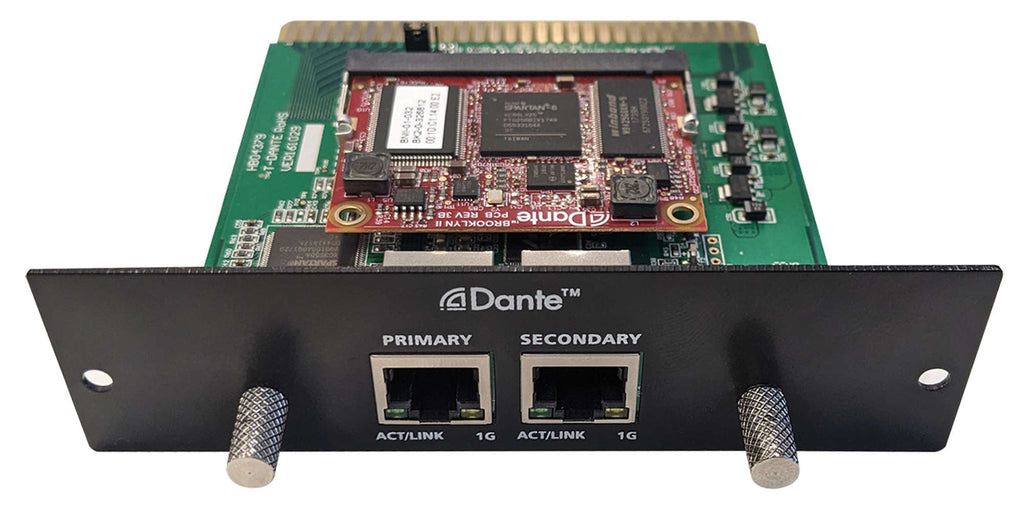

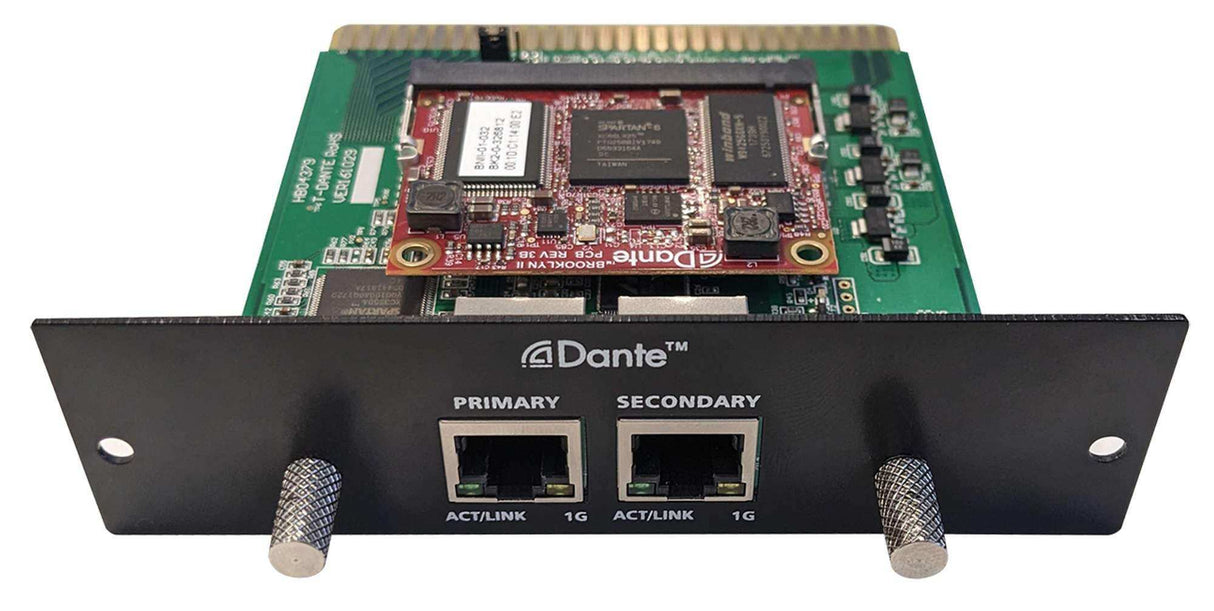

TOA Electronics Dante module - M-800DT-AM

Product Overview

The TOA M-800DT is a Dante audio-over-Ethernet module that links up to sixteen M-8080D digital matrix mixer systems into one networked platform. It adds eight Dante input and eight Dante output channels, extending the M-8080D into the wider Dante ecosystem for distributed commercial audio. Low-latency networking lets large venues route audio between rooms and racks over standard IP infrastructure. It is a scalable building block for paging, background music, and zone management across a facility.

Product Description

The M-800DT provides a straightforward audio-over-Ethernet connection between M-8080D matrix mixers, adding 8 Dante inputs and 8 Dante outputs to each host. Two Ethernet ports support flexible network topologies, including Dante redundancy for mission-critical systems. By linking up to sixteen M-8080D units as a single system, it scales to as many as 192 inputs and outputs for large multi-zone installations. The module works with any IT network that meets the Dante network specification, so it integrates into existing commercial infrastructure. It is powered at 5 V DC directly from the host M-8080D, requiring no separate supply. A network router is required to set up the M-8080D, and all connections to the RD ports should use shielded Category 5 (or higher) cable with shielded connectors. Explore the full TOA M-8080D matrix system at Creation Networks.

Key Features

• 8x8 Dante channels — Adds eight Dante inputs and eight outputs to each M-8080D matrix mixer.
• Links up to 16 units — Connects multiple M-8080D systems to operate as one networked platform.
• Scales to 192 I/O — Supports large multi-zone installations across a facility.
• Dual Ethernet ports — Enables flexible topologies and Dante redundancy support.
• Low-latency audio over IP — Keeps audio synchronized across rooms and racks.
• Standards-based — Works with any IT network meeting the Dante network specification.
• Host-powered — Runs on 5 V DC from the M-8080D with no separate supply.

Typical Applications

• Commercial meeting space
• Conference room
• Multi-purpose room
• Training room
• Auditorium
• Government space

Technical Specifications

Frequently Asked Questions

What does the M-800DT add to an M-8080D system? It adds 8 Dante input and 8 Dante output channels and lets up to sixteen M-8080D units operate together over the network.

How many total channels can a system reach? Linking up to sixteen units scales the system to as many as 192 inputs and outputs.

Does it support network redundancy? Yes. Two Ethernet ports support flexible topologies and Dante redundant networking.

How is it powered? The module is powered at 5 V DC directly from the host M-8080D, with no separate supply needed.

What cabling is required? Use shielded Category 5 or higher cable with shielded connectors, and a network router to set up the M-8080D.

What warranty and support apply? The module carries the TOA manufacturer warranty; contact Creation Networks for warranty, stock, and Dante system-design support.
