TOA Electronics HY-CM7SET Ceiling Bracket Kit for HX-7B Speaker System

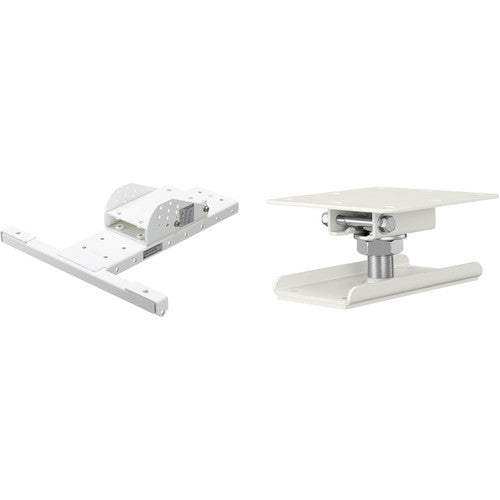

The TOA HY-CM7SET is a ceiling mounting bracket set for the HX-7 Series variable dispersion array speaker system. Designed to support the HX-7B or HX-7W speaker in overhead installations, this hardware set provides a complete solution for ceiling suspension — allowing secure positioning and angle adjustment for optimal coverage in large venues. The bracket set is engineered for permanent professional AV installations where the HX-7 must be mounted overhead rather than on a wall or ground stand.
The HY-CM7SET integrates with TOA's broader HX-7 mounting ecosystem, which includes the HY-WM7B and HY-WM7W wall mounting brackets and the HY-VM7 vertical rigging bracket. A black-finish version, the HY-CM7BSET, is available for installations using the HX-7B black speaker. Installation must be carried out by a qualified AV integrator in accordance with TOA's installation documentation and applicable local structural codes.
Key Features
| Feature | Benefit |
|---|---|
| Designed for HX-7 series speakers | Engineered specifically to support the HX-7B/HX-7W variable dispersion array for secure overhead mounting |
| Complete ceiling mount set | Includes all required hardware components for ceiling installation of the HX-7 |
| Professional installation grade | Built to permanently and safely support the HX-7 speaker in fixed overhead positions |
| Works with HX-7B and HX-7W | Compatible with both black and white HX-7 speaker finish variants |
| Integrates with HX-7 mounting ecosystem | Complements HY-WM7 wall brackets, HY-VM7 vertical brackets, and HY-C0801 ceiling bracket for complete installation flexibility |
Typical Applications
The HY-CM7SET is specified for installations where the TOA HX-7 variable dispersion speaker must be ceiling-mounted in large-format venues, including houses of worship, auditoriums, convention centers, ballrooms, multi-purpose halls, sports arenas, and performing arts facilities. Ceiling mounting is typically chosen when column or wall placement is unavailable, when coverage requires a high mounting position, or when architectural sightlines must be preserved.
Technical Specifications
| Specification | Details |
|---|---|
| Compatible Speaker | TOA HX-7B, HX-7W (Variable Dispersion Array) |
| Mounting Type | Ceiling suspension bracket set |
| Finish | Standard (white/silver) — black version available: HY-CM7BSET |
| Related Accessories | Wall brackets: HY-WM7B / HY-WM7W; Vertical bracket: HY-VM7B / HY-VM7W; Ceiling bracket: HY-C0801 |
Note: Load ratings, dimensions, and hardware inventory list for the HY-CM7SET are not published in the available TOA datasheet. Contact Creation Networks for installation documentation.
FAQ
- Which speakers is the HY-CM7SET compatible with? It is designed specifically for the TOA HX-7B and HX-7W variable dispersion array speaker systems.

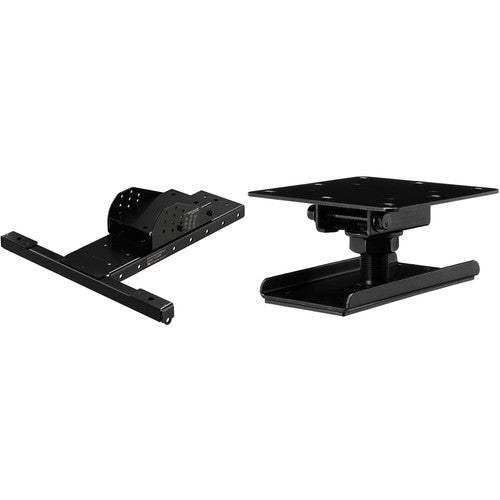

- What is the difference between the HY-CM7SET and HY-CM7BSET? The HY-CM7SET is the standard (white/silver) finish version; the HY-CM7BSET is the black finish version for use with the HX-7B black speaker.
- Is professional installation required? Yes. Ceiling suspension of speakers requires structural assessment and professional installation to ensure safety. TOA recommends installation by a qualified AV integrator.
- What other mounting options are available for the HX-7? The HX-7 mounting family includes wall brackets (HY-WM7B/HY-WM7W), vertical rigging brackets (HY-VM7B/HY-VM7W), and a separate ceiling bracket (HY-C0801) for different installation configurations.
