TOA HY-CW1WP – Weatherproof Ceiling Mount for HX-5 Series Speakers

Product Overview

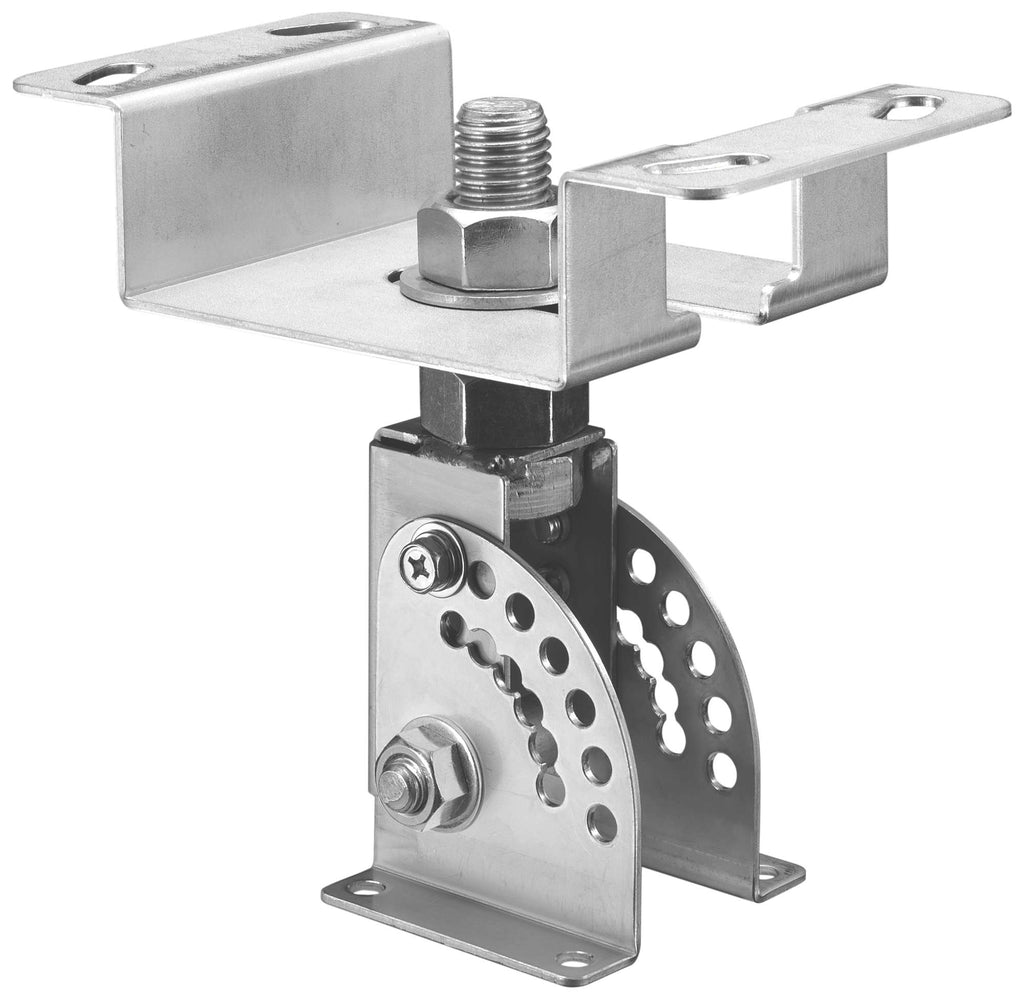

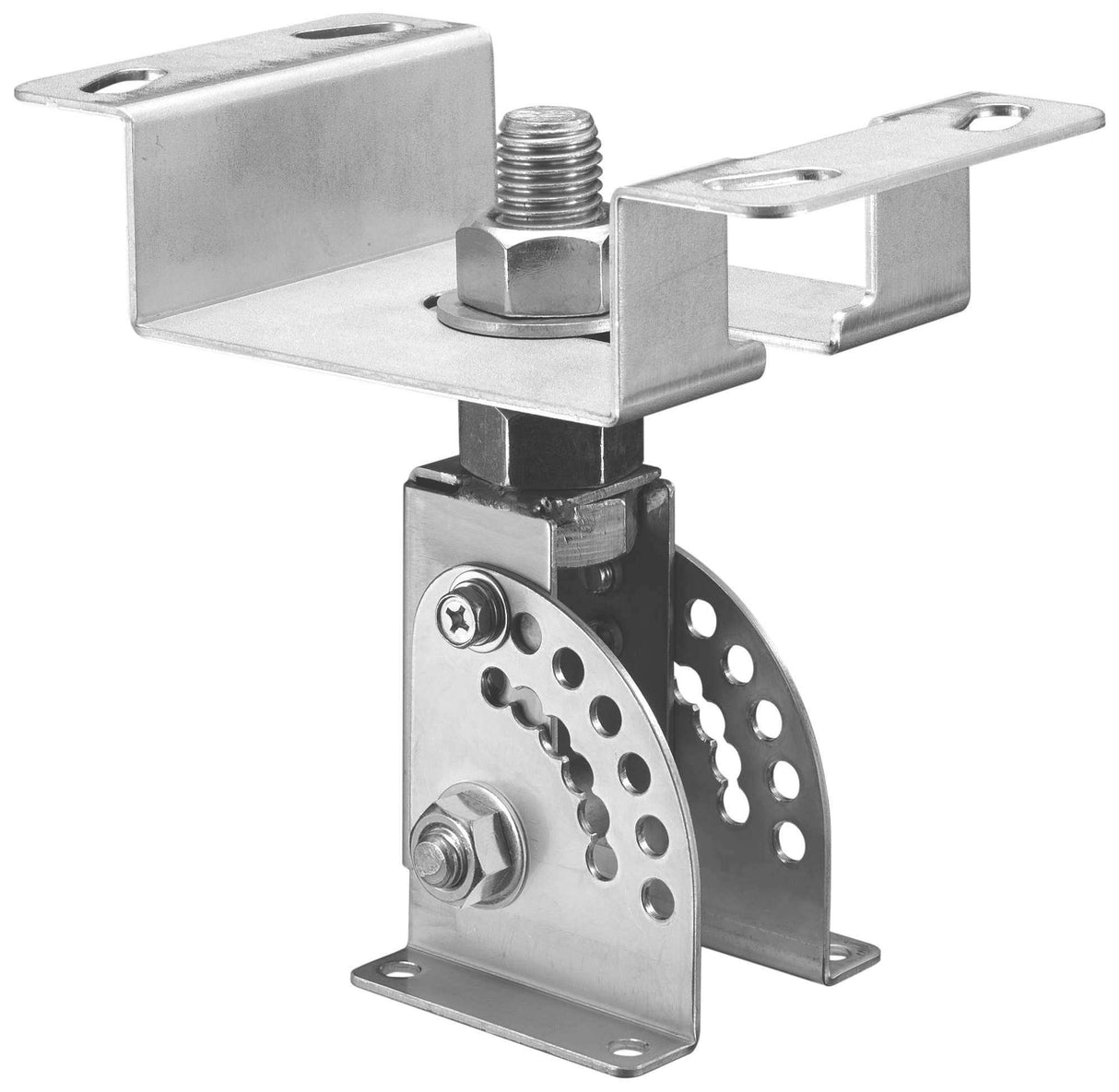

The TOA HY-CW1WP is a weatherproof ceiling mounting bracket designed exclusively for TOA HX-5 Series column array speaker systems, enabling ceiling suspension in outdoor and semi-outdoor PA installations including covered outdoor venues, transit platforms, sports facilities, and building entrance canopies. The bracket supports 360° horizontal rotation and substantial vertical tilt adjustment — up to 82.5° when the speaker is suspended horizontally — providing integrators with the angular flexibility needed to precisely direct the HX-5's coverage pattern toward the intended listening area regardless of ceiling geometry or mounting position.

Product Description

The HY-CW1WP's weatherproof construction resists moisture, UV exposure, and temperature extremes typical of outdoor covered ceiling installations, ensuring reliable mechanical support of HX-5 Series speakers over the speaker system's full service life. The 360° horizontal rotation allows installers to orient the HX-5's coverage dispersion precisely toward the listening area after the bracket is secured to the ceiling structure, without repositioning the mounting hardware. Vertical tilt range varies with the HX-5 directivity mode: up to 82.5° when the speaker is suspended horizontally, and up to 67.5° (in 60° mode) or 75° (in 15°, 30°, or 45° mode) when suspended vertically. This angular flexibility accommodates ceiling heights and geometries common in transit halls, covered stadiums, arena concourses, and open-air hospitality structures. Order the HY-CW1WP and related TOA HX-5 Series accessories at creationnetworks.net.

Key Features

• 360° Horizontal Rotation — Full horizontal rotation after ceiling mounting allows coverage direction to be set independently of the bracket orientation, simplifying installation planning.
• Wide Vertical Tilt Range — Up to 82.5° vertical tilt (horizontal suspension) and up to 75° (vertical suspension) provides coverage angle flexibility for a wide range of ceiling heights and room geometries.
• Weatherproof Construction — Designed for outdoor and semi-outdoor use; resists moisture, UV, and temperature variation for covered outdoor venue and transit PA installations.
• Directivity Mode-Adaptive Tilt — Tilt range adapts based on HX-5 Series directivity mode (15°, 30°, 45°, or 60°), ensuring the correct mechanical limit for each acoustic configuration.
• HX-5 Series Exclusive Fit — Purpose-built for TOA HX-5 Series column array speakers for a precise, secure mechanical connection without field modification.
