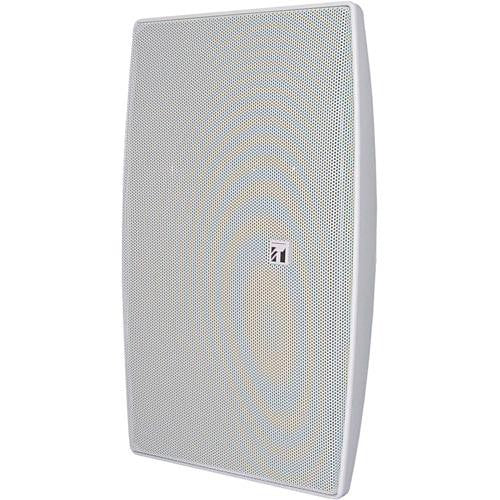

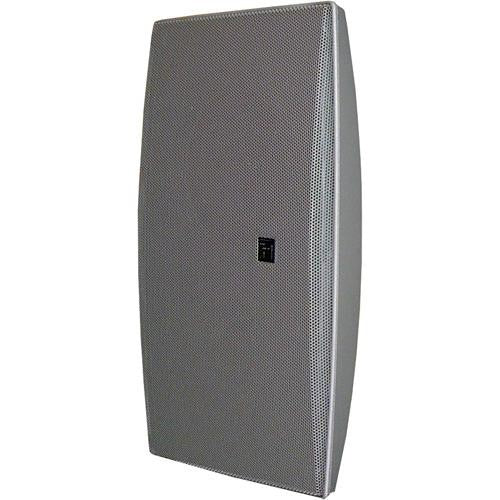

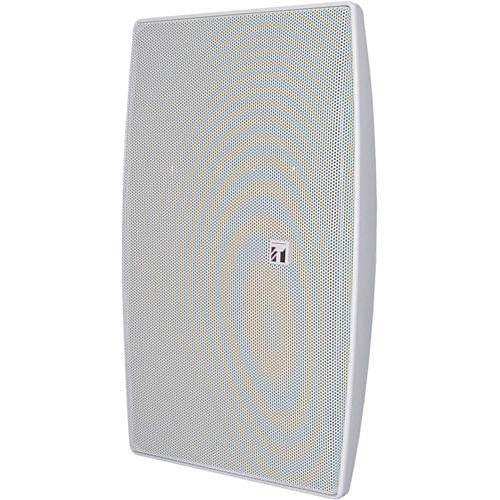

TOA BS-1034 – 2-Way Wall-Mount Box Speaker

Product Overview

The TOA BS-1034 is a 2-way wall-mount box speaker for 70 V and 100 V distributed audio in commercial spaces. It pairs a 5-inch cone woofer with a dome high-frequency driver to deliver clear speech and music from a compact wall enclosure. As a TOA wall-mount box speaker, the BS-1034 is built for paging, background music, and announcements where a tidy surface-mount speaker is needed. A rotary impedance selector and plug-in receptacle make it quick to tap and install.

The BS-1034 is engineered for the everyday workhorse role in commercial sound: even, intelligible coverage from a wall-mounted point. Its 2-way design adds a balanced dome tweeter to the 5-inch cone woofer, extending response to 20 kHz so both speech and background music sound clear rather than muffled. The speaker operates on constant-voltage 70 V or 100 V lines and offers multiple power taps selected with a front rotary switch, letting an installer balance loudness across a room without rewiring. A supplied plug-in speaker receptacle simplifies the connection and speeds installation across a large speaker count. The enclosure is molded from fire-resistant HIPS resin rated to UL 94 V-0, and the steel grille protects the drivers, both important for code-compliant commercial interiors. At 90 dB sensitivity, the BS-1034 produces useful output from modest amplifier power, which helps system budgets. Its compact, off-white form and golden-ratio proportions blend into offices, retail, corridors, and similar spaces. For contractors building distributed paging and music systems, the BS-1034 is a dependable, easy-to-deploy box speaker.

Key Features

• 2-Way Clarity — Combines a 5-inch cone woofer with a dome tweeter for clear speech and music to 20 kHz.
• 70/100 V Operation — Runs on constant-voltage distribution lines for easy multi-speaker commercial systems.
• Rotary Tap Selector — Sets the power tap from the front so installers balance room loudness without rewiring.
• Plug-In Receptacle — Supplied speaker receptacle speeds connection and installation across many units.
• Fire-Resistant Build — HIPS resin enclosure rated UL 94 V-0 with a steel grille suits code-compliant interiors.
• Efficient Output — 90 dB sensitivity produces useful level from modest amplifier power.

Technical Specifications

Specifications are per the TOA datasheet and subject to change without notice.
