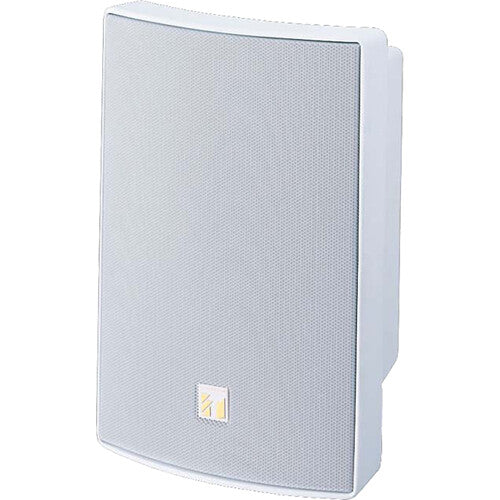

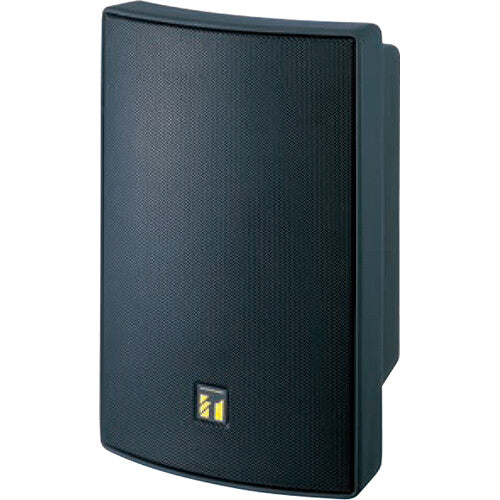

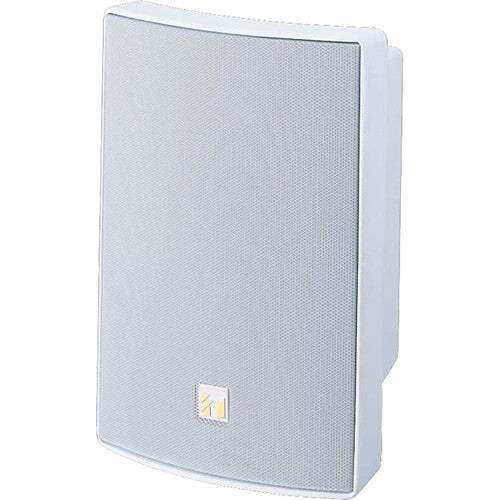

TOA BS-1030W – 30W Indoor/Outdoor 2-Way Compact Speaker

Product Overview

The TOA BS-1030W is a 2-way compact loudspeaker designed for both indoor and outdoor commercial audio applications. A 4.72" woofer paired with a 1" dome tweeter and a 4 kHz passive crossover delivers a frequency range of 100 Hz–8 kHz, providing clean reproduction of speech paging and background music in small to mid-size zones. IPX4 splash protection enables installation in covered outdoor locations, poolside areas, retail entries, and any interior space subject to moisture exposure.

The BS-1030W operates on 70V and 100V constant-voltage lines with a multi-tap transformer offering 30W, 20W, 15W, 10W, and 5W settings, plus an 8 Ω direct bypass tap for low-impedance operation in shorter distributed runs. With 90 dB sensitivity and a compact 196 × 290 × 150 mm footprint, it suits applications where ceiling speaker installation is impractical and full-size wall speakers are too large.

Product Description

The white-finish ABS enclosure mounts to walls or columns with included hardware and weighs 2.5 kg. The 4.72" woofer handles bass and midrange content while the 1" dome tweeter maintains high-frequency intelligibility for speech announcements and music. The 4 kHz passive crossover is tuned to complement both drivers, reducing the phase and distortion artifacts that can compromise speech clarity in wide-range single-driver systems. The 8 Ω bypass tap provides direct connection for small residential or low-impedance commercial configurations.

Key Features

• 2-way driver system (4.72" woofer + 1" dome tweeter) — Separate woofer and tweeter with 4 kHz passive crossover for improved speech intelligibility and music quality over single-driver designs.
• IPX4 splash protection — Suitable for covered outdoor areas, pool decks, retail entries, and moist interior environments.
• 70V/100V multi-tap (30/20/15/10/5W) — Five power tap settings for precise distributed circuit balancing.
• 8 Ω bypass tap — Enables low-impedance direct wiring in short distributed runs or residential systems.
• 90 dB sensitivity — Efficient output from lower amplifier power, reducing per-zone amplifier cost.
• Compact enclosure (196 × 290 × 150 mm, 2.5 kg) — Unobtrusive wall-mount footprint for areas where ceiling speakers or large wall speakers will not fit.

Technical Specifications

Source: TOA Electronics, BS-1030W product page (toaelectronics.com).
