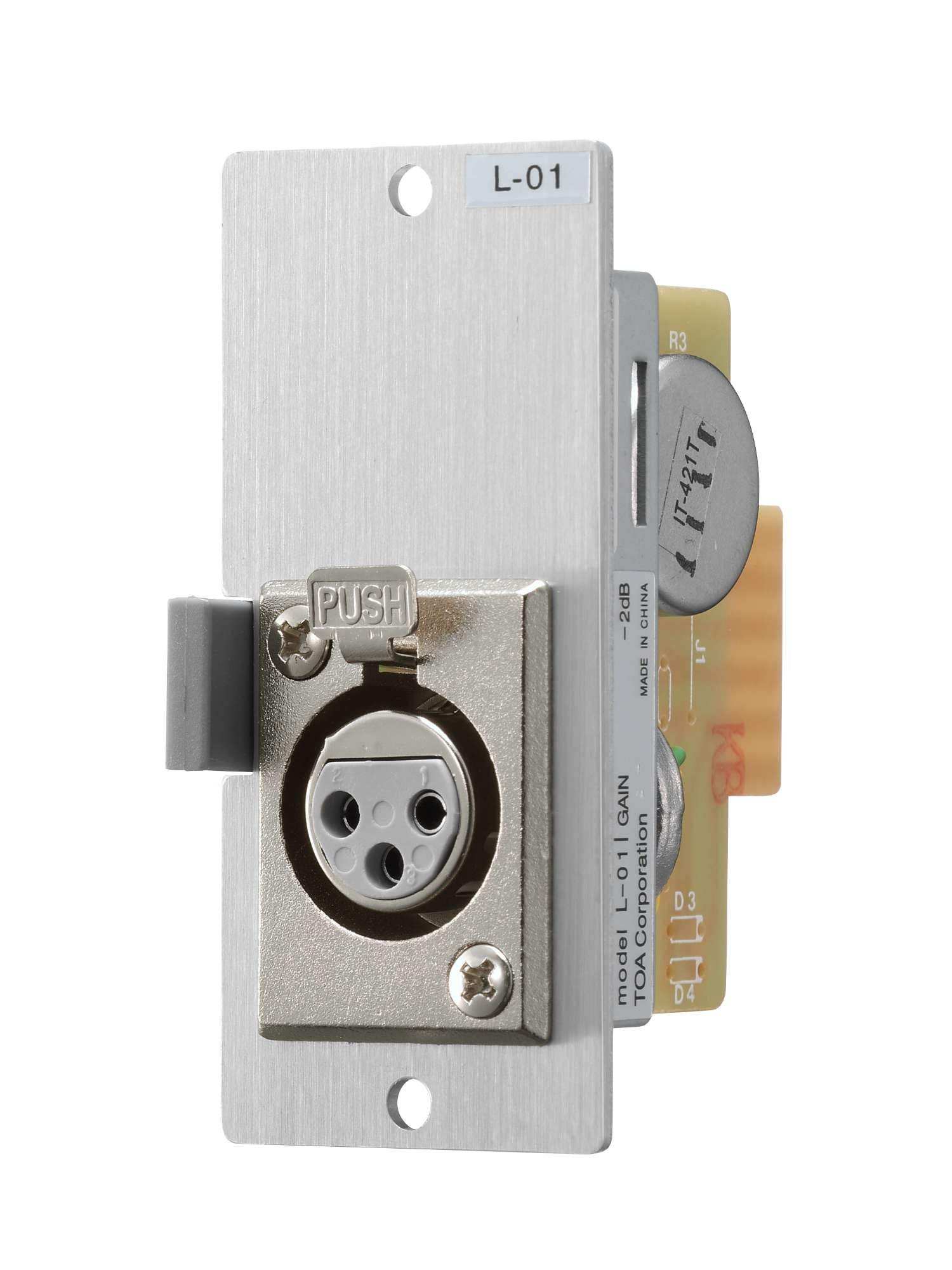

TOA L-01F – Balanced Line Input Module, XLR Female, 900 Series

Product Overview

The TOA L-01F is a transformer-balanced line matching input module for the TOA 900 Series modular amplifier and matrix mixer platform, featuring a female XLR input connector for direct connection to balanced professional audio sources. The XLR input format differentiates the L-01F from terminal-block input modules like the L-01ST, making it the preferred choice when system design calls for standard XLR patch points within a TOA rack installation. Commercial AV integrators designing paging, background music, or distributed audio systems that terminate balanced sources at XLR connectors will find the L-01F provides the right interface without external adapters. The 600-ohm transformer provides common-mode rejection and impedance matching consistent with professional audio balanced-line standards.

Product Description

The L-01F plugs into any available module slot in a compatible TOA 900 Series mixer-amplifier or matrix mixer chassis, adding a transformer-balanced 600-ohm line input terminated in a female XLR connector. XLR connectivity is common in commercial AV installations where balanced sources—such as digital signal processors, audio interfaces, or network audio adapters—terminate their outputs with XLR male connectors, making a simple XLR cable run from source to amplifier possible without any connector conversion. The transformer's balanced input stage provides strong immunity to electromagnetic interference induced on long cable runs through commercial buildings, important in multi-zone distributed audio systems where source cables route through electrical conduits alongside AC wiring. Installers who prefer XLR termination at the amplifier chassis rather than at a patch panel will find the L-01F simplifies system topology and reduces termination labor. For TOA 900 Series systems deployed in corporate conference rooms, all-hands rooms, or training environments with professionally balanced signal sources, the L-01F is the correct line input module.

Key Features

• Transformer-Balanced 600-Ohm Line Input, XLR Female — Provides a professionally balanced line input with standard female XLR connectivity for direct cable connection to DSPs, audio interfaces, and line-level sources.
• 900 Series Plug-In Compatible — Installs directly in available module slots in TOA 900 Series mixer-amplifiers and matrix mixers for straightforward input expansion.
• XLR Panel Interface — XLR connector on the module face provides a panel-mount input point in the amplifier chassis, eliminating the need for external XLR breakout panels in many system designs.
• Transformer Isolation — Transformer-balanced input rejects common-mode noise and breaks ground loops from commercial building power infrastructure.
• Professional Audio Standard Compatibility — 600-ohm balanced impedance matches the output standard of professional AV sources including DSPs, broadcast equipment, and audio network adapters.
