TOA U-03S – Stereo Terminal-Block Aux Module
Product Overview

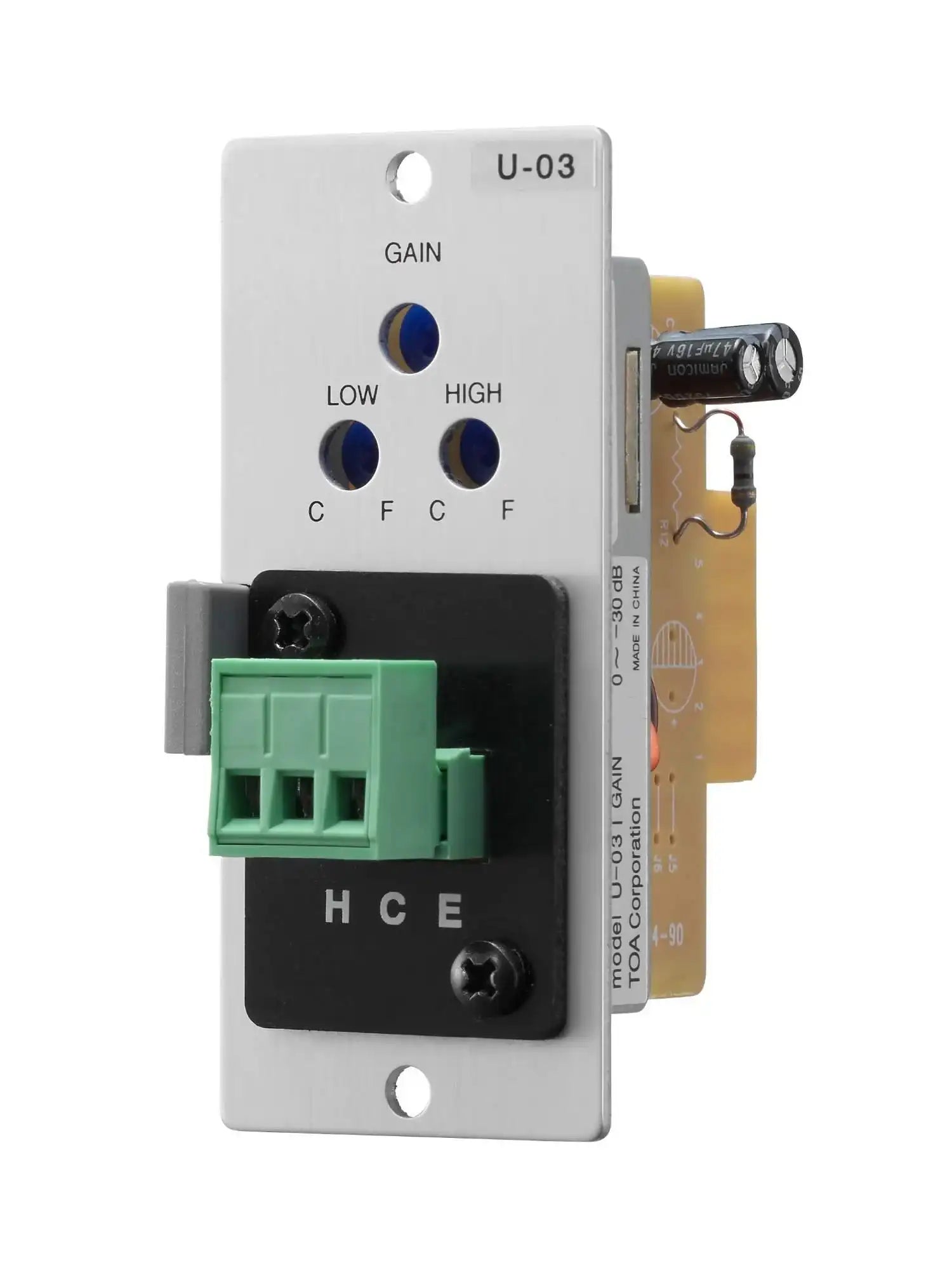

The TOA U-03S is a plug-in auxiliary line input module with a removable terminal block and passive stereo summing for TOA 900 Series mixer-amplifiers. It is the terminal-block counterpart to the RCA-equipped U-03R, suited to permanent installs where pre-terminated, screw-down wiring is preferred. High-cut and low-cut filters allow tone shaping at the input.
Product Description
The U-03S accepts a stereo line source on a removable terminal block and passively sums it to the mono bus used by most commercial background-music and paging systems. The terminal-block connection is the practical choice for fixed installs, where conductors are landed on screw terminals and dressed for long-term reliability rather than relying on a plug. It installs into a TOA 900 Series host slot and is powered by 24 V DC from the main frame. The module is intended for adjacent line-level sources within roughly 15 feet, such as media players and tuners. Onboard high-cut and low-cut filters give the installer tone control at the input. Input sensitivity is adjustable across a wide range to set the source to the system reference level. Frequency response runs 20 Hz to 20 kHz with low noise and distortion. For hard-wired stereo sources feeding a mono distributed system, the U-03S is the matched aux input.
Key Features
- Removable terminal block — The pluggable screw terminal supports pre-terminated, reliable fixed-install wiring.
- Stereo passive summing — The module sums a stereo source to mono for distributed audio.
- High-cut and low-cut filters — Onboard tone filters let installers shape the source at the input.
- Adjustable sensitivity — A wide input range sets the source to the system reference level.
- Frame-powered design — The module draws 24 V DC from the host, so no external supply is required.
- 900 Series fit — The module installs in standard TOA 900 Series host slots.
Technical Specifications
| Power Supply | 24 VDC |
| Current Consumption | Less than 8 mA |
| Input Sensitivity | 100 - 3,600 mV (adjustable, rated output 100 mV) |
| High Cut Filter (10 kHz) | -7 to -13 dB |
| Low Cut Filter (100 Hz) | -5 to -15 dB |
| Noise Output | Less than 10 μV |
| Frequency Response | 20 Hz - 20 kHz |
| Distortion | Less than 0.05 % |
| Input Connector | 3P terminal block |
| Output Connector | 6P card edge-connector |
| Dimensions | 35 (W) x 78 (H) x 88 (D) mm |
| Weight | 50 g |
Specifications per the TOA datasheet.
