TOA Electronics Audio Interface with USB and Bluetooth - MW-41BT-AM

Product Overview

The TOA MW-41BT-AM is an in-wall audio interface panel that consolidates microphone, auxiliary, USB, and Bluetooth 5.0 inputs into a single flush-mount unit for installed sound systems. With a mono balanced output and 24 V phantom power, it connects directly to TOA or compatible amplifiers and mixers, providing a clean, space-saving audio source panel for commercial AV installations.

Product Description

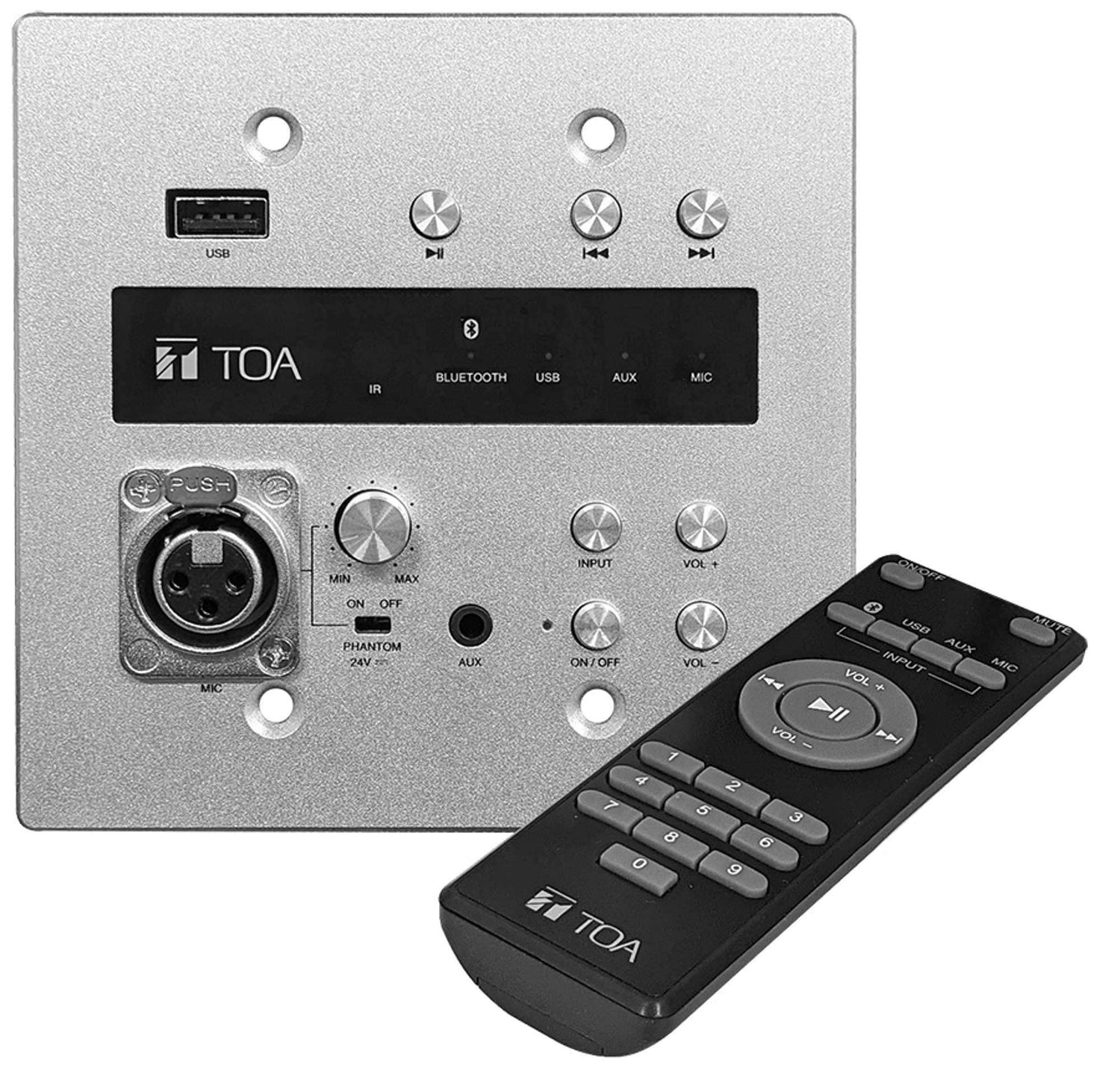

The MW-41BT-AM fits a standard 2-gang electrical box and presents four source inputs at the wall: an XLR microphone input with switchable 24 V phantom power, a 3.5 mm stereo aux input, a USB-A port for MP3/WAV playback from flash drives (up to 32 GB), and Bluetooth 5.0 for wireless audio streaming. A single mono balanced output on an RJ45 connector feeds the system amplifier or matrix mixer. An input selection button cycles through active sources, while independent volume controls and a dedicated mic level control provide front-panel adjustment.

When the microphone input is active, it automatically ducks all other inputs by 20 dB — providing a simple priority function without external processing. The unit is powered by an included AC adapter (100–240 V universal) and ships with a remote control, RJ45 conversion socket, and box mounting screws.

Key Features

• 4-source input consolidation — Mic (XLR), Aux (3.5 mm), USB, and Bluetooth 5.0 in a single in-wall panel
• 24 V phantom power — Switchable phantom power for condenser microphones on the XLR input
• Mic priority ducking — Mic input automatically ducks other sources by 20 dB for clear announcements
• USB audio playback — Plays MP3 and WAV files from USB flash drives up to 32 GB (FAT16/FAT32)
• Bluetooth 5.0 — Wireless audio streaming up to 10 m range
• Balanced mono output — RJ45 balanced line output for noise-free connection to installed amplifiers
• 2-gang flush mount — Space-saving in-wall design with aluminum/acrylic face plate

Typical Applications

• Conference rooms and meeting spaces requiring wall-mounted mic, Bluetooth, and USB audio inputs
• Classrooms and training rooms with instructor microphone and media playback at the front wall
• Retail stores, restaurants, and hospitality venues needing simple in-wall source selection
• Corporate offices with installed PA or BGM systems requiring centralized input control
• Houses of worship and community facilities needing flexible mic and media source access

Technical Specifications

Frequently Asked Questions

• What inputs does the MW-41BT-AM support? Four inputs: XLR microphone with phantom power, 3.5 mm aux/line, USB-A for flash drive audio playback, and Bluetooth 5.0 wireless streaming.
• Does the mic input have phantom power? Yes — 24 V phantom power is switchable on the XLR mic input for condenser microphones.
• What happens when someone speaks into the mic? The mic priority function automatically ducks all other audio inputs by 20 dB, ensuring announcements are heard clearly over background music or USB playback.
• What USB audio formats are supported? MP3 and WAV files on FAT16 or FAT32 formatted drives up to 32 GB capacity.
• What is the output connection type? A single mono balanced output on an RJ45 connector. An RJ45 conversion socket is included to adapt to standard balanced audio connections.
• Does the MW-41BT-AM need external power? Yes — it requires the included AC power adapter (100–240 V, 50/60 Hz universal input). Power consumption is 3 W.
