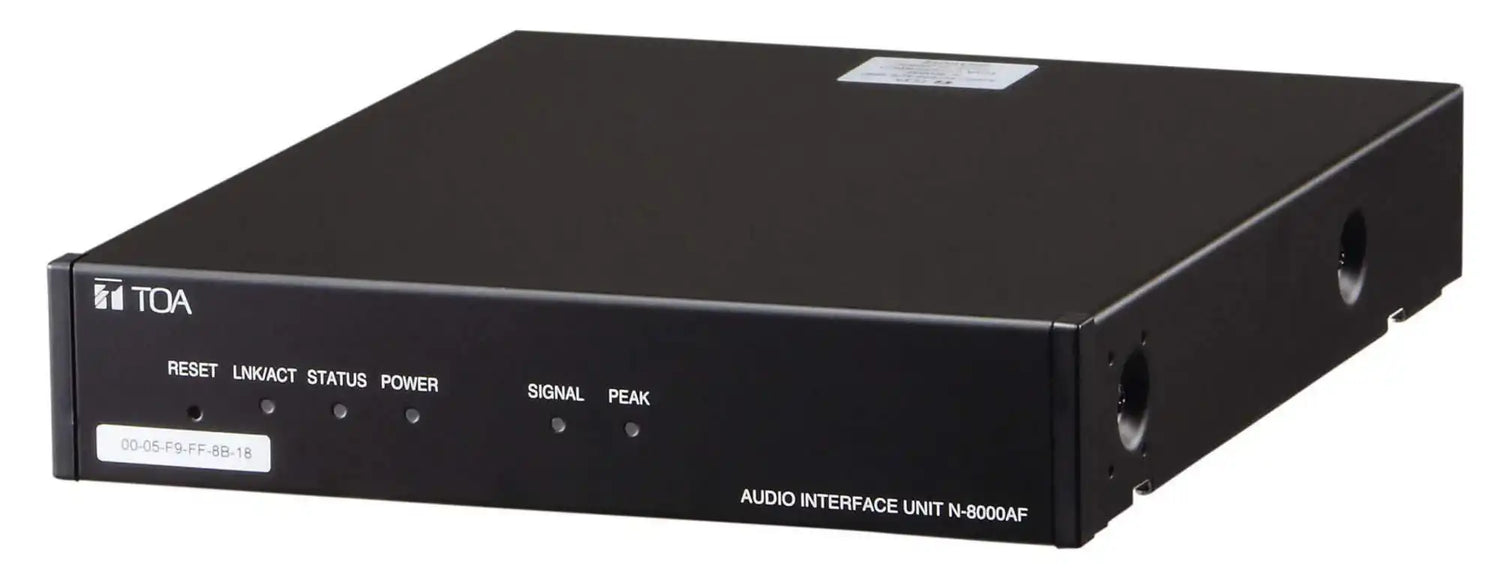

TOA Electronics Audio Interface Unit - N-8000AF CU

Product Overview

The TOA N-8000AF CU is an audio interface unit for the N-8000 packet intercom system, extending an IP-network intercom with analog audio I/O and contact control. Connected to the LAN, it enables conversation recording, scheduled chime broadcasts, and paging across the intercom network. Eight contact inputs and eight contact outputs let it tie the intercom system into sensors, indicators, and building equipment.

Product Description

The N-8000AF CU adds flexible interfacing to a TOA N-8000 IP intercom system using packet audio technology. Its analog audio input and output allow external sources and destinations to join the network audio path, while eight contact inputs and eight contact outputs provide the control connections needed for integrated paging and automation. Functions include recording of conversations, chime broadcast at regular intervals for time signals, and paging broadcast to connected stations. The unit installs in a standard equipment rack and operates from an AC mains supply, making it a practical interface point for larger intercom and paging deployments. Because it is part of the N-8000 platform, it works alongside master stations, exchanges, and other interface units across the IP network. For related intercom interfaces, browse the TOA N-8000 intercom selection at Creation Networks.

Key Features

• Analog audio interface — Adds an analog input and output to the N-8000 IP intercom audio path.
• Eight contact inputs — Accept triggers from sensors, switches, and building systems.
• Eight contact outputs — Drive indicators and external equipment as part of intercom and paging logic.
• Conversation recording — Enables capture of intercom conversations over the network.
• Scheduled chime broadcast — Sends time-signal chimes at regular intervals.
• Paging broadcast — Distributes announcements to connected intercom stations.
• N-8000 platform integration — Works with master stations, exchanges, and Multi Interface units across the IP network.
• Rack-mount chassis — Fits standard equipment racks for clean installation.

Typical Applications

• Government space
• Commercial meeting space
• Multi-purpose room

Technical Specifications

Frequently Asked Questions

What system does the N-8000AF CU work with? It is an interface unit for the TOA N-8000 packet intercom system and connects to the same IP network as the system's master stations and exchanges.

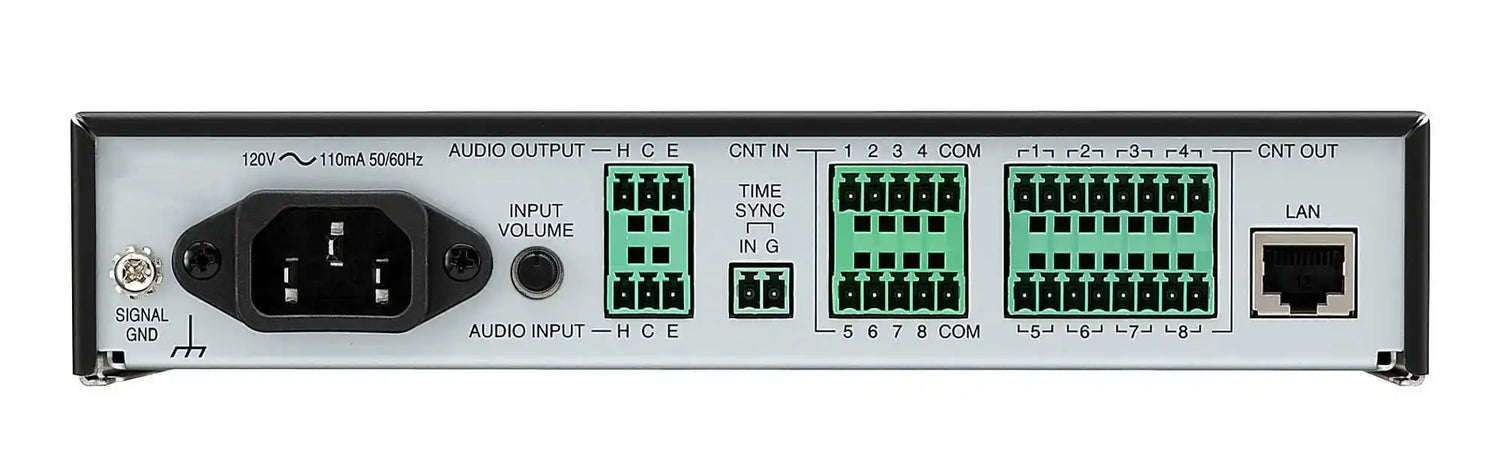

What audio connections does it provide? It offers one analog audio input and one analog audio output to bring external sources and destinations into the intercom audio path.

How many contact connections does it have? The unit provides eight contact inputs and eight contact outputs for integration with sensors, indicators, and building equipment.

What functions does it add to the system? It enables conversation recording, scheduled chime broadcasts for time signals, and paging broadcast to connected stations.

How is it powered and mounted? It operates from a 220–240 V AC supply and installs in a standard equipment rack.

Is warranty and support available? Yes. TOA products carry the manufacturer's warranty; contact Creation Networks for warranty details and installation support.
