TOA Electronics Audio Input Output Module

Overview

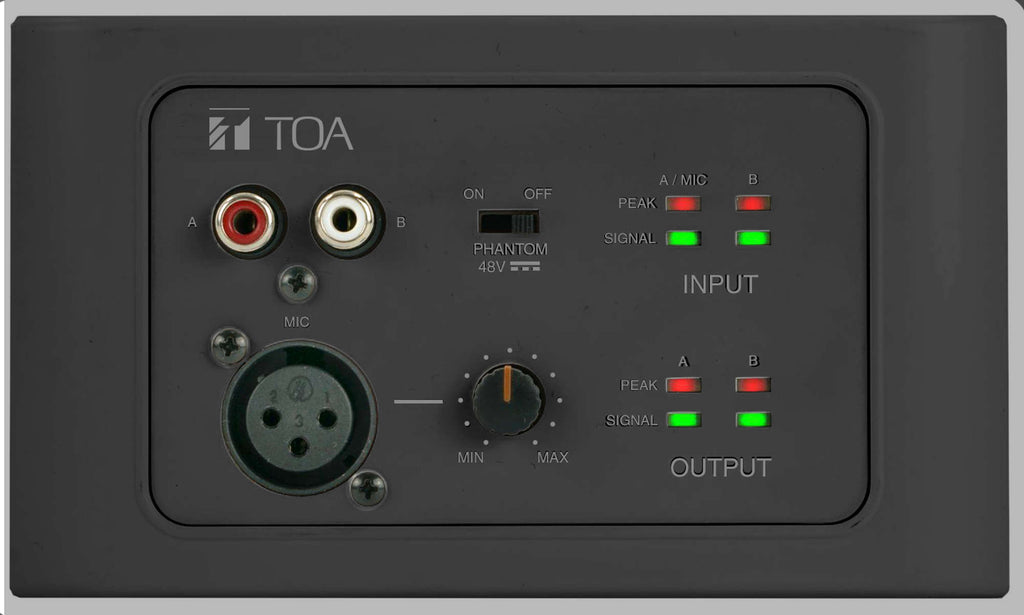

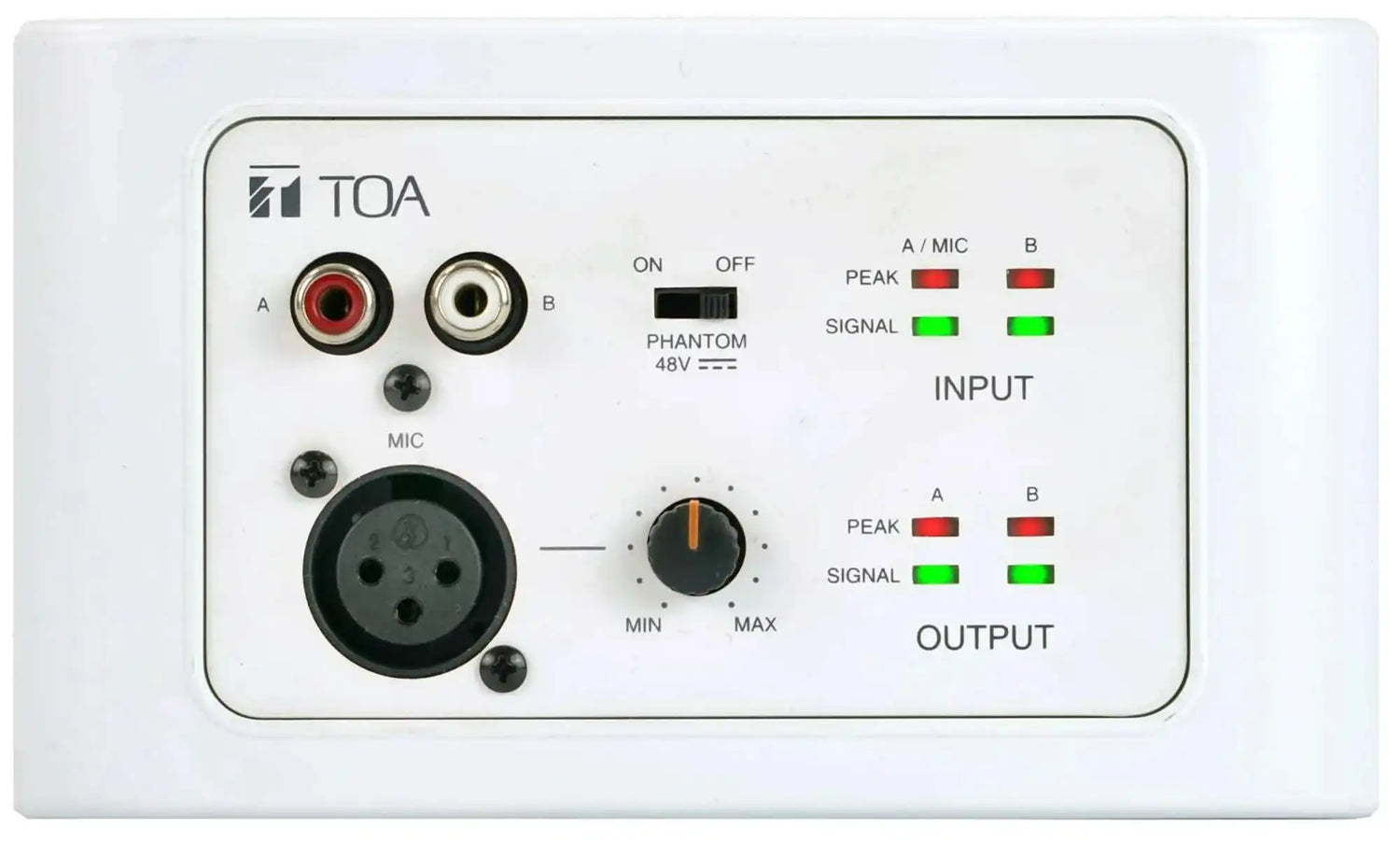

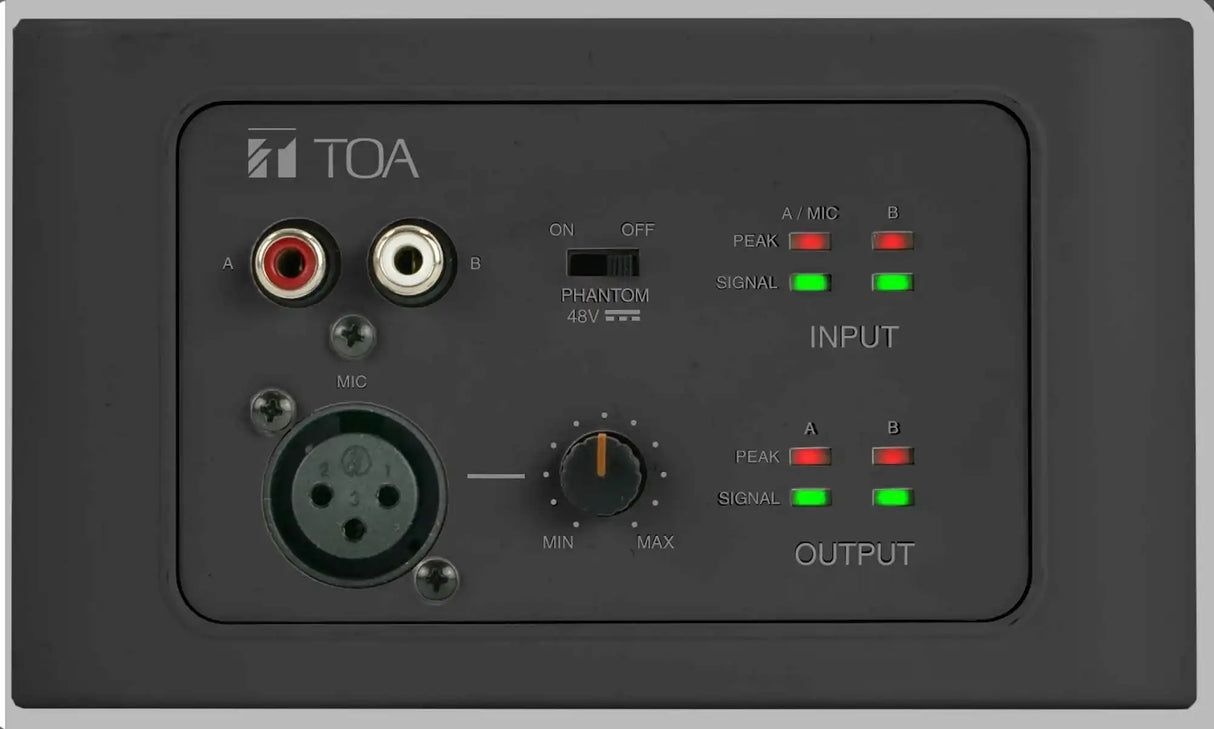

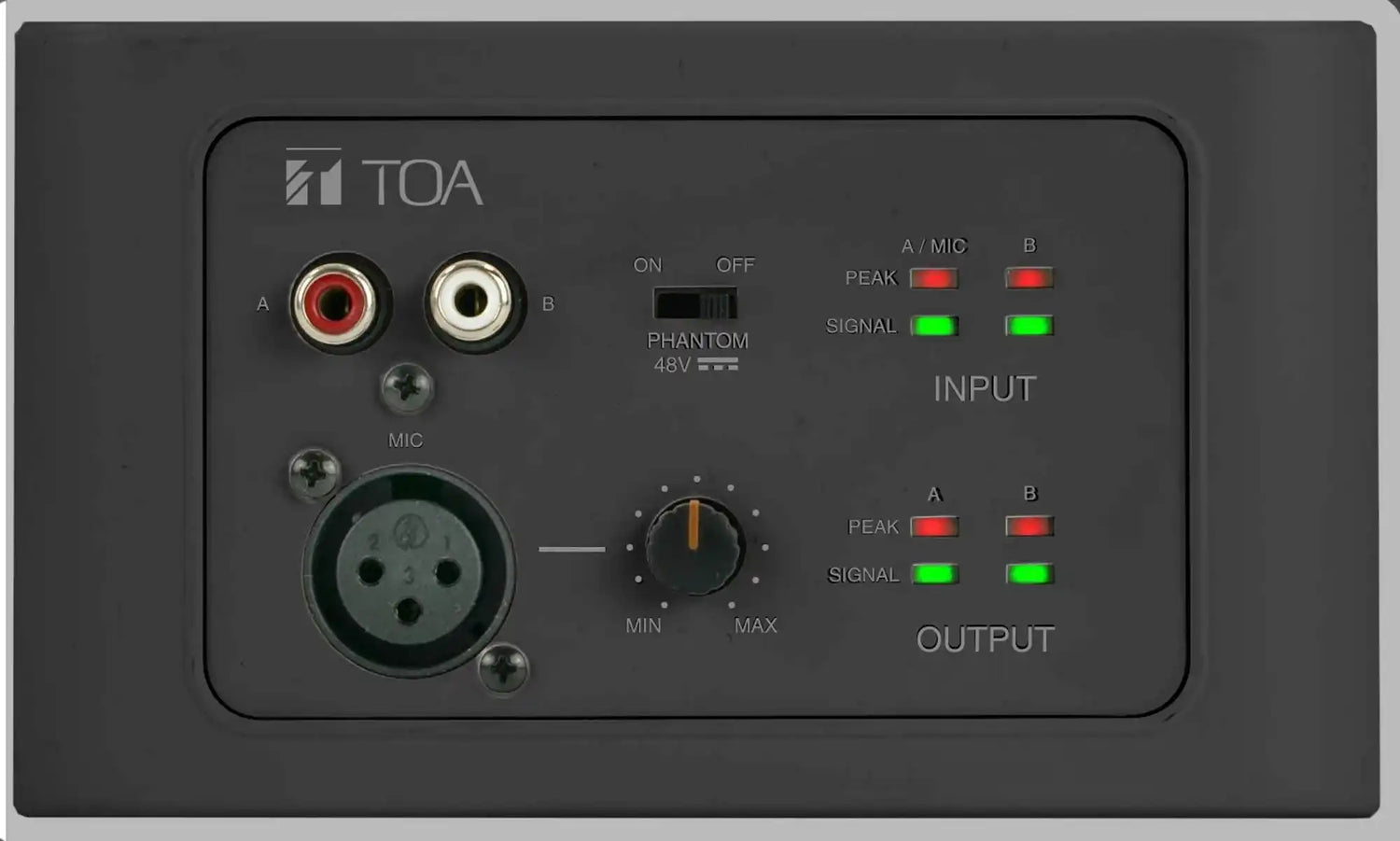

The TOA M-822IO is a remote audio input/output panel designed exclusively for the M-8080D Digital Matrix Mixer. It extends the M-8080D's I/O reach over CAT5e cabling, providing two analog inputs and two analog outputs — with built-in AES3 A/D and D/A conversion — at the point of need anywhere on the network.

Description

The M-822IO connects to the M-8080D via a shielded CAT5e (or better) RD port, drawing power directly from the network cable without requiring a local power supply. Built-in A/D and D/A converters process digital audio AES3 signals to and from the M-8080D with no additional interface hardware. The two analog inputs accept MIC or stereo line signals, and phantom power is available for condenser microphones. This makes the M-822IO ideal for distributing audio sources and local microphone inputs throughout a building — conference rooms, breakout spaces, or production facilities — while keeping the M-8080D central to the installation. A network router is required for M-8080D system setup; all RD port connections must use shielded Category 5e cables or higher.

Key Features

• 2 analog inputs (MIC or stereo line) with built-in A/D converter
• 2 analog outputs with built-in D/A converter
• AES3 digital audio interface to/from M-8080D
• Direct PoE-style power via CAT5e RD port — no local power supply required
• Phantom power for condenser microphone inputs
• Up to 100 m of shielded CAT5e cable between M-822IO and M-8080D
• Designed exclusively for the TOA M-8080D Digital Matrix Mixer

Typical Applications

• Remote audio I/O for M-8080D installations in conference rooms and breakout spaces
• Distributed microphone and line input pickup for corporate AV systems
• Local monitor or zone output extension in performance and production facilities
• Multi-floor or multi-wing M-8080D audio distribution

Technical Specifications

FAQ

Does the M-822IO work with matrix mixers other than the M-8080D?
No. The M-822IO is designed exclusively for the TOA M-8080D Digital Matrix Mixer and is not compatible with other systems.

Is a local power supply needed at the M-822IO installation point?
No. The M-822IO draws power directly from the CAT5e RD port cable, eliminating the need for a local AC outlet.

What cable type is required?
Shielded Category 5e cable (or higher) with shielded connectors is required for all RD port connections. A network router is also required for M-8080D system setup.

Can the M-822IO accept condenser microphones?
Yes. Phantom power is available on the analog inputs, supporting condenser microphone operation directly at the M-822IO.
