TOA BG-235 CU – 35W Mixer Amplifier with 70V/100V Output
Overview
DEAL: On Sale — The TOA BG-235 CU is a 35-watt commercial mixer amplifier designed for background music and public address applications. With three input channels, 4Ω / 25V / 70V output modes, and front-accessible bass and treble EQ, it provides a compact, versatile solution for small-to-medium installed sound systems in retail, hospitality, and commercial environments.
Description

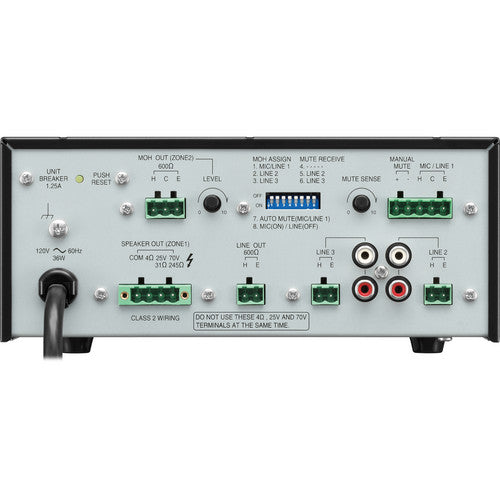

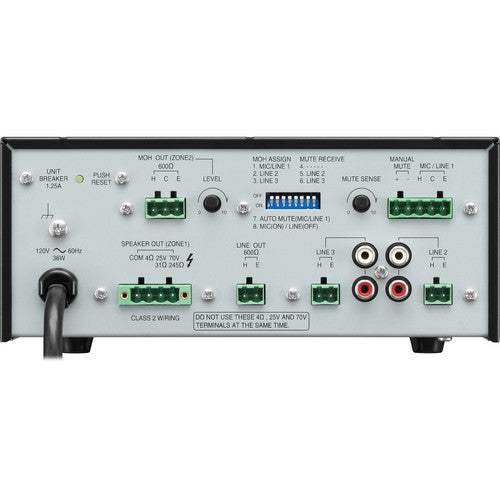

The BG-235 CU outputs 35 watts RMS and supports 4Ω direct-drive as well as 25V and 70V constant-voltage distribution, allowing it to drive either standard low-impedance speakers or distributed ceiling speaker systems on a 25V or 70V line. Three channels of inputs include microphone/line inputs and two RCA line inputs, connected via terminal block and RCA jacks respectively. Recessed bass and treble tone controls enable quick EQ adjustments without an external equalizer. The chassis is designed for surface or rack-compatible mounting in a commercial AV furniture or equipment rack.
Key Features
- 35W RMS output — Suitable for small-to-medium commercial BGM and PA installations at consistent output levels.
- 4Ω / 25V / 70V output modes — Flexible output topology drives both low-impedance speakers and 70V/25V distributed speaker lines from a single amplifier.
- 3 input channels — Mic/line inputs via terminal block and dual RCA line inputs for source flexibility.

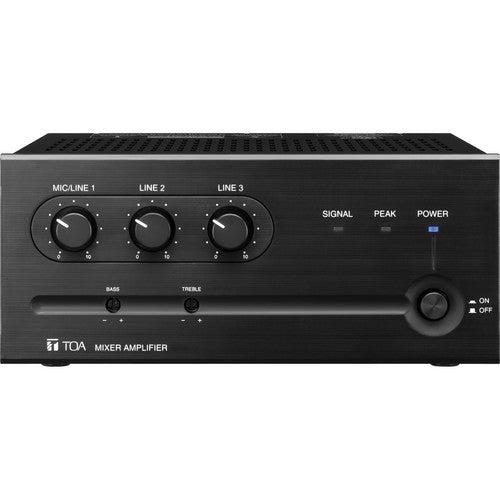

- Recessed bass and treble controls — Front-accessible tone EQ recessed to prevent accidental adjustment in public-facing installations.
- Terminal block connectivity — Screw-terminal speaker and input connections for reliable, permanent wiring in installed systems.
Technical Specifications
| Specification | Detail |
|---|---|
| Output Power | 35W RMS |
| Output Impedance / Voltage | 4Ω, 25V, 70V |
| Input Channels | 3 |
| Mic/Line Inputs | Terminal block |
| Line Inputs | 2 × RCA |
| Speaker Output | Terminal block |
| Tone Controls | Bass, Treble (recessed) |
