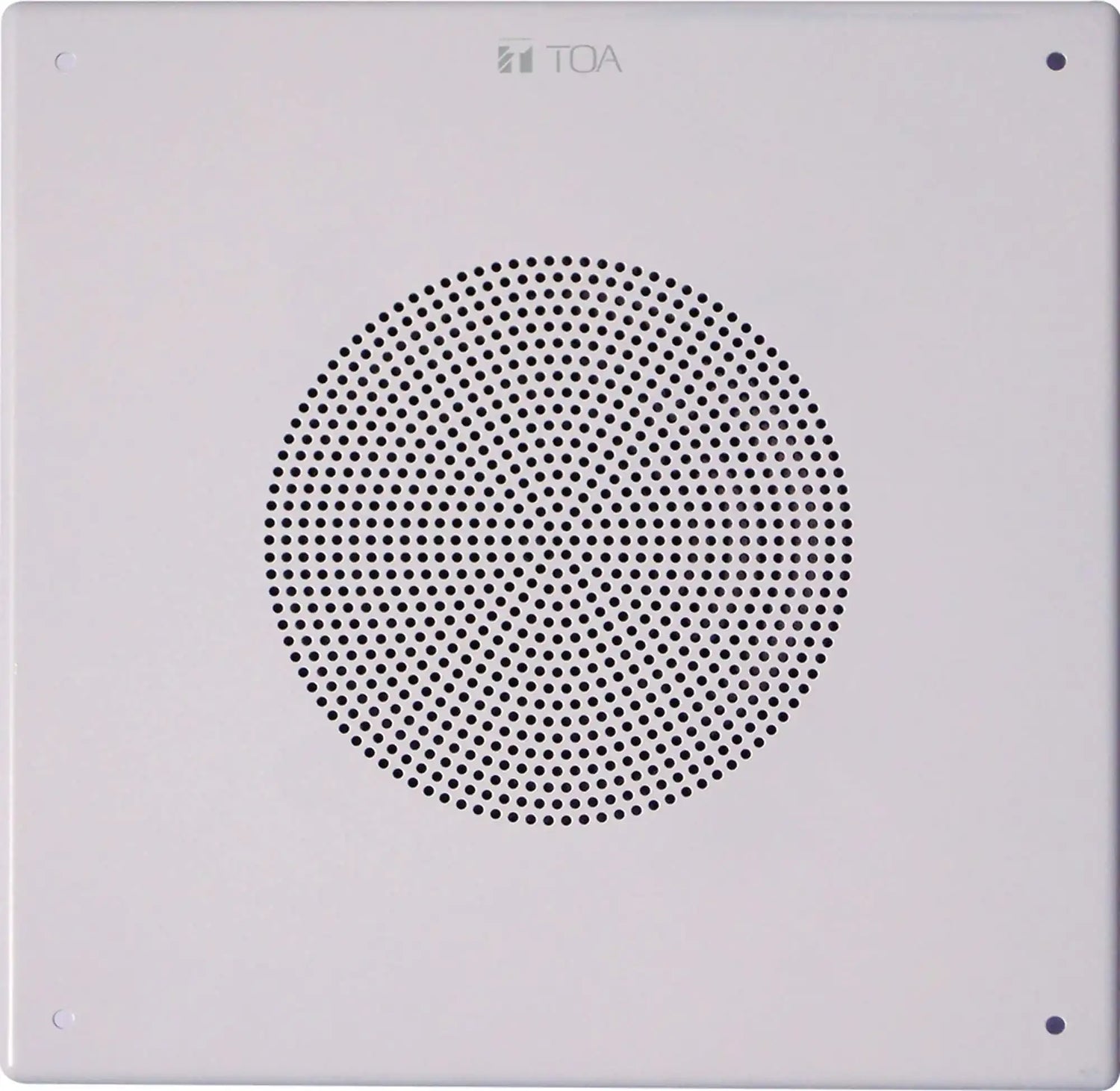

TOA PC-580S AM – 8" Square Ceiling Speaker, 25/70V
TOA PC-580S AM – 8" Square Ceiling Speaker, 25/70V is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
TOA PC-580S AM – 8" Square Ceiling Speaker, 25/70V
Product Overview
The TOA PC-580S AM is an 8-inch square in-ceiling speaker with a 25 V / 70 V transformer up to 5 W, built for high-quality paging and background music. Its square baffle suits architectural ceilings and aligns with tile grids. Selectable taps let integrators balance level by zone. It is priced and sold per unit.
Product Description
The PC-580S AM is a square-baffle ceiling loudspeaker for 25 V and 70 V constant-voltage distribution used in commercial paging and background music. A 200 mm (8 in) dual-cone driver delivers a 50 Hz to 16.5 kHz response with 97 dB sensitivity for clear, intelligible speech and program audio. The 5 W transformer offers selectable taps (5 / 2.5 / 1 / 0.6 / 0.3 W) so designers set per-speaker power for even coverage without changing amplifiers. The square format aligns cleanly with architectural ceilings and tile grids. The speaker installs into a standard cutout with its mounting hardware and pairs with TOA mixer amplifiers. It ships individually so integrators order to exact zone counts.
Key Features
- Square architectural baffle — Aligns cleanly with tile grids and modern ceilings.
- 25 V / 70 V transformer — Integrates into constant-voltage distributed audio lines.
- Selectable taps — 5 / 2.5 / 1 / 0.6 / 0.3 W to balance SPL by zone.
- 8" dual-cone driver — 50 Hz–16.5 kHz response with 97 dB sensitivity.
- Sold per unit — Order to exact zone counts.
Technical Specifications
| Driver | 200 mm (8 in) dual cone |
|---|---|
| Transformer | 5 W, 25 V & 70 V |
| Power Taps (70 V) | 5 / 2.5 / 1 / 0.6 / 0.3 W |
| Frequency Response | 50 Hz – 16.5 kHz |
| Sensitivity | 97 dB SPL (1 W, 1 m) |
Specifications per TOA published datasheet (PC-580S). Confirm against the manufacturer datasheet before final specification.
