TOA Electronics 8-Channel Mixer Preamplifier - M-900MK2
Overview

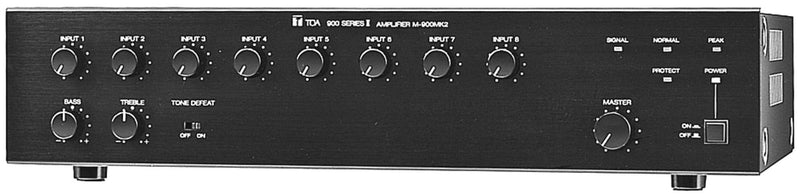

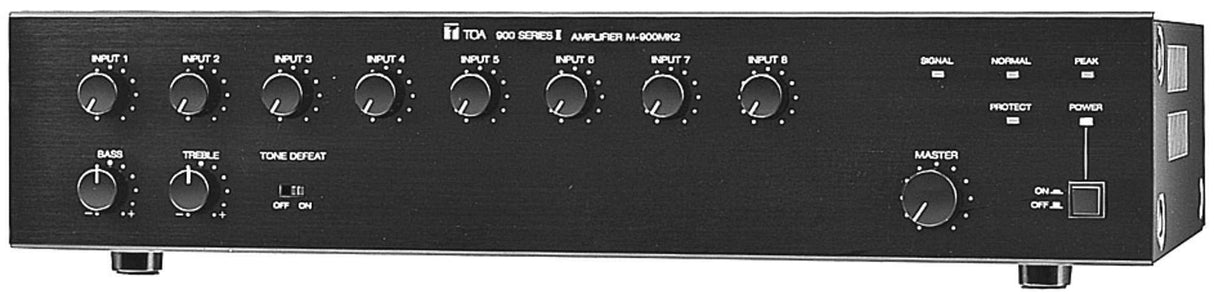

The TOA M-900MK2 is an 8-slot modular mixer preamplifier that accepts any combination of TOA plug-in input modules. With a balanced transformer-isolated output delivering up to +20 dBm and a vanishingly low 0.01% THD, it is the central control hub in TOA commercial paging and background music systems.
Description
The M-900MK2 provides a flexible, user-configurable mixing platform for small to medium commercial AV installations. Its eight module slots accept any TOA plug-in input module — including microphone, line, telephone interface, tuner, and priority input modules — enabling you to tailor the system precisely to your application without external adapters. A bridging RCA jack expands the system by linking multiple M-900MK2 units. Individual channel potentiometers, bass and treble tone controls (±10 dB), and a master output pot give complete front-panel control. Status LEDs monitor power, peak, protect, signal, and normal conditions at a glance, while dual mute buses and protection circuitry guard system integrity.
Key Features
- 8 slots for TOA plug-in input modules (mix any combination of mic, line, tuner, phone, etc.)
- Balanced transformer-isolated output: +4 dBm nominal, +20 dBm maximum
- Ultra-low 0.01% THD for clean, broadcast-quality audio
- Power bandwidth: 30 Hz – 20 kHz at +20 dBm, 0.5% THD
- Bass and treble tone controls ±10 dB
- Dynamic range: 90 dB at minimum volume; 77 dB at maximum volume
- Dual mute bus for priority paging and emergency override
- Bridge in/out RCA jack for system expansion
- Status LEDs: Power, Peak, Protect, Signal, Normal
- Self-protection with internal AC fuses
Typical Applications
- Commercial paging and BGM systems in retail, hospitality, and corporate facilities
- Multi-source mixing for distributed audio systems
- Zone control preamplifier driving TOA 70V/100V power amplifiers
- Houses of worship PA system source mixing
- Healthcare and education campus announcement systems
Technical Specifications
| Output Power | +4 dBm nominal; +20 dBm maximum |
|---|---|
| Power Bandwidth | 30 Hz – 20 kHz at +20 dBm, 0.5% THD; 250 Hz – 20 kHz at +18 dBm, 0.5% THD |
| Frequency Response | 20 Hz – 20 kHz |
| THD | 0.01% |
| Dynamic Range | 90 dB (min volume); 77 dB (max volume) |
| Input Slots | 8 × module slots; 100 mV sensitivity; 10 kΩ impedance |
| Bridge In/Out | RCA jack; 100 mV sensitivity; 3.3 kΩ impedance |
| Main Output | Balanced terminal block; 150/600 Ω |
| Aux Output | Unbalanced RCA jack; 10 kΩ |
| Output Regulation | <1.5 dB |
| Tone Control | ±10 dB bass and treble |
| Power Consumption | 18 W |
| Operating Temperature | −10 to +60°C (14 to 140°F) |
| Dimensions | 420 × 99 × 308 mm (16.5" × 3.9" × 12.1") |
| Weight | 5.3 kg (11.7 lbs) |
FAQ
What is the difference between the M-900MK2 and the M-900MK2 R Kit?
The M-900MK2 R Kit bundles the mixer preamplifier with a rack mounting kit. The base M-900MK2 is the standalone unit. Both are functionally identical.
What input modules are compatible with the M-900MK2?
All TOA M-900 series plug-in modules are compatible, including microphone, line, telephone, AM/FM tuner interface, and priority input modules. Contact Creation Networks for the full module selection.
Can multiple M-900MK2 units be linked?
Yes. The bridging RCA jack allows you to cascade multiple units for larger installations requiring more than 8 input channels.
Does the M-900MK2 ship with input modules?
No. The chassis requires at least one input module to pass audio. Input modules are specified and ordered separately to match the installation requirements.
