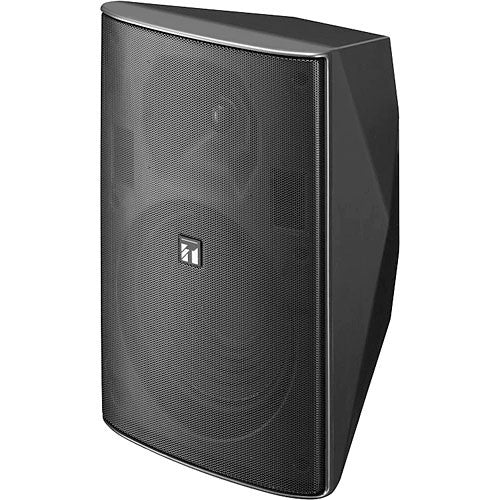

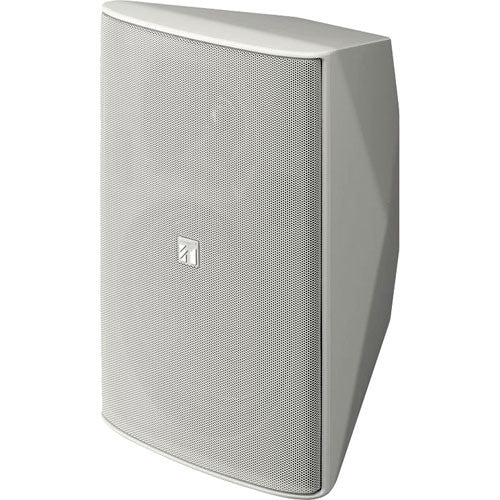

TOA Electronics 8" 2-Way Weather Proof Speaker with Transformer

Product Overview

The TOA F-2000WTWP is an 8-inch two-way wide-dispersion speaker with a built-in 70/100V transformer, engineered for commercial and light-outdoor audio installations where weather resistance and broad coverage are required. Rated IPX4 splash-proof, it delivers reliable distributed audio for lobbies, retail areas, covered patios, transit facilities, and commercial entertainment zones.

Product Description

The F-2000WTWP pairs an 8-inch (20 cm) cone woofer with a 1-inch (25 mm) dome tweeter for a smooth frequency response from 65 Hz to 20 kHz. Its octagonal horn design provides wide 110° × 100° sound dispersion, and an included horn adapter lets installers narrow coverage to 80° × 80° for more focused zone targeting. The built-in transformer offers screwdriver-adjustable power taps (3 W, 15 W, 30 W, 60 W at 100 V; 1.5 W, 7.5 W, 15 W, 30 W, 60 W at 70 V) for straightforward impedance matching on long cable runs. Individual driver protection circuits on each element preserve system integrity. The covered rear-mounted terminal block seals against moisture, and the IPX4 splash-proof rating supports semi-outdoor installation. The paintable white enclosure blends into architectural environments. Explore TOA F-2000 Series speakers at Creation Networks.

Key Features

• 8″ Woofer + 1″ Dome Tweeter — 2-way driver configuration delivers smooth 65 Hz – 20 kHz frequency response for intelligible speech and music reproduction.
• Built-In 70/100V Transformer — Screwdriver-adjustable taps (3/15/30/60 W at 100 V) simplify distributed audio wiring without external hardware.
• IPX4 Splash-Proof Rated — Weather-resistant construction with covered terminal block for semi-outdoor and high-humidity installations.
• Wide 110° × 100° Dispersion — Octagonal horn design provides broad coverage; included adapter narrows to 80° × 80° for focused zones.
• 92 dB Sensitivity — High efficiency supports larger areas with lower amplifier power requirements.
• Individual Driver Protection — Separate protection circuits per driver maintain coverage continuity without sacrificing the full system.
• Paintable White Enclosure — Blends into architectural settings; side ribbing adds structural integrity.
• Mounting Bracket Included — Standard bracket included; optional accessory brackets for non-standard positions available separately.

Typical Applications

• Commercial lobby and retail PA
• Covered outdoor venue
• Transit facility
• Multi-purpose room
• House of worship foyer
• Commercial entertainment zone

Technical Specifications

Frequently Asked Questions

What is the coverage angle? The standard horn provides 110° × 100° dispersion; the included horn adapter narrows this to 80° × 80° for more focused coverage zones.

Is it suitable for outdoor use? The IPX4 rating makes it suitable for semi-outdoor or covered outdoor environments. For direct-weather exposure, additional protection measures may be required.

What power taps are available? At 100 V: 3 W, 15 W, 30 W, 60 W. At 70 V: 1.5 W, 7.5 W, 15 W, 30 W, 60 W — all adjustable by screwdriver at the rear terminal.

Does it include a mounting bracket? Yes — a standard wall/ceiling bracket is included. Optional accessory brackets are available for non-standard installations.

Is it compatible with standard 70V/100V amplifiers? Yes — the built-in transformer supports both 70 V and 100 V distributed audio systems.

Can it be painted to match a room? Yes — the enclosure is paintable, allowing color matching to architectural finishes.

What warranty applies? Carries the TOA manufacturer warranty. Contact Creation Networks for support and compatible F-Series accessories.
