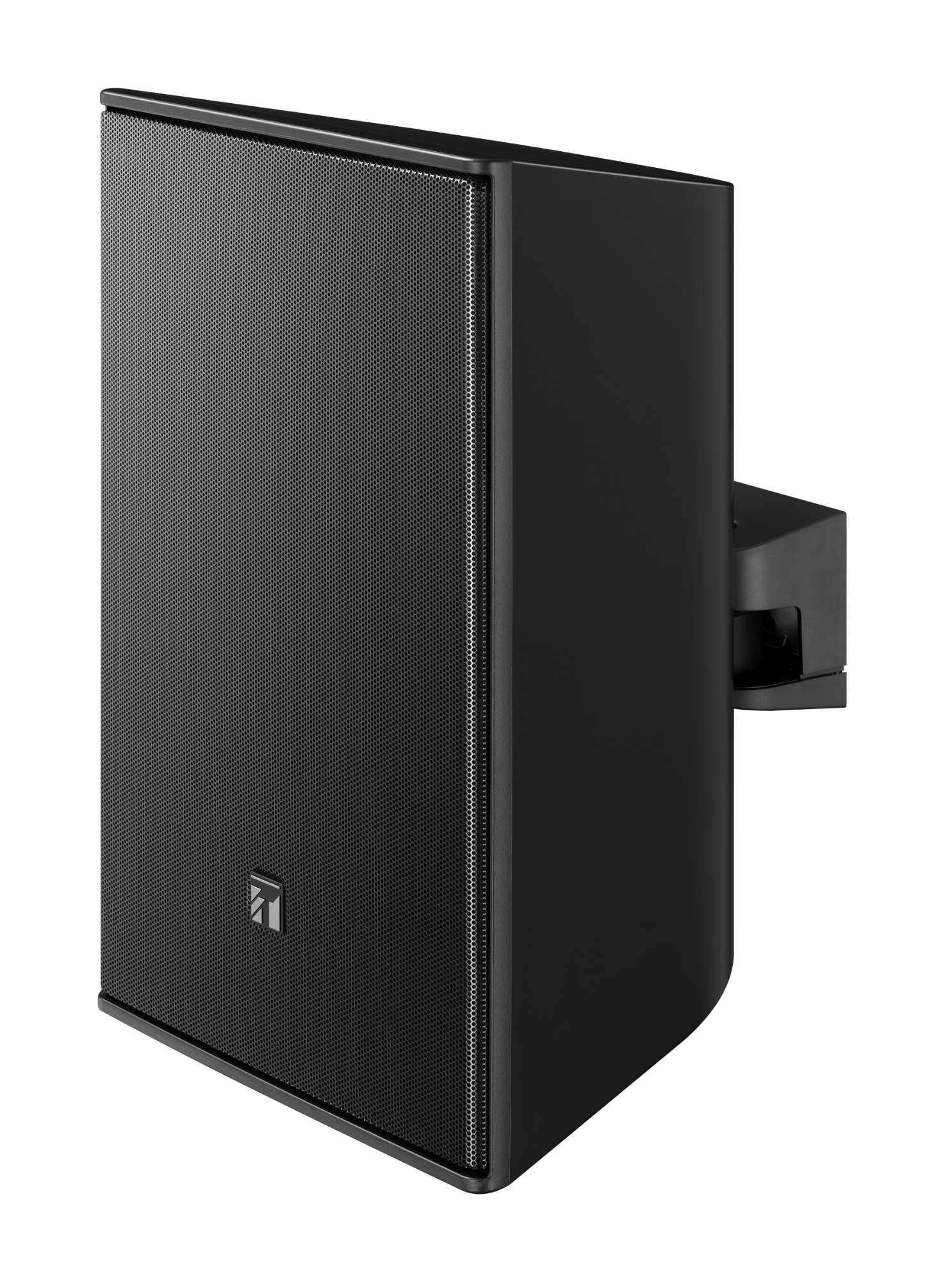

TOA F-08BT 8" 2-Way Surface-Mount Speaker System

Product Overview

The TOA F-08BT is an 8-inch 2-way surface-mount speaker system engineered for foreground and background music playback and public address applications in commercial AV installations. The bass-reflex enclosure houses a 20 cm (8") polypropylene cone woofer and a 25 mm dome tweeter, delivering a frequency response of 50 Hz–20 kHz and a rated sensitivity of 91 dB (1W/1m). With a rated input of 60W at 70V or 100V line and multiple impedance tap settings, the F-08BT integrates directly into 70V/100V distributed audio systems. An integrated temporary hanging feature and adjustable mounting bracket support single-technician installation on both wall and ceiling surfaces.

Product Description

The TOA F-08BT surface-mount speaker system is designed for permanent commercial AV installations requiring full-range audio reproduction from a compact, wall-mountable enclosure. The 8-inch polypropylene cone woofer provides extended low-frequency performance appropriate for music reproduction, while the 25 mm dome tweeter delivers clear high-frequency detail for both music and speech intelligibility. Multiple impedance tap settings — from 3W to 60W at 100V, and 1.5W to 60W at 70V — allow the AV system designer to match speaker load to amplifier output in large distributed 70V/100V audio systems. The direct 8Ω input supports connection to low-impedance amplifiers for smaller zones. A rated noise power of 90W and program capacity of 180W provide substantial headroom above the rated 60W operating point, protecting the speaker from occasional transient peaks without engaging protection circuitry. The bass-reflex enclosure design extends usable low-frequency output compared to sealed alternatives at the same cabinet volume, supporting music reproduction in commercial dining, retail, and meeting environments. The integrated hanging bracket enables temporary docking during installation for effortless wiring and angle adjustment before final fastening. For the complete TOA F-BOX surface-mount speaker series and 70V amplifier pairings, visit creationnetworks.net.

Key Features

• 8" Polypropylene Woofer + 25mm Dome Tweeter — 2-way driver configuration delivers full-range audio from 50 Hz to 20 kHz for music and voice applications.
• 60W at 70V/100V — Multiple tap settings support integration into large distributed 70V/100V commercial PA and BGM systems.
• 91dB Sensitivity — High sensitivity (1W, 1m, half free field) ensures adequate SPL from modest amplifier output, reducing system cost in multi-zone installations.
• 90W Noise / 180W Program Power — Substantial power handling headroom above rated input provides protection from transient peaks in commercial environments.
• Bass-Reflex Enclosure — Ported cabinet design extends low-frequency response for improved music reproduction versus sealed enclosures at equivalent volume.
• Temporary Hanging Feature — Integrated hanging mechanism allows single-technician positioning and wiring before final bracket attachment.
• Wall and Ceiling Compatible — Adjustable mounting bracket supports both wall-mount and ceiling-mount orientations for flexible commercial installation.

Typical Applications

• Conference room
• Boardroom
• Commercial meeting space
• All-hands room
• Training room
• Multi-purpose room
• House of worship

Technical Specifications

Frequently Asked Questions

Is the F-08BT compatible with 70V distributed audio systems?
Yes — the F-08BT includes 70V and 100V transformer taps with multiple power settings (60W, 30W, 15W, 7.5W, 1.5W at 70V), making it a standard speaker for 70V commercial PA and BGM distributed audio installations.

What amplifier output is required to power the F-08BT?
At the rated 60W tap, any TOA 70V or 100V line amplifier with sufficient total output wattage is compatible. The 91dB sensitivity means lower amplifier output is needed compared to less-sensitive speakers to achieve the same SPL.

Can the F-08BT be installed on a ceiling?
Yes — the adjustable mounting bracket supports both wall-mount and ceiling-mount configurations. The temporary hanging feature simplifies single-person installation.

What is the difference between the F-08BT and F-08WT?

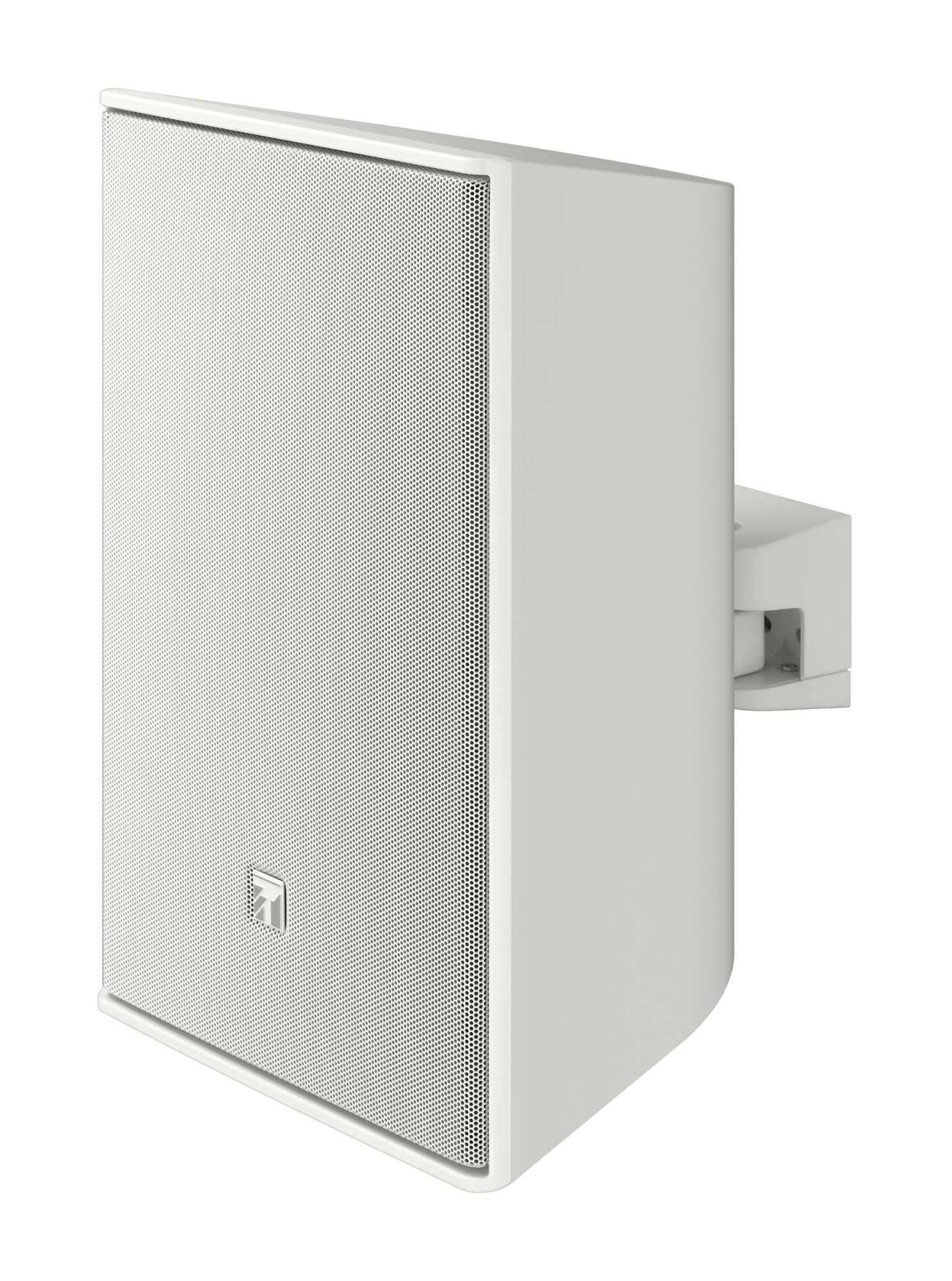

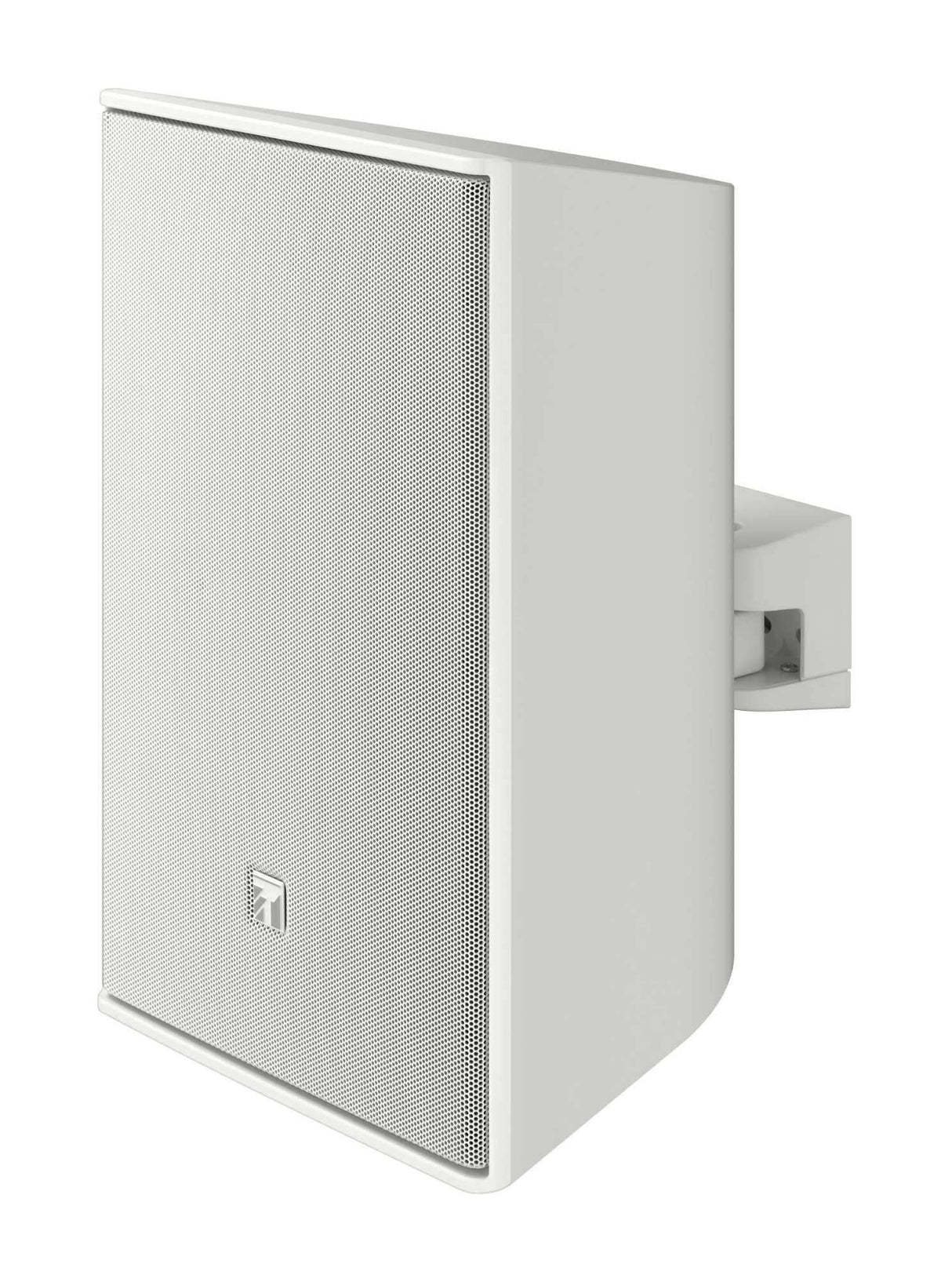

The F-08BT (black) and F-08WT (white) are identical in performance and specifications; the only difference is cabinet finish color. Select the model that matches your installation's aesthetic requirements.

Is there a weatherproof version of the F-08BT?
Yes — the TOA F-08BT-WP-UE is the outdoor/weatherproof variant of the F-08BT for covered outdoor or semi-exposed installations.

What is the F-08BT's power handling with program material?
The F-08BT handles 180W of continuous program material at 8Ω (with a noise power rating of 90W), providing substantial headroom above the 60W rated input for typical commercial use scenarios.
