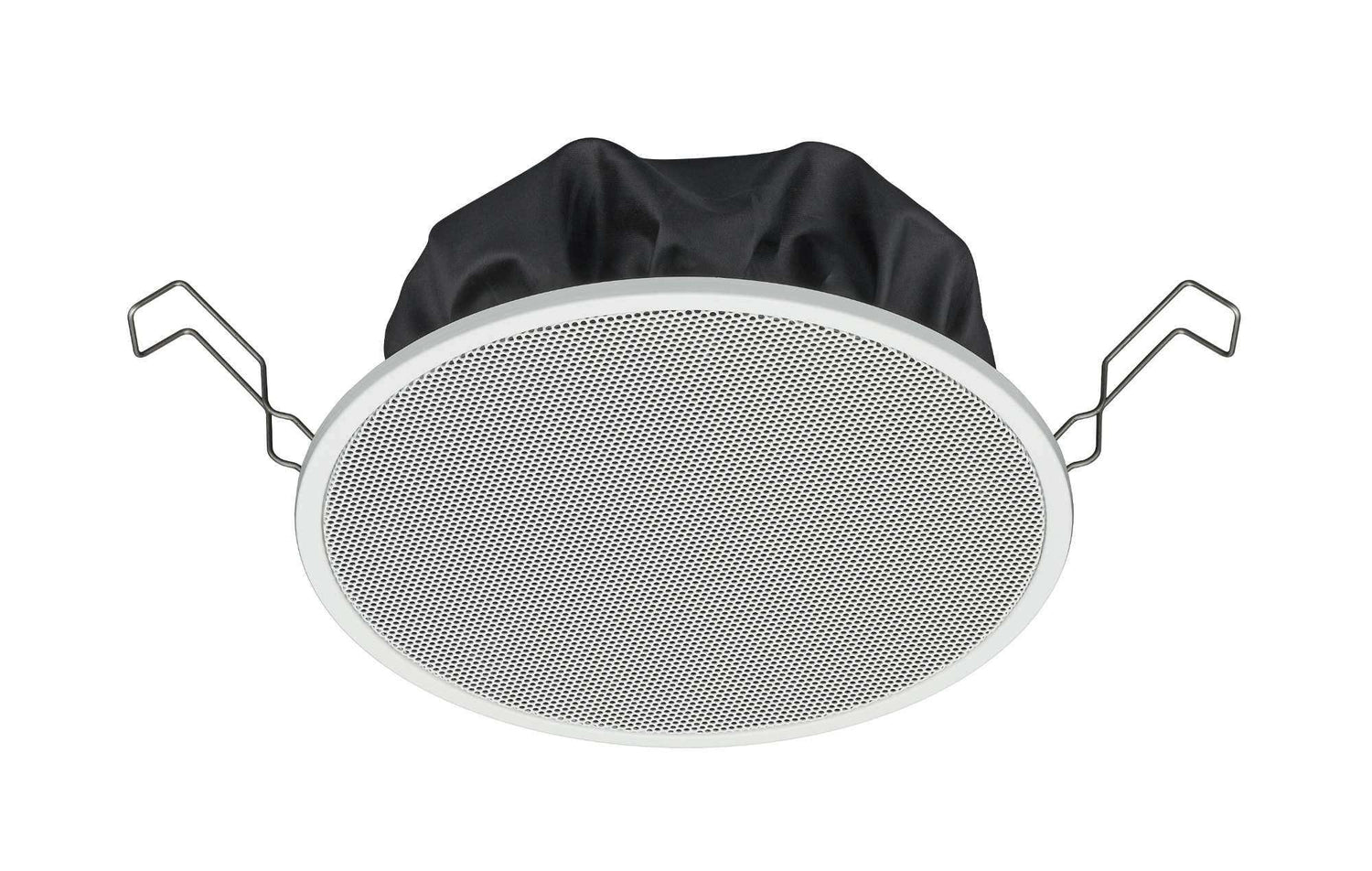

TOA PC-2360 – 6" Ceiling Speaker, 70/100V
Product Overview
The TOA PC-2360 is a 6-inch full-range ceiling speaker with a built-in 70 V / 100 V transformer for distributed background music and paging. Selectable power taps let integrators balance level across large constant-voltage speaker lines. Its spring-clamp mounting and shallow depth make it a quick commercial ceiling install. It is priced and sold per unit.
Product Description
The PC-2360 is a ceiling-mount loudspeaker for 70 V and 100 V distribution systems used in commercial background music and paging. A 16 cm (6 in) full-range cone covers a 60 Hz to 20 kHz range with 94 dB sensitivity for clear speech and program audio. The integrated transformer provides taps — 6 / 3 / 1.5 / 0.8 W on 100 V and 3 / 1.5 / 0.8 / 0.4 W on 70 V — so designers set per-speaker power for even coverage without changing amplifiers. Spring-clamp mounting secures the speaker into a ceiling cutout for fast install and service. Its shallow 76 mm depth fits typical ceiling and plenum cavities. The 6-inch driver provides fuller low-mid output than smaller ceiling speakers, suiting music as well as paging. It pairs with TOA mixer amplifiers and ships individually so integrators order to exact zone counts.
Key Features
- 70 V / 100 V transformer — Integrates into constant-voltage lines for paging and music.
- Multiple power taps — Up to 6 W with selectable settings to balance SPL by zone.
- 6" full-range driver — 60 Hz–20 kHz response with 94 dB sensitivity.
- Spring-clamp mounting — Secures into a ceiling cutout for quick install and service.
- Fuller low-mid output — 6-inch cone suits music as well as paging.
- Sold per unit — Order to exact zone counts.
Technical Specifications
| Driver | 16 cm (6 in) full-range cone |
|---|---|
| Power Taps (100 V) | 6 / 3 / 1.5 / 0.8 W |
| Power Taps (70 V) | 3 / 1.5 / 0.8 / 0.4 W |
| Frequency Response | 60 Hz – 20 kHz |
| Sensitivity | 94 dB SPL (1 W, 1 m) |
| Dimensions | Ø230 mm × 76 mm deep |
| Weight | 740 g |
Specifications per TOA published datasheet (PC-2360). Confirm against the manufacturer datasheet before final specification.
