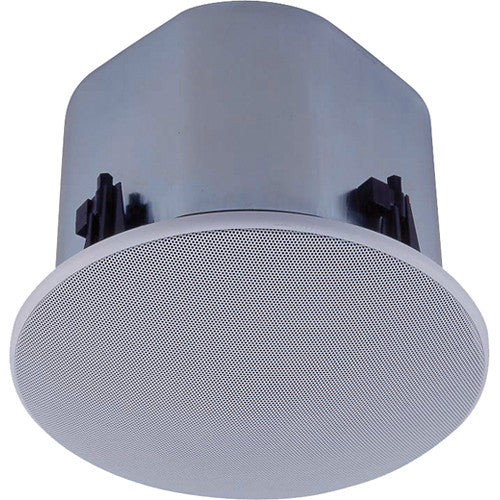

TOA Electronics 6.5" Coaxial Ceiling Speaker with Tile Bridges - F-2852CU2
Roll over image to zoom in Click on image to zoom
TOA Electronics 6.5" Coaxial Ceiling Speaker with Tile Bridges - F-2852CU2
Product Questions? Ask Our Experts!
Tel: 888.230.3661 sales@creationnetworks.net Contact us today for quantity & package discounts!

TOA Electronics 6.5" Coaxial Ceiling Speaker with Tile Bridges - F-2852CU2

TOA SKU: F-2852CU2
No reviews
Price:
$225.00 $279.00

Description

The F-2852CU2 6.5" 2-Way Coaxial Ceiling Speaker from Toa Electronics is a 6.5", 2-way, co-axial speaker suitable for music and paging applications such as audio/visual, business, music, or retail sound systems. The speaker has a frequency response of 60 Hz to 20 kHz with a rated input of 60 watts, and a power handling capacity of 90 watts. Key benefits include smoother off-axis coverage and relative ease of installation.

The 2852C is suited for high ceiling installation and features a ported bass-reflex design. It's outfitted with a sound diffuser paired with its built-in co-axial tweeter for improved, open, high-end frequency response. Also included are:  an integral backcan with safety cable, quick-mount hardware, and removable Phoenix-style connectors with loop-through points for connecting adjacent speakers. Additionally, the speaker features a built-in, multi-tap transformer, as well as both 8 and 16 ohm direct modes, a front baffle power tap selector, and double-locking paintable grilles. Furthermore, built-in overload protection circuitry improves speaker reliability and helps ensure component longevity.

  • Ideal for high ceiling applications
  • Ported bass-reflex design
  • Co-axial: 6.5” cone driver and dome tweeter
  • Special diffuser provides wide off-axis high frequency response
  • Metal back-can and safety cable
  • UL-Listed for General Purpose Signaling and Air-Handling Spaces (UL1480 UEAY, UL2043)
  • Removable terminal block with loop-through terminations
  • Overload protection circuitry
Speaker Type Co-axial with dome-type tweeter
Speaker Size 6.5" Woofer
Enclosure Bass reflex type
Rated Input 60 W (high impedance)
Power Capacity Continuous pink noise: 90 W (8 ohms), 60 W (16 ohms)
Continuous program: 180 W (8 ohms), 120 W (16 ohms)
Frequency Response 60 Hz to 20 kHz (-10 dB)
45 Hz to 20 kHz (-20 dB)
Impedance 8 and 16 ohms
Power Taps 70 V Line:
83 ohms (60 W), 170 ohms (30 W), 330 ohms (15 W), 670 ohms (7.5 W), 3.3 kOhms (1.5 W)
25 V Line:
83 ohms (7.5 W), 170 ohms (3.7 W), 330 ohms (1.9 W), 670 ohms (0.9 W), 3.3 kOhms (0.2 W)
Maximum Sound Pressure Level (SPL) 91 dB (1 W / 1 m)
Mounting Hole 9.8" (250 mm) (maximum ceiling thickness: 1.5" [37 mm])
Input Terminal Removable locking connector with screw-down terminals
2 input terminals and 2 bridge terminals)
Compatible Cables Solid copper wire: 0.5 to 1.6 mm, equivalent to AWG No. 24 - 14
Stranded copper wire: 0.2 to 2.5 mm, equivalent to AWG No. 24 - 14
Finish/Material Enclosure: Steel plate, plating
Baffle: Fire-resistant ABS resin (resin material grade: UL-94 V-0), black
Rim: Fire-resistant ABS resin (resin material grade: UL-94 V-0), white, paint
Punched net: Steel plate, white, paint
Dimensions 11.02 x 9.3" (280 x 236 mm)
Weight 11.2 lb (5.1 kg)
