TOA PE-304U 5" 2-Way Pendant Speaker System - 30 W, 70 V / 100 V, UL1480
TOA PE-304U 5" 2-Way Pendant Speaker System - 30 W, 70 V / 100 V, UL1480 - White is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
TOA PE-304U 5" 2-Way Pendant Speaker System - 30 W, 70 V / 100...
Product Overview

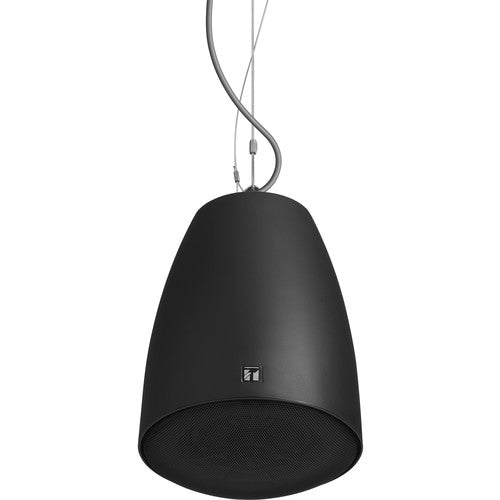

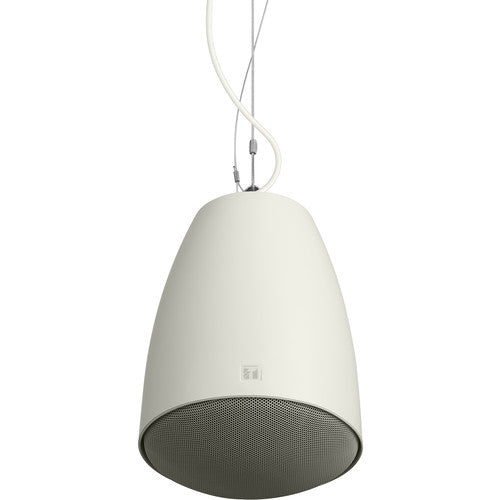

The TOA PE-304U is a 5" two-way pendant speaker system rated at 30 W and listed to UL1480 for life safety signaling applications. The bass-reflex enclosure combines a 5" (12 cm) cone woofer with a balanced dome tweeter to deliver clear, wide-range audio in atriums, lobbies, cafeterias, and similar open-plan spaces where ceiling-suspended audio coverage is preferred over recessed mounting. Available in white (PE-304WU) or black (PE-304BU) to suit architectural requirements.
Product Description
The PE-304U integrates a built-in 70 V / 100 V matching transformer with selectable taps from 5 W through 30 W, providing flexible zone-level control across distributed audio systems. The HIPS resin enclosure with steel grille is rated for indoor pendant suspension. The pendant form factor allows full 360° horizontal coverage and is well suited to high-ceiling environments where flush-mount ceiling speakers cannot deliver adequate throw distance. Order the TOA PE-304U from Creation Networks.
Key Features
- 5" (12 cm) cone woofer plus balanced dome tweeter in a bass-reflex enclosure
- UL1480 listed for life safety and general purpose signaling
- Built-in transformer with selectable taps: 5 W, 10 W, 15 W, 20 W, 30 W at 100 V and 70 V
- Direct 8 Ω operation also supported
- 91 dB SPL sensitivity (1 W, 1 m)
- Frequency response: 70 Hz – 20 kHz (–20 dB)
- Available in white (PE-304WU) and black (PE-304BU)
- HIPS resin enclosure; surface-treated steel grille
- Dimensions: ø7.32" x 9.88" H (ø186 x 251 mm)
- Weight: 4.63 lbs (2.1 kg)
Technical Specifications
| Specification | Value |
|---|---|
| Driver Configuration | 5" (12 cm) cone LF + balanced dome HF |
| Enclosure Type | 2-way bass-reflex |
| Sensitivity | 91 dB SPL (1 W, 1 m) |
| Frequency Response | 70 Hz – 20 kHz (–20 dB) |
| Power Taps (100 V / 70 V) | 5 W, 10 W, 15 W, 20 W, 30 W |
| Direct Impedance | 8 Ω |
| Listing | UL1480 |
| Enclosure Material | HIPS resin |
| Grille Material | Surface-treated steel |
| Dimensions | ø7.32" x 9.88" H (ø186 x 251 mm) |
| Weight | 4.63 lbs (2.1 kg) |
