TOA PE-304 – 30W Two-Way Pendant Speaker System
Product Overview

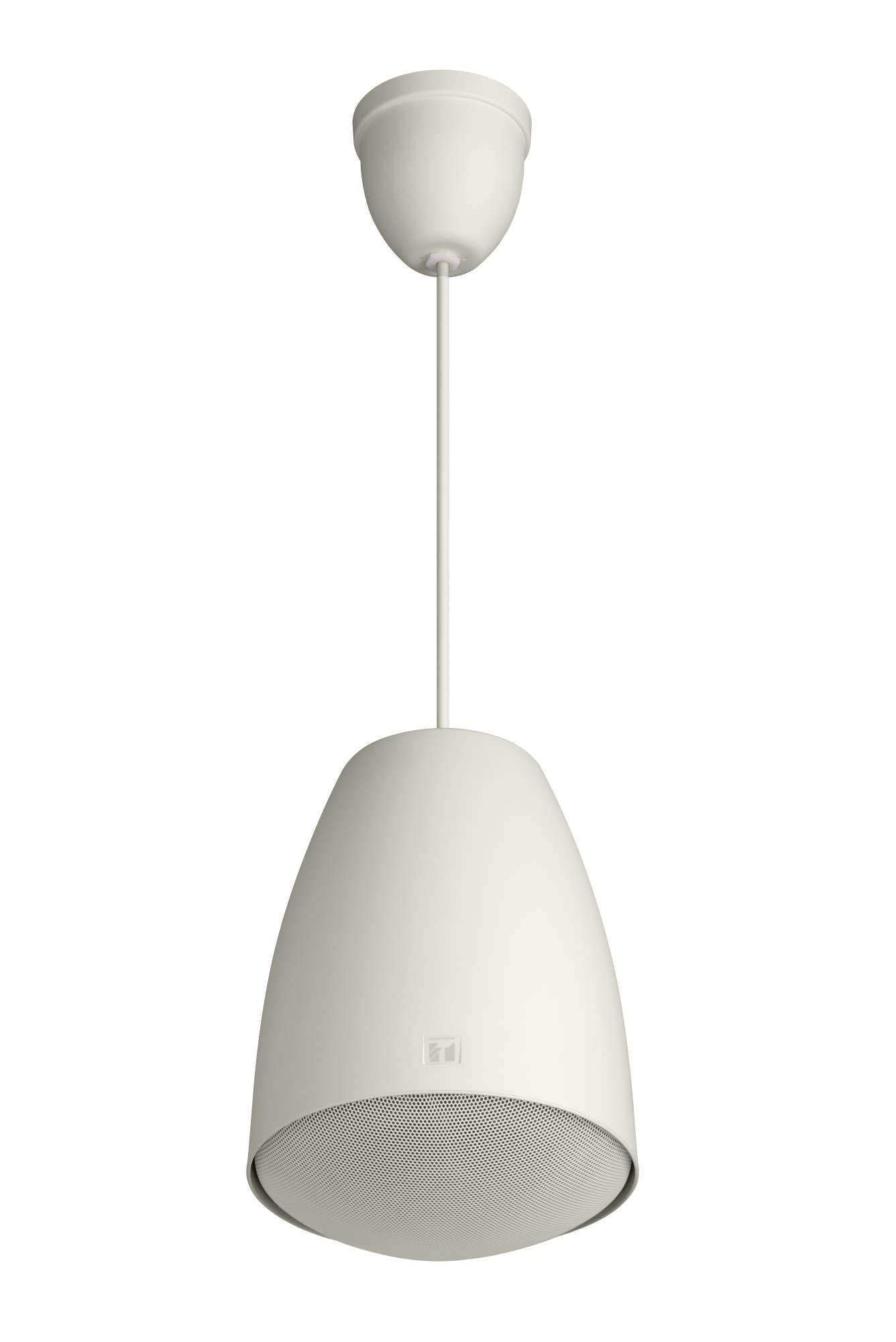

The TOA PE-304 is a 30W two-way pendant speaker system for ceiling suspension in retail, hospitality, transit, and commercial venues. It accepts 100V, 70V, and 8 Ω line connections through a built-in multi-tap transformer, and a pre-attached 5 m cable simplifies installation from high ceilings. A 5-inch cone woofer and dome tweeter combination delivers 70 Hz to 20 kHz response for both speech and music reproduction.
Product Description
The PE-304's two-way design — pairing a 12 cm cone-type woofer with a balanced dome tweeter — delivers full-range audio suitable for both background music and paging announcements. Multiple power taps on both 100V and 70V lines (from 5W to 30W) give installers precise volume-matching control across large distributed systems. The pre-attached 5 m cable means the speaker can hang from structural ceiling elements without requiring a separate cable termination at the pendant body, speeding installation. The enclosure is designed to be repainted, allowing the PE-304 to blend into any interior color scheme.
Key Features
- Two-Way Driver Configuration: 5-inch (12 cm) cone woofer and dome tweeter cover 70 Hz to 20 kHz for both music and speech.
- 100V, 70V, and 8 Ω Compatible: Multi-tap transformer supports all three common distributed audio line standards.
- Multiple Power Taps: 5W to 30W tap settings allow output-level matching across large zones.
- Pre-Attached 5 m Cable: Integrated suspension cable simplifies installation from high structural ceilings.
- 91 dB SPL Sensitivity: Efficient output relative to input power for wide-area coverage in moderately sized rooms.
- Repaintable Enclosure: Designed to accept paint for custom color matching to interior décor.
Technical Specifications
| Rated Power | 30 W |
|---|---|
| Sensitivity | 91 dB SPL (1 W / 1 m) |
| Frequency Response | 70 Hz–20 kHz (−20 dB) |
| Line Compatibility | 100V, 70V, 8 Ω |
| 100V Taps | 330 Ω (30W), 500 Ω (20W), 670 Ω (15W), 1 kΩ (10W), 2 kΩ (5W) |
| 70V Taps | 170 Ω (30W), 250 Ω (20W), 330 Ω (15W), 500 Ω (10W), 1 kΩ (5W) |
| Suspension Cable | 5 m (16.4 ft), pre-attached |
| Dimensions | Ø186 × 251 mm (H) |
| Weight | 2.1 kg (4.63 lbs.) |
