TOA F-122CU2 5" Full-Range Ceiling Speaker - 30 W, UL1480/2043 Listed, Tile Bridge
TOA F-122CU2 5" Full-Range Ceiling Speaker - 30 W, UL1480/2043 Listed, Tile Bridge is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
TOA F-122CU2 5" Full-Range Ceiling Speaker - 30 W, UL1480/2043...
Product Overview

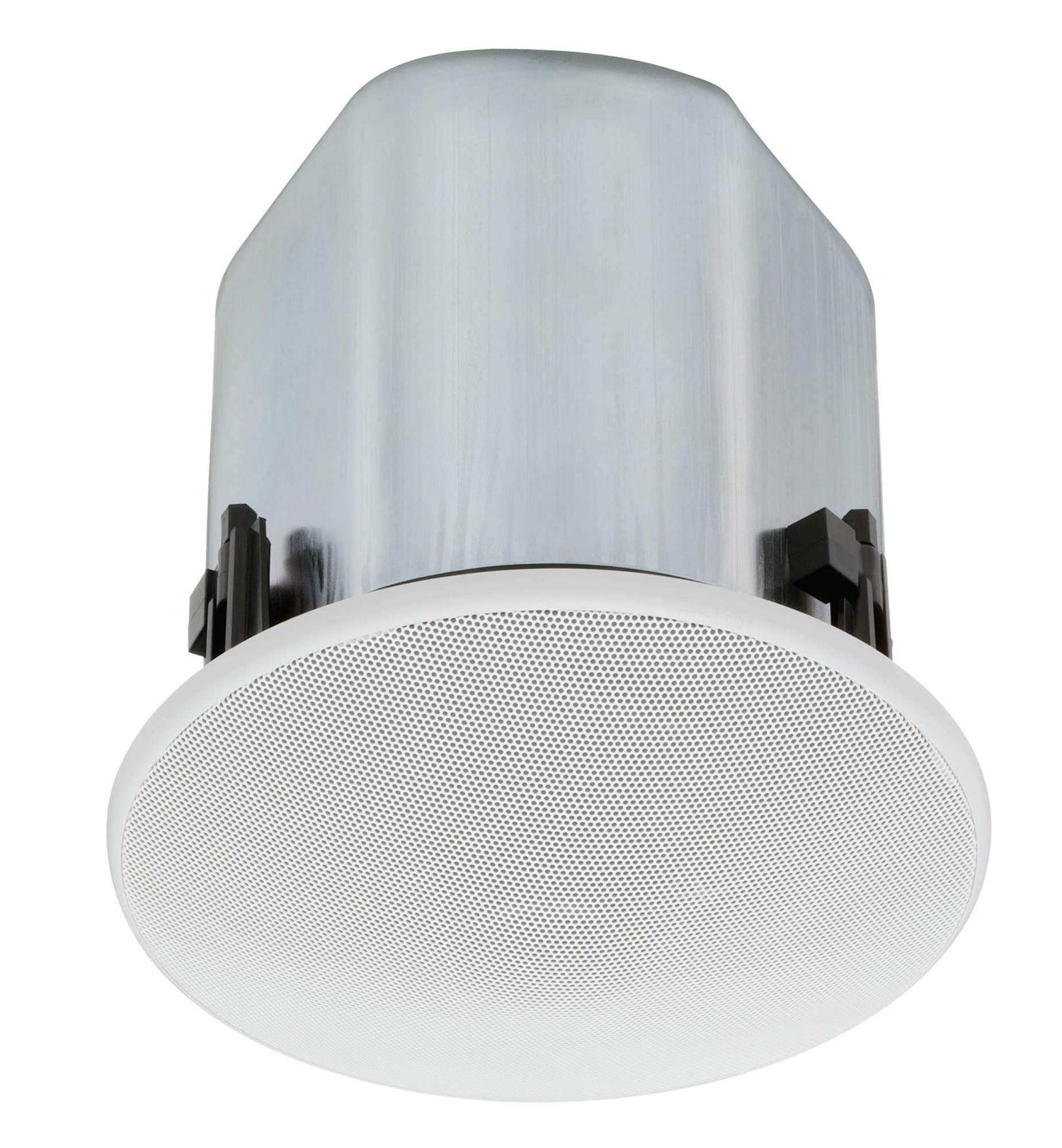

The TOA F-122CU2 is a 5" full-range ceiling speaker rated at 30 W and listed to both UL1480 and UL2043, qualifying it for fire protective signaling, general purpose paging, and air-handling plenum spaces. The bass-reflex enclosure delivers a wide frequency range from 70 Hz to 20 kHz, and the integral metal back-can with safety cable meets plenum installation code requirements. The CU2 designation includes the TB-250 tile bridge accessory for installation in T-bar suspended ceilings without requiring a separate cutout tool or additional hardware.
Product Description
Quick-mount hardware and removable Phoenix-style connectors with loop-through points simplify daisy-chain wiring across multiple speaker locations. Selectable 70 V and 25 V transformer taps range from 0.5 W through 30 W, accommodating everything from high-density small-zone coverage to long-run low-density distributed systems. The F-122CU2 is a cost-effective choice for education, healthcare, retail, and office environments where both life safety compliance and high-quality speech intelligibility are required. Order the TOA F-122CU2 from Creation Networks.
Key Features
- 5" full-range driver in a bass-reflex enclosure
- UL1480 and UL2043 listed for fire protective signaling and air-handling spaces
- TB-250 tile bridge included for T-bar suspended ceiling installations
- Integral metal back-can with safety cable for code-compliant plenum mounting
- Removable Phoenix-style connectors with loop-through daisy-chain capability
- Quick-mount hardware for rapid installation

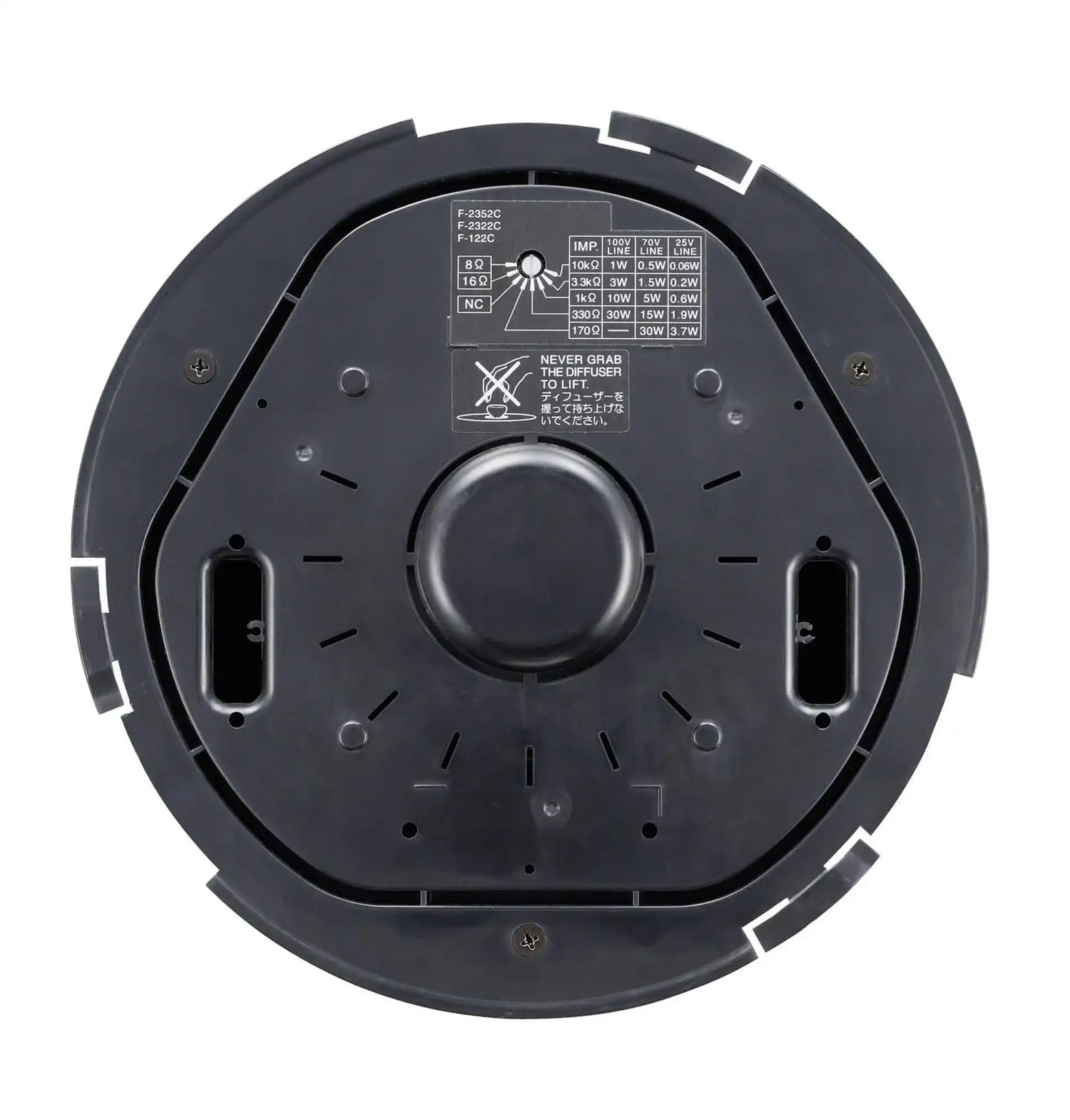

- Selectable 70 V taps: 30 W, 15 W, 5 W, 1.5 W, 0.5 W
- Frequency response: 70 Hz – 20 kHz (–10 dB)
Technical Specifications
| Specification | Value |
|---|---|
| Driver | 5" full-range |
| Enclosure Type | Bass-reflex |
| Frequency Response | 70 Hz – 20 kHz (–10 dB); 50 Hz – 20 kHz (–20 dB) |
| Power Taps – 70 V | 30 W (170 Ω), 15 W (330 Ω), 5 W (1 kΩ), 1.5 W (3.3 kΩ), 0.5 W (10 kΩ) |
| Power Taps – 25 V | 3.7 W (170 Ω), 1.9 W (330 Ω), 0.6 W (1 kΩ), 0.2 W (3.3 kΩ), 0.06 W (10 kΩ) |
| Listing | UL1480, UL2043 |
| Included Accessories | TB-250 tile bridge, safety cable, Phoenix-style connectors |
