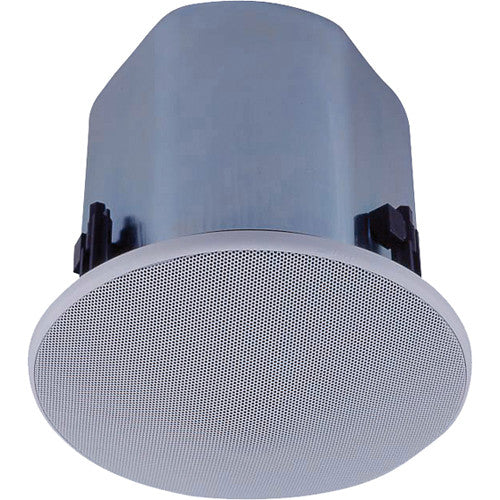

TOA Electronics 5" Coaxial Ceiling Speaker with Tile Bridges - F-2352CU2
Roll over image to zoom in Click on image to zoom
TOA Electronics 5" Coaxial Ceiling Speaker with Tile Bridges - F-2352CU2
Product Questions? Ask Our Experts!
Tel: 888.230.3661 sales@creationnetworks.net Contact us today for quantity & package discounts!

TOA Electronics 5" Coaxial Ceiling Speaker with Tile Bridges - F-2352CU2

TOA SKU: F-2352CU2
No reviews
Price:
$181.00 $223.00

Description

The TOA Electronic's F-2322CU2 5" Coaxial Ceiling Speaker with tile bridge has a frequency response of 70 Hz to 20 kHz and can handle 30W. It is a powerful ported bass-reflex designed speaker with wide-dispersion for music and paging applications. The acoustic construction of this speaker allows for a wide area of coverage with uniform sound output levels.

The speaker has a coaxial 5" cone driver with a dome tweeter, a practical low-profile design, and a paintable grille that will fit in with most any decor. It features a built-in multi-tap transformer with an additional 8/16 ohms direct mode, front baffle power tap selection and a double locking, paintable grille. The speaker comes packaged with a tile bridge and is designed to be fast and easy to install.

The speaker is UL1480/2043-Listed for Fire Protective, General Purpose Signaling and Air-Handling Spaces, and features Toa's limited 5-year warranty.

  • Passive 5" Ceiling Speaker
  • 70 Hz to 20 kHz Frequency Response
  • Handles up to 30 W
  • Built-In Multi-Tap Transformer
  • Paintable Grille
  • Front Baffle Power Tap
  • Includes Tile Bridge
Active or Passive Passive
Speaker Type 5" Coaxial
Frequency Response 70Hz to 20 kHz
Power Capacity Continuous pink noise: 60 W (8 ohms), 30 W (16 ohms)
Continuous program: 120 W (8 ohms), 60 W (16 ohms)
70V Tap 170 ohms (30 W), 330 ohms(15 W), 1 kOhms (5 W), 3.3 kOhms (1.5 W), 10 kOhms (0.5 W)
25V Tap 170 ohms (3.7 W), 330 ohms (1.9 W), 1 kOhms (0.6 W), 3.3 kOhms (0.2 W), 10 kOhms (0.06 W)
Maximum Sound Pressure Level (SPL) 90 db (1W, 1 m)
Nominal Sensitivity 90 dB
Enclosure Material Steel Plating
Input Connections Input Terminal: x2
Bridge Terminal: x2
Environmental Not Specified by Manufacturer
Ceiling Thickness Maximum : 1.46" (37 mm)
Cable Diameter Usable: Solid copper wire: 1.0 - 1.6 mm (equivalent to AWG No. 18 - 14)
Stranded copper wire: 0.75 - 2.5 mm (equivalent to AWG No. 18 - 14)
Dimensions 9.1 x 7.9" (230 x 200mm) (Speaker only x 2)
Weight Not specified by manufacturer
