TOA Electronics 480W 5 input Amplifier & Mixer - BG-2480D-AM

Product Overview

The TOA BG-2480D-AM is a 480-watt, five-input mixer amplifier built for background music and general announcements across large commercial spaces. Its high-efficiency Class-D output drives 70V and 100V distributed speaker lines or 4-ohm low-impedance loads, making it a flexible core for multi-zone paging systems. A compact, lightweight chassis and removable terminal blocks speed installation in a conference room, house of worship, or multi-purpose facility. RCA jacks for Line 2 and Line 3 simplify connecting local sources.

Product Description

The BG-2480D-AM extends the established TOA BG series with a 480-watt digital amplifier output for larger paging and music zones. It accepts five inputs, including one balanced microphone input, one balanced line/telephone input, two stereo RCA unbalanced line inputs, and additional unbalanced line inputs, so a single unit can combine paging mics, telephone paging, and background music sources. Automatic or manual mute lets paging take priority over music, and front-panel bass and treble controls tune the system for the room. DIP switches configure music-on-hold output assignment per input, mute behavior, LINE 1/TEL level, and phantom power on or off. Removable input and output terminal blocks make wiring and service straightforward, and an external remote volume control input supports localized level adjustment. Accessory security covers protect the front volume knobs from accidental changes. For matching speakers and source equipment, browse the TOA mixer amplifier range at Creation Networks.

Key Features

• 480W Class-D output — Drives large 70V/100V distributed zones or 4-ohm loads from a lightweight chassis.
• Five-input mixing — Combines mic, line/telephone, and stereo RCA sources for paging and background music.
• Automatic or manual mute — Gives paging announcements priority over music program.
• DIP-switch configuration — Sets MOH output assignment, mute, LINE 1/TEL level, and phantom power per the installation.

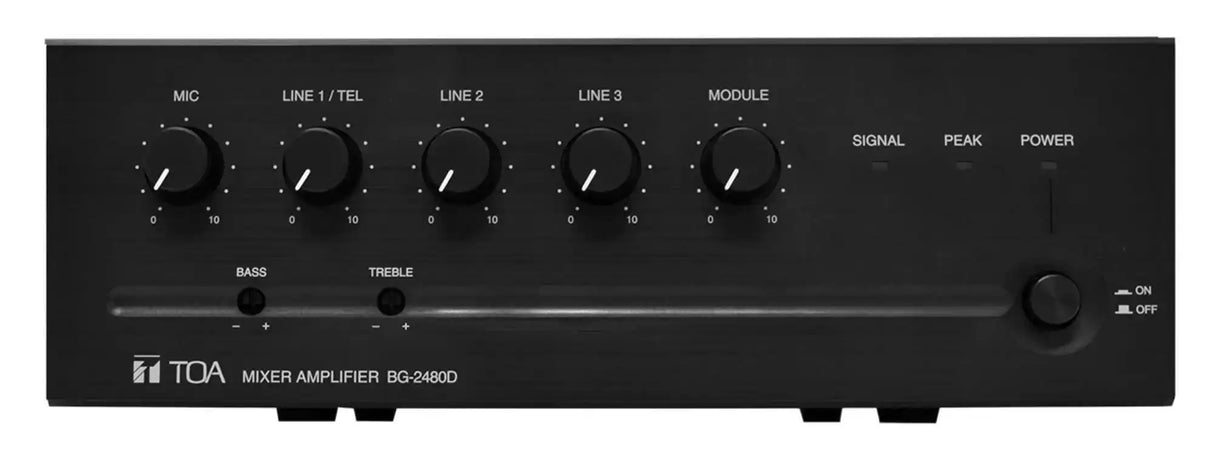

• Bass and treble controls — Front-panel tone shaping compensates for room acoustics and source material.

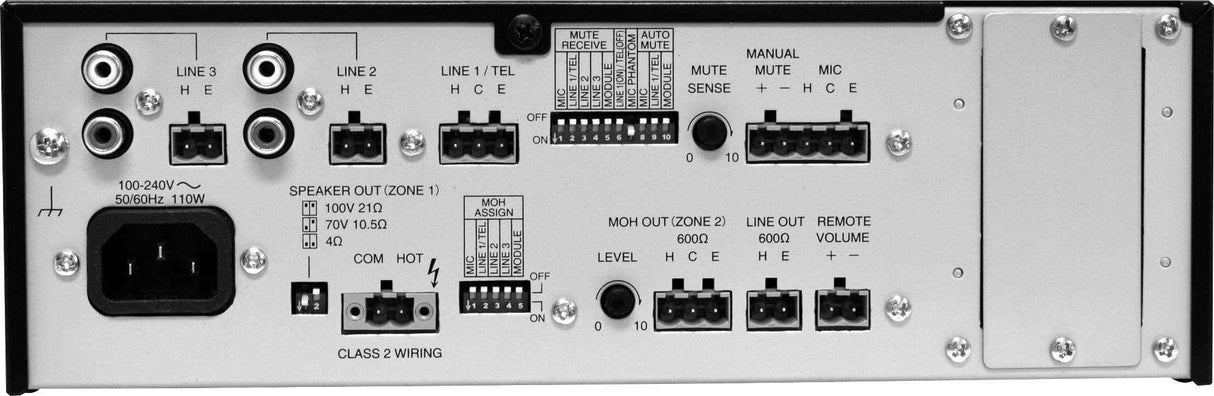

• Removable terminal blocks — Detachable input/output connectors speed wiring and service.
• Remote volume input — Supports localized volume control for individual zones.

Typical Applications

• Conference room
• House of worship
• Multi-purpose room
• Commercial meeting space
• Training room
• Auditorium

Technical Specifications

Frequently Asked Questions

What speaker systems does the BG-2480D-AM support? It drives 70V and 100V high-impedance distributed lines as well as 4-ohm low-impedance loads, with minimum line impedances of 10.5 ohm at 70V and 21 ohm at 100V.

How many sources can it mix? Five inputs, including a balanced mic input, a balanced line/telephone input, two stereo RCA line inputs, and unbalanced line inputs.

Does it support paging priority over music? Yes. Automatic or manual mute lowers background music when a priority page is active.

Can phantom power be enabled for a condenser mic? Yes. Phantom power is switched on or off through the DIP switch settings.

Is remote volume control possible? Yes. An external remote volume control input supports localized level adjustment.

Is warranty and support available? Yes. TOA products carry the manufacturer's warranty; contact Creation Networks for system design and support.
