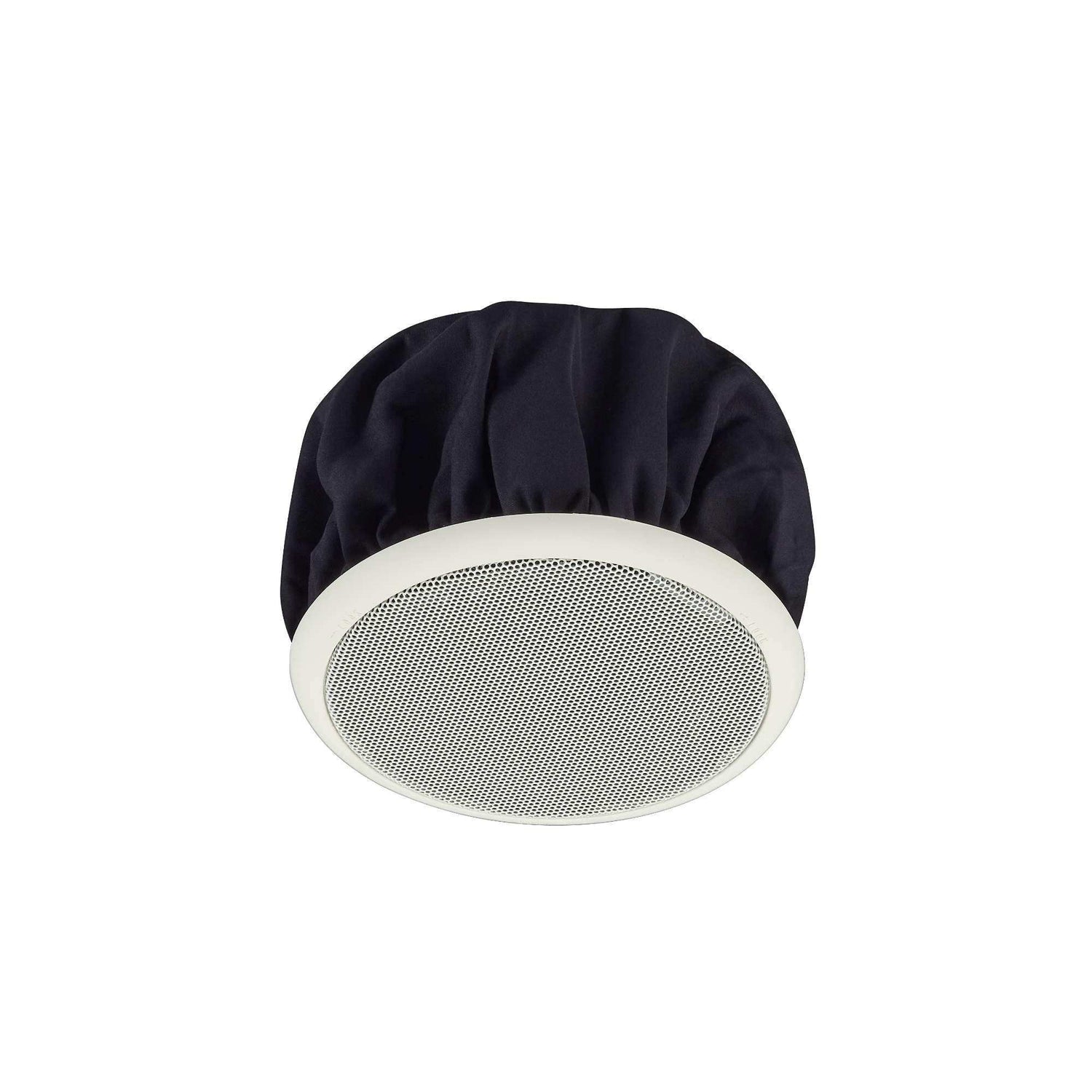

TOA F-1522SC – 4″ Wide-Dispersion Ceiling Speaker
Product Overview
The TOA F-1522SC is a 4-inch wide-dispersion ceiling speaker built for clear, even sound in commercial interiors. This flush-mount ceiling speaker uses a full-range cone in a bass-reflex enclosure and includes a built-in 25/70.7/100 V matching transformer for distributed audio systems. Its wide 160-degree dispersion spreads voice and music evenly across a room from fewer speakers. It suits offices, retail floors, conference rooms, and other commercial meeting spaces.
Product Description
Even ceiling coverage with fewer devices is the goal in most commercial audio designs, and the F-1522SC is engineered to deliver it from a compact 4-inch footprint. The full-range 12 cm cone in a bass-reflex enclosure produces a wide frequency range of 65 Hz to 18 kHz, supporting both paging and background music. A built-in matching transformer offers selectable taps for 100 V, 70.7 V, and 25 V lines, so installers can balance many speakers across a constant-voltage system and add or rebalance them later. The wide 160-degree dispersion at typical voice frequencies means each speaker covers more floor area, reducing the count needed for uniform sound. The speaker mounts flush into ceiling panels up to 37 mm thick, giving a clean architectural finish. Designers specify it for offices, retail spaces, conference rooms, and multi-purpose rooms that need discreet, intelligible audio. Low-impedance 8- and 16-ohm operation is also available where a transformer is not used. The result is a versatile ceiling speaker that fits cleanly into distributed 70/100 V audio systems.
Key Features
- Wide 160° Dispersion — Spreads voice and music evenly so fewer speakers cover a given area.
- Built-In Matching Transformer — Offers 25, 70.7, and 100 V taps for distributed constant-voltage systems.
- Full-Range Bass-Reflex Design — A 12 cm cone reproduces 65 Hz to 18 kHz for paging and music.
- Flush Ceiling Mount — Installs into ceiling panels up to 37 mm thick for a clean finish.
- Low-Impedance Option — Supports 8- and 16-ohm operation where no transformer is used.
- Compact Footprint — The 4-inch format fits tight ceiling-cavity and plenum conditions.
Technical Specifications
| Speaker | 12 cm (3.94 in) full-range cone, bass-reflex |
| Frequency Response | 65 Hz – 18 kHz |
| Sensitivity | 88 dB SPL (1 W / 1 m) |
| Dispersion | 160° (1–4 kHz avg.) |
| Power Handling | 18 W (8 Ω) / 12 W (16 Ω) / 6 W (70.7 or 100 V) |
| Taps (100 V) | 6 W / 3 W |
| Taps (70.7 V) | 6 W / 3 W / 1.5 W |
| Taps (25 V) | 0.75 W / 0.4 W / 0.2 W |
| Transformer | Built-in 25 / 70.7 / 100 V |
| Mounting | Ceiling panels up to 37 mm thick |
Specifications per the TOA F-1522SC datasheet.
