TOA Electronics 4-Channel Digital Amplifier (500W Per Channel, 70V) - DA-500F-HLCU
TOA Electronics 4-Channel Digital Amplifier (500W Per Channel, 70V) - DA-500F-HLCU is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
TOA Electronics 4-Channel Digital Amplifier (500W Per Channel, 70V)...
Product Overview
The TOA DA-500F-HL is a 4-channel Class D digital power amplifier built for multi-zone commercial audio systems that demand high output in a compact rack space. This 4-channel power amplifier provides an independent power section for each channel, along with control and monitor terminals for per-channel power switching and status monitoring. It is well suited to large-zone paging, background music, and sound reinforcement in commercial facilities, and mounts in a standard 2RU EIA equipment rack.
Product Description
The DA-500F-HL uses efficient Class D circuitry to deliver high power with low heat dissipation and low power consumption, allowing units to be stacked without open spaces between them. Each channel has a front-panel level control, a removable terminal-block input, and a built-in limiter and high-pass filter to help protect connected loudspeakers. Control and monitor terminals allow an external control panel or status display to switch power per channel and report power, protection, and fan status.

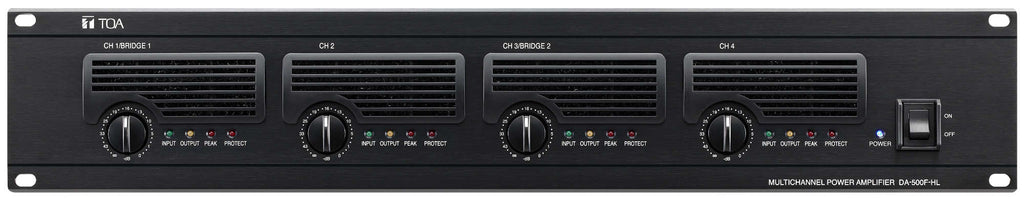

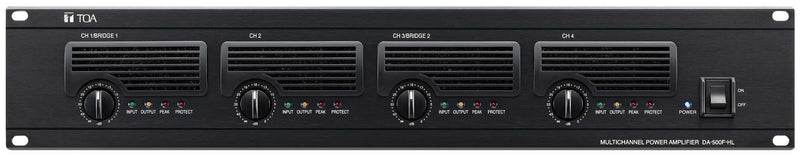

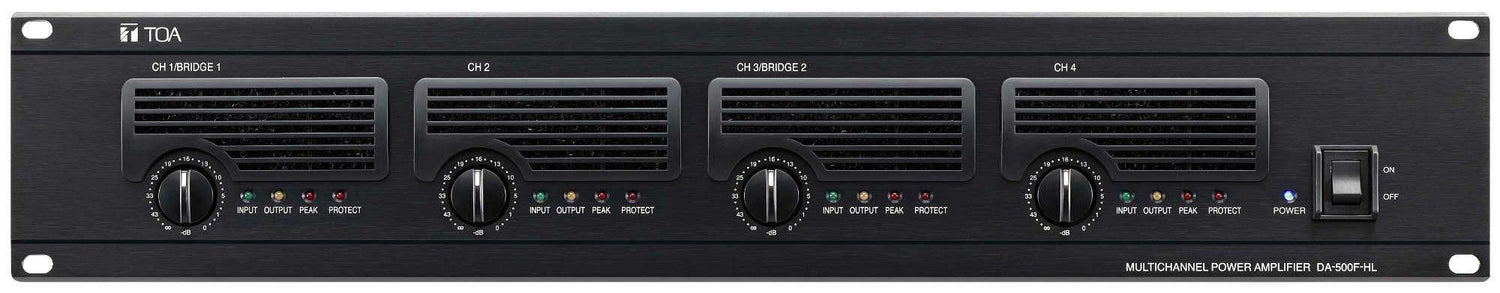

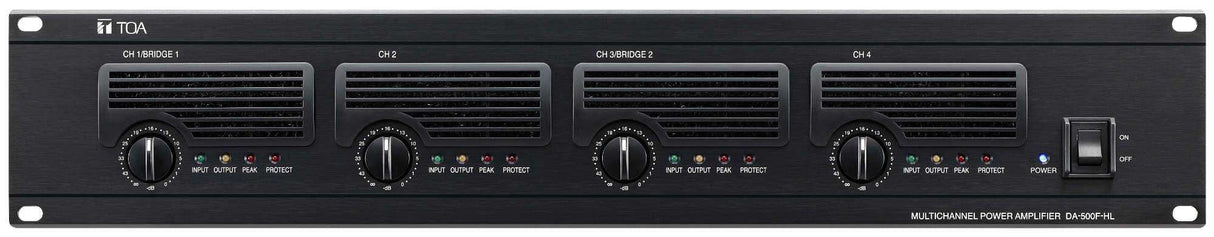

Comprehensive protection circuitry guards against overheating and overload, and front-panel LEDs indicate power, input, output, peak, and protect status for each channel. Volume control caps are included to prevent accidental level changes after commissioning. Browse other TOA power amplifiers to match the amplifier to your zone count and power requirements.
Key Features
- Four independent channels — Each channel has its own power section for reliable multi-zone operation.
- Efficient Class D design — Delivers high output with low heat dissipation and low power consumption.
- Built-in limiter and high-pass filter — On-board processing helps protect connected loudspeakers.
- Per-channel level control — Front-panel controls and removable terminal-block inputs simplify setup.
- Control and monitoring — Control/monitor terminals enable per-channel power switching and status reporting to an external panel.
- Comprehensive protection — Circuitry guards against overheating and overload, with front-panel power, input, output, peak, and protect LEDs.
- Space-saving rack design — A 2RU EIA chassis can be stacked without gaps to conserve rack space.
Typical Applications
- Conference room
- Boardroom
- Commercial meeting space
- Multi-purpose room
- Auditorium
- House of worship
Technical Specifications
| Number of Channels | 4 |
| Amplifier Type | Class D digital power amplifier |

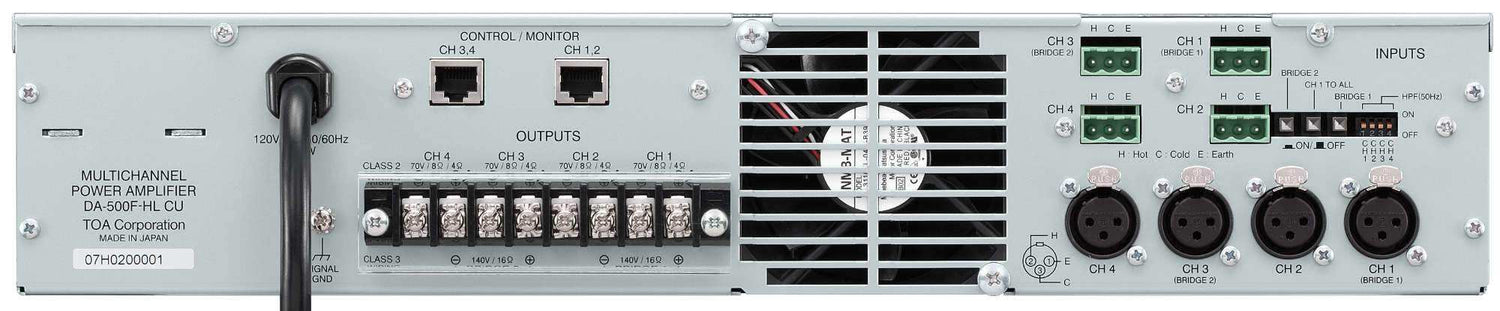

| Analog Audio I/O | 1 × 8-pin screw terminal output; 4 × 3-pin removable terminal-block inputs |
| On-board Processing | Built-in limiter and high-pass filter per channel |
| Indicators | Front-panel power, input, output, peak, and protect LEDs (per channel) |
| Cooling | Forced-air cooling with low heat dissipation |
| Mounting | EIA standard equipment rack, 2RU; stackable without open spaces |
Note: Verify exact rated output power and load configuration against the current TOA DA-500F-HL specification sheet before final system design.
Frequently Asked Questions
How many channels does the DA-500F-HL provide?
It is a 4-channel amplifier, with an independent power section for each channel.
Can each channel be controlled separately?
Yes. Control and monitor terminals allow per-channel power switching and status monitoring from an external control or display panel.
Does it protect connected loudspeakers?
Each channel includes a built-in limiter and high-pass filter, and the amplifier has comprehensive overheat and overload protection.
How much rack space is required?
The amplifier occupies 2RU in a standard EIA rack and can be stacked without gaps between units.
What inputs and outputs are provided?
Four 3-pin removable terminal-block inputs and a single 8-pin screw-terminal output strip.
How do I confirm the exact power rating for my zones?
Confirm rated output and load configuration against the current TOA DA-500F-HL specification sheet, or contact Creation Networks for system design assistance.
