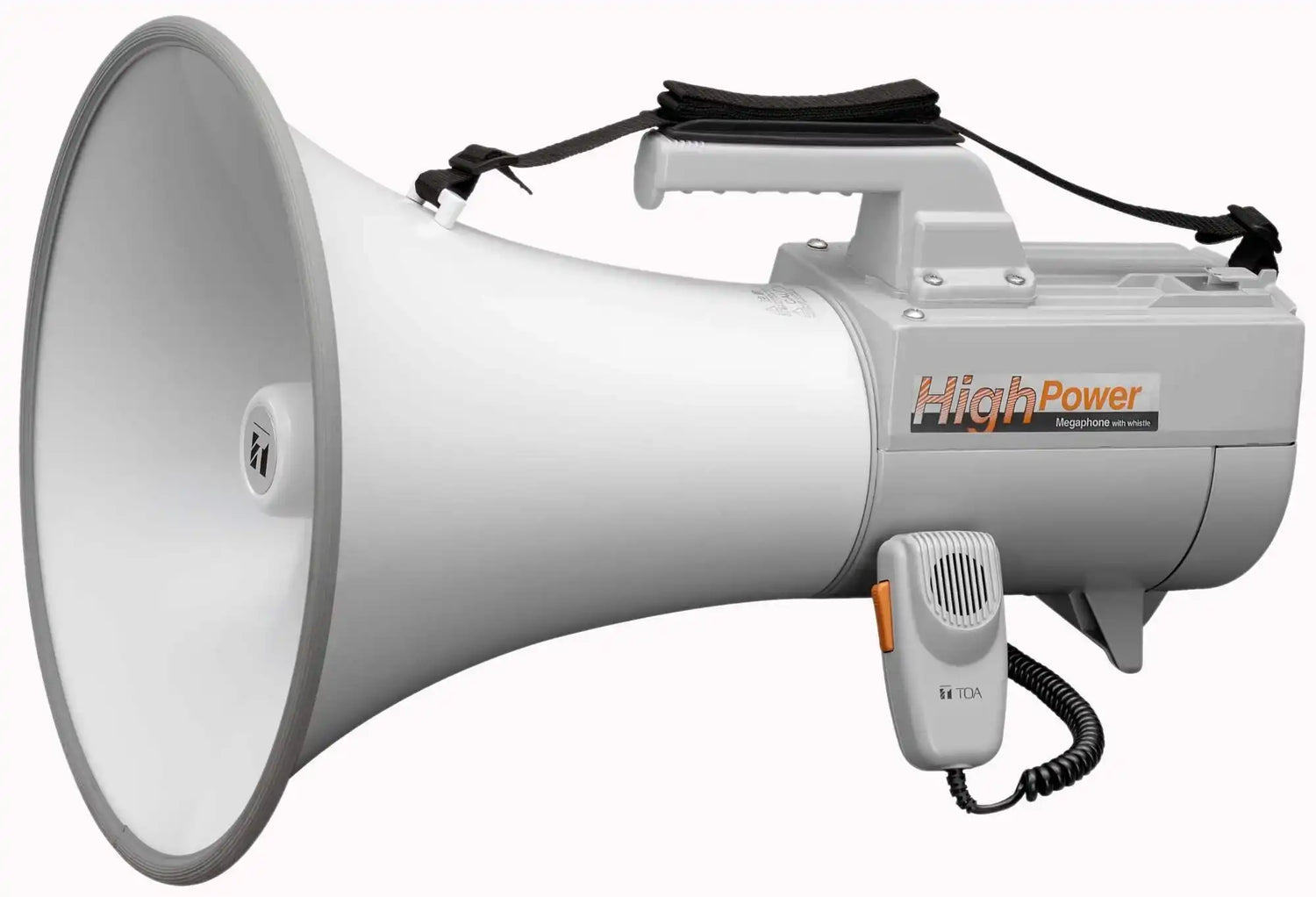

TOA Electronics 30W Shoulder-Held Megaphone with Whistle and Detachable Microphone (Gray) - ER-2230W
TOA Electronics 30W Shoulder-Held Megaphone with Whistle and Detachable Microphone (Gray) - ER-2230W is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
TOA Electronics 30W Shoulder-Held Megaphone with Whistle and Detach...
Product Overview
The TOA ER-2230W is a 30 W rated shoulder-held megaphone with a detachable handheld microphone and built-in whistle signal, engineered for high-volume emergency communication, field operations, and crowd management over distances up to 800 m (voice) and 1,000 m (whistle). Featuring a polyimide diaphragm and optional stand-mount capability, the ER-2230W is a professional-grade portable public address solution for outdoor command posts, public safety, emergency management, and event operations.
Product Description
The ER-2230W operates on 10 × D-cell batteries for approximately 17 hours of continuous use, eliminating dependency on AC power in the field. The detachable handheld microphone includes its own volume control and on/off switch, providing flexible operator ergonomics for shoulder-carry use. Auxiliary input and external microphone input (each with volume control) accommodate additional audio sources — such as a radio receiver or alert tone player. A DC power input allows operation from a vehicle battery or generator when primary batteries are depleted. A battery level indicator meter provides field status monitoring. The included splash-proof cover protects against field weather conditions. The ER-2230W can be mounted to the optional ST-16A speaker stand for stationary command post deployments. Explore TOA megaphones at Creation Networks.
Key Features
- 30 W Rated / 45 W Max Output — High-power audio projection for voice commands up to 800 m and whistle alerts up to 1,000 m.
- Polyimide Diaphragm — Advanced diaphragm material delivers high sound quality and field durability.
- Detachable Handheld Microphone — Separate microphone with volume control and on/off switch for ergonomic, flexible operation.
- Built-In Whistle Signal — Electronic whistle for immediate high-SPL alert signaling at distances up to 1,000 m.
- AUX and EXT Mic Inputs — Accept external audio sources (radio, alert player) or additional microphones with volume control.
- DC Power Input — Supports 12 V vehicle battery or generator power for extended field deployment when D-cells are unavailable.
- 17-Hour Battery Life — 10 × D-cell batteries provide extended endurance for sustained operations.
- Optional Stand Mount — Compatible with optional ST-16A speaker stand for stationary command post or event use.
Typical Applications
- Emergency field operations
- Government and public safety
- Outdoor events and crowd management
- House of worship outdoor gatherings
- Campus emergency notification
Technical Specifications
| Model | TOA ER-2230W |
|---|---|
| Rated Output Power | 30 W (45 W max) |
| Voice Range | Approx. 800 m |
| Whistle Range | Approx. 1,000 m |
| Battery | 10 × D-cell |
| Battery Life | Approx. 17 hours continuous |
| External Inputs | EXT MIC input (with volume control), AUX input |
| DC Power Input | 12 V DC (external vehicle or generator power) |
| Diaphragm | Polyimide |
| Microphone | Detachable handheld with volume control and on/off switch |
| Signals | Voice, electronic whistle |
| Color | Gray |
| Optional Accessory | ST-16A speaker stand |
Frequently Asked Questions
What is the maximum voice projection range? Approximately 800 m for voice and 1,000 m for the whistle signal in open-field conditions.
How long do the batteries last? Approximately 17 hours of continuous use on 10 × D-cell batteries.
Can it be powered from a vehicle? Yes — a DC power input supports 12 V from a vehicle battery or generator for extended field deployment.
Can external audio sources be connected? Yes — AUX input and EXT MIC input accept radio receivers, alert players, or additional microphones with individual volume control.
Can it be mounted on a stand? Yes — compatible with the optional ST-16A speaker stand for stationary command post or outdoor event use.
Is it splash-proof? A splash-proof cover is included for protection against light rain and field weather conditions.
What warranty applies? Carries the TOA manufacturer warranty. Contact Creation Networks for support and available megaphone accessories.
