TOA F-05WT – 5 in. 2-Way Surface Mount Speaker System
Product Overview
The TOA F-05WT is a 5 in. 2-way surface mount speaker system designed for commercial and installed audio applications. With a bass-reflex enclosure, a 5 in. polypropylene woofer, and a 1 in. soft dome tweeter, it delivers clear, full-range audio for 70V or 100V distributed systems as well as direct 8 ohm operation.
Product Description
The F-05WT is part of the TOA F-BOX series of surface mount speakers built for installed sound in commercial spaces. Its bass-reflex enclosure extends low-frequency output from a compact cabinet, while the 4.5 kHz crossover ensures clean handoff between the 5 in. woofer and the 1 in. dome tweeter. Multiple transformer taps (70V: 30W/15W/7.5W/3.75W; 100V: 30W/15W/7.5W) let integrators tailor the power draw within a distributed line. At 90 dB sensitivity and a 100° × 100° coverage pattern, the F-05WT distributes audio evenly in rooms where wide, even coverage is required. Push-in spring terminals speed up installation. White ABS enclosure with a white grille suits drop ceiling, wall, and surface mounting in finished interior spaces. Rated for -10°C to +50°C operating temperature.
Key Features
- 5 in. 2-way surface mount speaker with bass-reflex enclosure
- 30W rated input, 60W/120W program and peak power handling
- 8 Ω direct operation plus 70V and 100V transformer taps for distributed systems
- 90 dB sensitivity, 60 Hz to 20 kHz frequency response, 4.5 kHz crossover
- 100° × 100° coverage pattern for wide, even room coverage
- 5 in. polypropylene woofer + 1 in. soft dome tweeter; push-in spring terminals
Technical Specifications
| Enclosure Type | Bass-reflex (ported) |
|---|---|
| Woofer | 5 in. polypropylene cone |
| Tweeter | 1 in. soft dome |
| Crossover Frequency | 4.5 kHz |
| Rated Input Power | 30 W |
| Program / Peak Power | 60 W / 120 W |
| Impedance | 8 Ω |
| 70V Taps | 30 W / 15 W / 7.5 W / 3.75 W |
| 100V Taps | 30 W / 15 W / 7.5 W |
| Sensitivity | 90 dB (1 W / 1 m) |
| Frequency Response | 60 Hz to 20 kHz |
| Coverage Pattern | 100° × 100° |
| Input Terminal | Push-in spring terminal |
| Dimensions (W x H x D) | 162 x 274 x 164 mm (6.38 x 10.79 x 6.46 in.) |
| Weight | 2.7 kg (5.95 lb) |
| Operating Temperature | -10°C to +50°C (14°F to 122°F) |

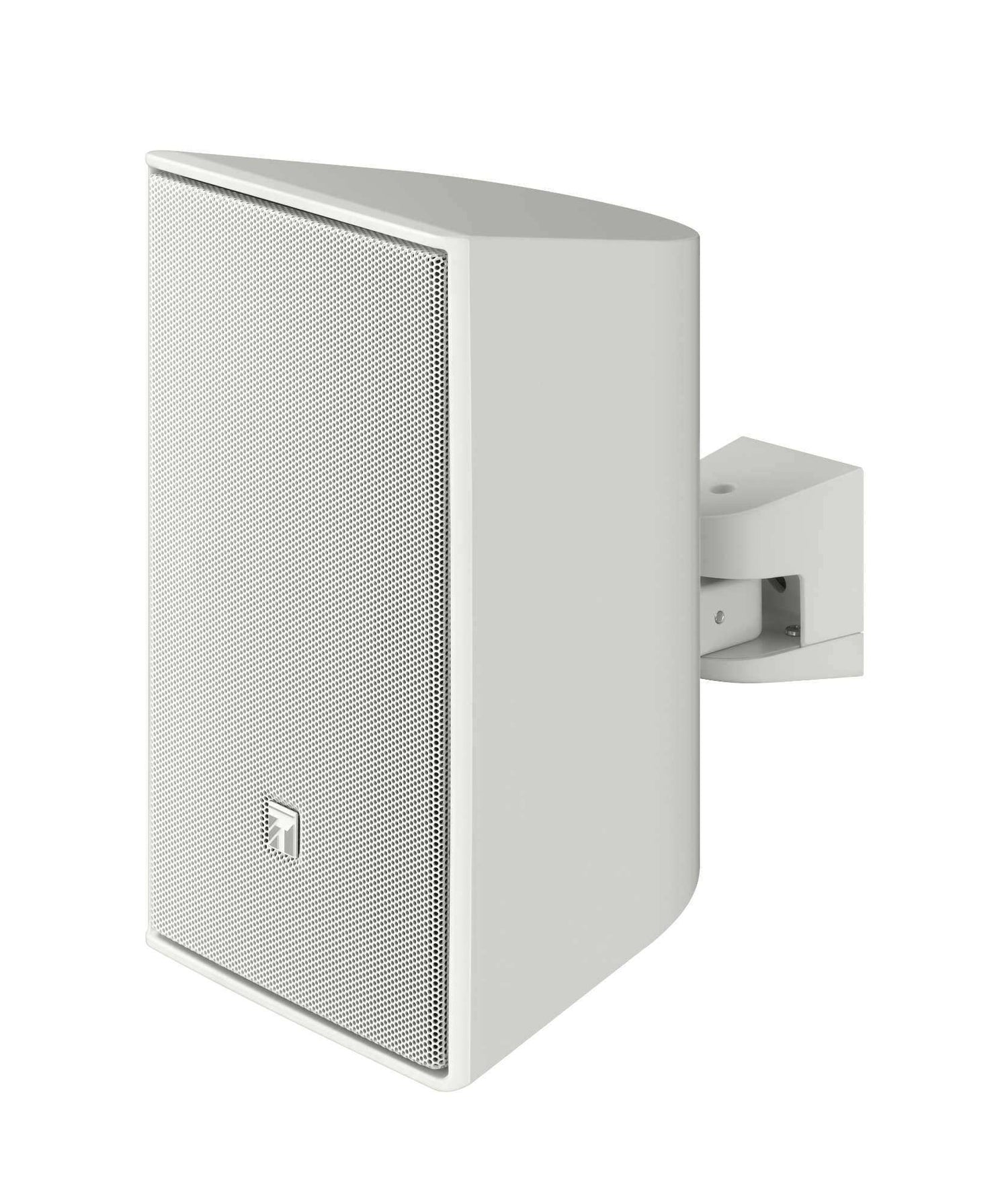

| Finish | White ABS, white grille |
