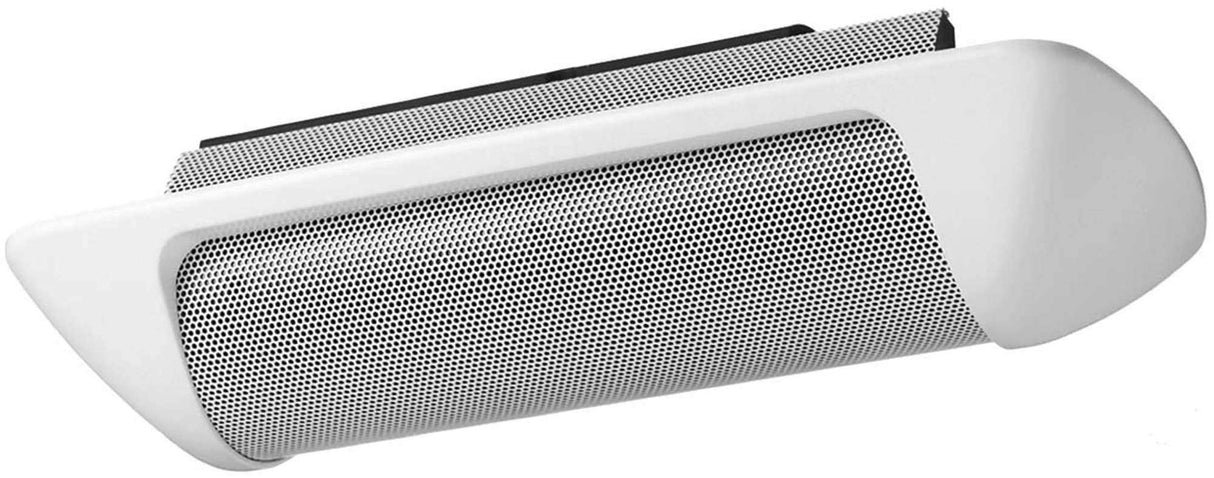

TOA H-1 EX – 2-Way Interior Design Speaker, 90W
Product Overview
The TOA H-1 EX is a 90W 2-way interior design speaker with a sealed enclosure, suitable for wall or ceiling installation in commercial and hospitality spaces where aesthetics and audio performance both matter. It operates on 70.7V, 100V, or low-impedance lines.
Product Description
The H-1 EX pairs a 3-inch × 2-inch Neodymium-magnet cone woofer with a 1-inch Ferrofluid-cooled balanced-dome tweeter, crossed over at 5 kHz, delivering a 120 Hz–20 kHz frequency response and 85 dB sensitivity (1W/1m). The built-in 70.7V/100V matching transformer provides selectable taps of 12W, 6W, 3W, and 1.5W (70.7V) or 12W, 6W, and 3W (100V), plus direct 4Ω and 16Ω options. Its sealed enclosure and white finish blend into architectural environments without visual disruption. Order the H-1 EX at creationnetworks.net.
Key Features
- 90W continuous program power handling; 85 dB sensitivity (1W, 1m)
- 2-way: 3×2-inch Neodymium woofer + 1-inch Ferrofluid-cooled balanced-dome tweeter
- Crossover frequency: 5 kHz; frequency response: 120 Hz – 20 kHz
- Built-in 70.7V/100V transformer with selectable taps (12W, 6W, 3W, 1.5W)
- Selectable 4Ω and 16Ω direct impedance options
- Sealed enclosure; wall or ceiling mountable
Technical Specifications
| Specification | Value |
|---|---|
| Program Power | 90 W |
| Sensitivity | 85 dB SPL (1 W, 1 m) |
| Frequency Response | 120 Hz – 20 kHz |
| Drivers | 3×2-inch Neodymium cone woofer + 1-inch Ferrofluid-cooled balanced-dome tweeter |
| Crossover Frequency | 5 kHz |
| 70.7V Taps | 12 W, 6 W, 3 W, 1.5 W |
| 100V Taps | 12 W, 6 W, 3 W |
| Low-Impedance Options | 4 Ω, 16 Ω |
| Enclosure Type | Sealed |
