TOA Electronics 2-Channel Network Audio Adapter with AD-246 AC Power Supply - NX-300PS

Product Overview

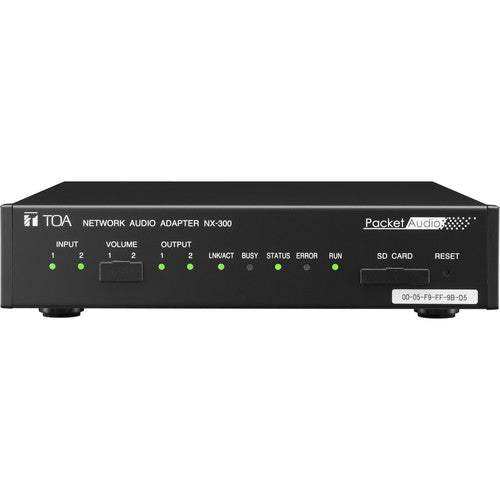

The TOA NX-300PS is a 2-channel network audio adapter that streams high-quality digital audio over standard IP networks using TOA's Packet Audio technology. Designed for distributed paging and background music across commercial AV systems, the NX-300PS converts balanced or unbalanced analog audio into networked streams that can travel across LANs and WANs. This bundle ships with the AD-246 AC power supply, making it a ready-to-deploy building block for scalable IP audio distribution in commercial meeting spaces and government facilities.

Product Description

The NX-300PS uses an advanced implementation of Packet Audio streaming with improved broadcast capacity and system expandability, including WAV file playback support. Audio is digitized with 24-bit converters at a 48 kHz sample rate for clean, professional reproduction across a 50 Hz to 18 kHz frequency response. Its two input channels are balanced/unbalanced changeable with selectable LINE or MIC operation, adjustable volume, and a -16 dB PAD, while the two transformer-isolated balanced outputs feed downstream amplifiers and processors. On the network side, the 10BASE-T/100BASE-TX interface supports auto-negotiation and a full suite of protocols, and up to 500 NX-300 units can be connected to one another over a LAN for large distributed systems. Eight channels of no-voltage make-contact control input allow integration with paging logic and external control. Powered by 24 V DC or the included AD-246 adapter, the rack-friendly half-width chassis fits cleanly into commercial racks. Explore more TOA IP audio and networked paging hardware at Creation Networks.

Key Features

• Packet Audio Streaming — Distributes high-quality digital audio over IP networks with improved broadcast capacity and expandability.

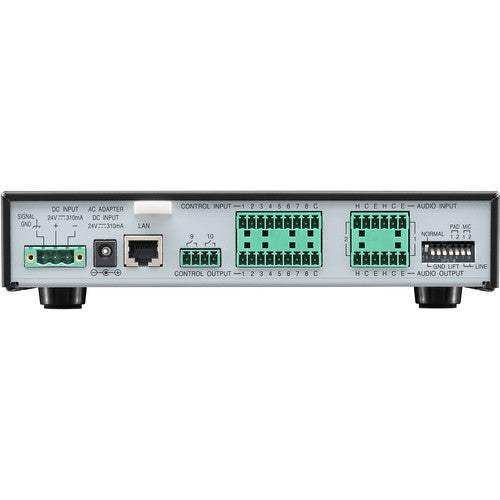

• 2-Channel I/O — Two balanced/unbalanced inputs with LINE/MIC selection and two transformer-isolated balanced outputs handle a range of sources and loads.
• 24-Bit / 48 kHz Conversion — High-resolution converters deliver clean reproduction across a 50 Hz to 18 kHz response.
• Scalable to 500 Units — Up to 500 NX-300 adapters can be networked together for large, distributed audio systems.
• 8 Control Inputs — No-voltage make-contact inputs enable integration with paging logic and external control systems.
• Includes AD-246 Power Supply — Ships with the AD-246 AC adapter for ready 24 V DC operation out of the box.

Typical Applications

• Commercial meeting spaces
• Government spaces
• Multi-purpose rooms
• Broadcast studios

Technical Specifications

Frequently Asked Questions

What does the NX-300PS do?
It converts analog audio into networked Packet Audio streams so you can distribute paging and background music over standard IP networks across a facility.

How many units can I network together?
Up to 500 NX-300 adapters can be connected to one another over a LAN, supporting large distributed audio systems.

Does it include a power supply?
Yes. The NX-300PS bundle includes the AD-246 AC power supply; the unit can also run from an external 24 V DC source.

Can it integrate with paging and control systems?
Yes. It provides eight no-voltage make-contact control inputs for integration with paging logic and external control.

How is it installed?
The half-width chassis mounts in a standard equipment rack with the appropriate bracket and connects to your network switch via 10/100 Ethernet.

Is a warranty included?
TOA commercial electronics are covered by the manufacturer's standard warranty; contact Creation Networks for current terms and integration support.
