TOA Electronics 16 Channel Audio Monitor Panel - MP-16PS
Product Overview

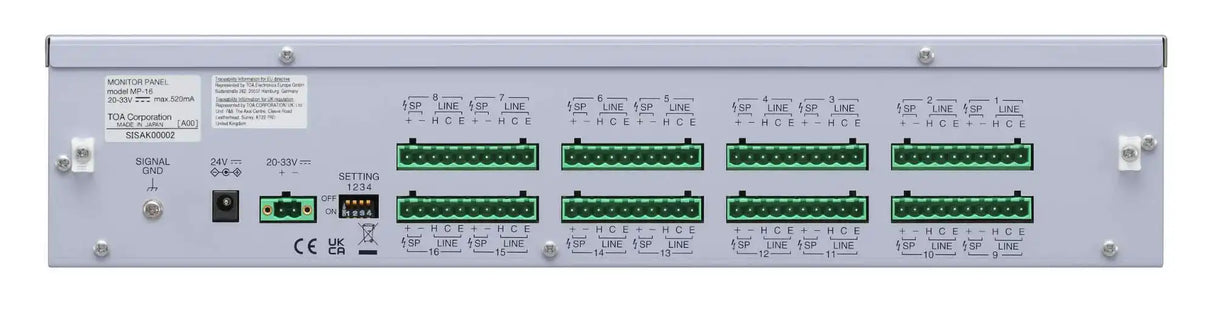

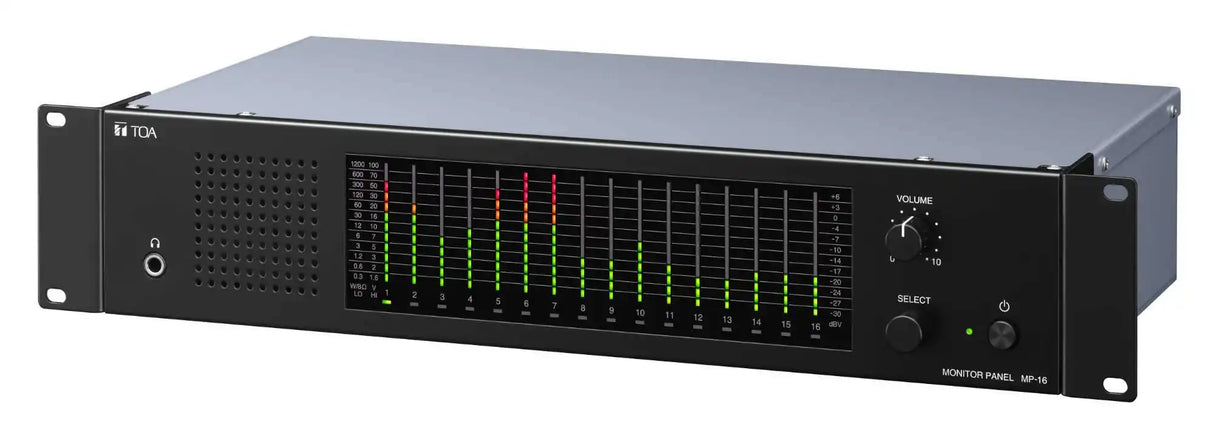

The TOA MP-16PS is a 16-channel audio monitor panel that lets technicians visually and aurally check multiple audio lines from a single rack-mounted unit. Built for distributed sound and paging systems, this commercial AV monitor panel handles line-level signals, low-impedance speaker lines, and 25/70/100V high-impedance speaker lines. It mounts in a standard EIA equipment rack and provides at-a-glance LED metering for fast verification and troubleshooting.
Product Description
The MP-16PS displays each of its 16 channels on dedicated 12-segment LED meters, giving a clear visual reference for signal presence and level across an entire system. Any one of the 16 channels can be monitored aurally through the built-in speaker or an optional headphone, which makes it easy to isolate a specific zone during commissioning or service. Its flexible input capacity covers line level, low-impedance speaker lines, and 25/70/100V high-impedance speaker lines, so it adapts to both background music and 70V/100V paging installations. The unit occupies two EIA rack units and accepts a dedicated AC adapter or a direct 24 V DC input. To complete a rack, browse compatible TOA amplifiers and TOA rack accessories on Creation Networks.
Key Features
- 16-channel monitoring — Tracks 16 separate audio lines from one rack-mounted panel for system-wide oversight.
- 12-segment LED meters — Per-channel LED metering gives a clear visual reference for signal level and presence.
- Aural monitoring — A built-in speaker, plus an optional headphone output, lets you listen to any selected channel.
- Versatile inputs — Accepts line level, low-impedance speaker lines, and 25/70/100V high-impedance speaker lines.
- Rack-mount design — Fits a standard EIA equipment rack in a 2U footprint for clean integration.
- Flexible power — Operates from a dedicated AC adapter or a direct 24 V DC input.
Typical Applications
- Broadcast studio
- Government space
- Commercial meeting space
Technical Specifications
| Channels | 16 audio channels |
| Metering | 12-segment LED meter per channel |
| Aural Monitoring | Built-in speaker; optional headphone output |
| Input Types | Line level, low-impedance speaker lines, 25/70/100V high-impedance speaker lines |
| Rack Size | EIA standard, 2 unit (2U) |
| Power Input | Dedicated AC adapter input or direct 24 V DC input |
Frequently Asked Questions
- How many channels can the MP-16PS monitor? It monitors 16 audio channels simultaneously, each with its own 12-segment LED meter.
- Can I listen to a channel, not just see the meter? Yes. Any one of the 16 channels can be heard through the built-in speaker or an optional headphone.
- What signal types does it accept? Line level, low-impedance speaker lines, and 25/70/100V high-impedance speaker lines.
- How much rack space does it need? It mounts in a standard EIA rack and occupies two rack units (2U).
- How is it powered? It uses a dedicated AC adapter or a direct 24 V DC input terminal.
