TOA HS-1500BT 15-Inch 300W Coaxial Array Speaker
TOA HS-1500BT 15-Inch 300W Coaxial Array Speaker - White is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.

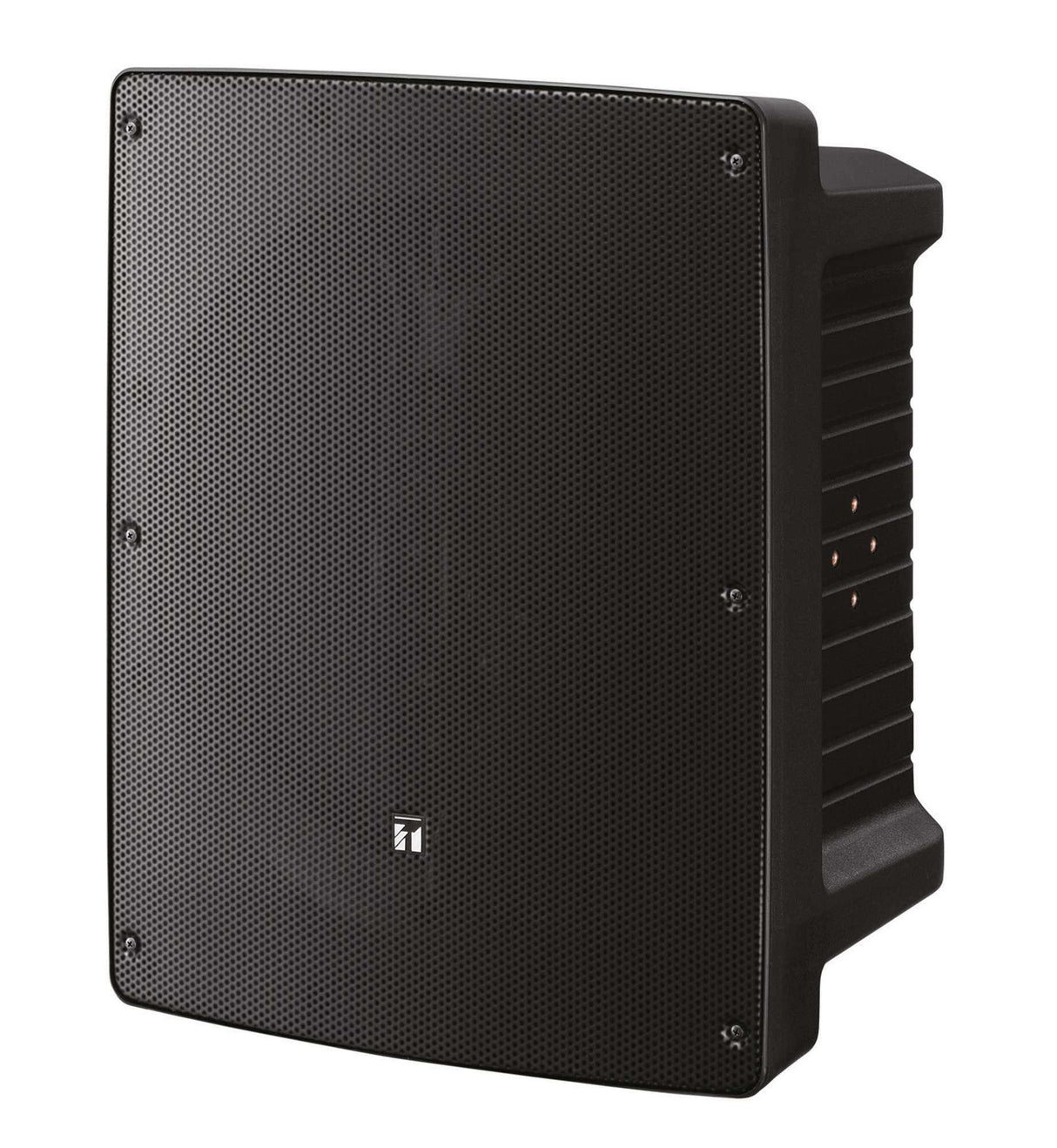

TOA HS-1500BT 15-Inch 300W Coaxial Array Speaker
Overview
The TOA HS-1500BT is a two-way 15-inch coaxial array speaker delivering 300W of continuous program power with well-controlled 90-degree horizontal x 40-degree vertical dispersion. Compatible with 8-ohm low-impedance and 70V/100V high-impedance distributed systems, it serves as a versatile main speaker for installations requiring high output and controlled coverage in a single box solution.
Description
At the center of the HS-1500BT is a 15-inch cone woofer paired with a coaxial tweeter array incorporating six balanced dome tweeters for smooth high-frequency reproduction. The 3 kHz crossover divides low and high frequencies cleanly, and the 98 dB sensitivity means the HS-1500BT reaches high SPL levels without straining the amplifier. A built-in 100V matching transformer provides selectable taps (60W, 30W, 15W) for constant-voltage distributed lines; 70V taps (60W, 30W, 15W, 7.5W) extend compatibility to North American 70V systems. Dual input connections — a Speakon connector and screw terminals — support both permanent fixed installations and mobile temporary use. The polypropylene enclosure is lightweight for its size, and a built-in carry handle makes transport straightforward.
Key Features
- 15-inch cone woofer plus coaxial 6-dome tweeter array, 3 kHz crossover
- 300W continuous program / 100W continuous pink noise at 8 ohms
- 98 dB sensitivity (1W/1m)
- 90-degree horizontal x 40-degree vertical coverage pattern
- Built-in 100V/70V matching transformer with selectable taps
- Dual input: Speakon connector and screw terminals
- Polypropylene enclosure with protective punched steel grill
- Can be used as a floor monitor
- Built-in carry handle for mobile deployment
- Weight: 14 kg; Dimensions: 451 x 560 x 400 mm
Typical Applications
- Main FOH speakers for mid-size venues, halls, and event spaces
- 70V/100V distributed PA systems in warehouses, sports facilities, and large retail
- Houses of worship requiring high-SPL coverage with controlled dispersion
- Schools, auditoriums, and multi-purpose facilities
- Mobile sound reinforcement and temporary event installations
- Floor monitor use on stages and platforms
Technical Specifications
| Specification | Value |
|---|---|
| Woofer | 15-inch (38 cm) cone type |
| Tweeter Array | 6x balanced dome, coaxial arrangement |
| Crossover Frequency | 3 kHz |
| Impedance | 8 ohms nominal |
| Continuous Program Power | 300W (8 ohms) |
| Continuous Pink Noise | 100W (8 ohms) |
| Sensitivity | 98 dB (1W/1m) |
| Coverage (H x V) | 90 degrees x 40 degrees |
| 70V Taps | 60W, 30W, 15W, 7.5W |
| 100V Taps | 60W, 30W, 15W |
| Input Connections | Speakon connector and screw terminals |
| Enclosure Material | Polypropylene |
| Dimensions (WxHxD) | 451 x 560 x 400 mm (17.8 x 22.0 x 15.75 in) |
| Weight | 14 kg (30.9 lb) |
Frequently Asked Questions

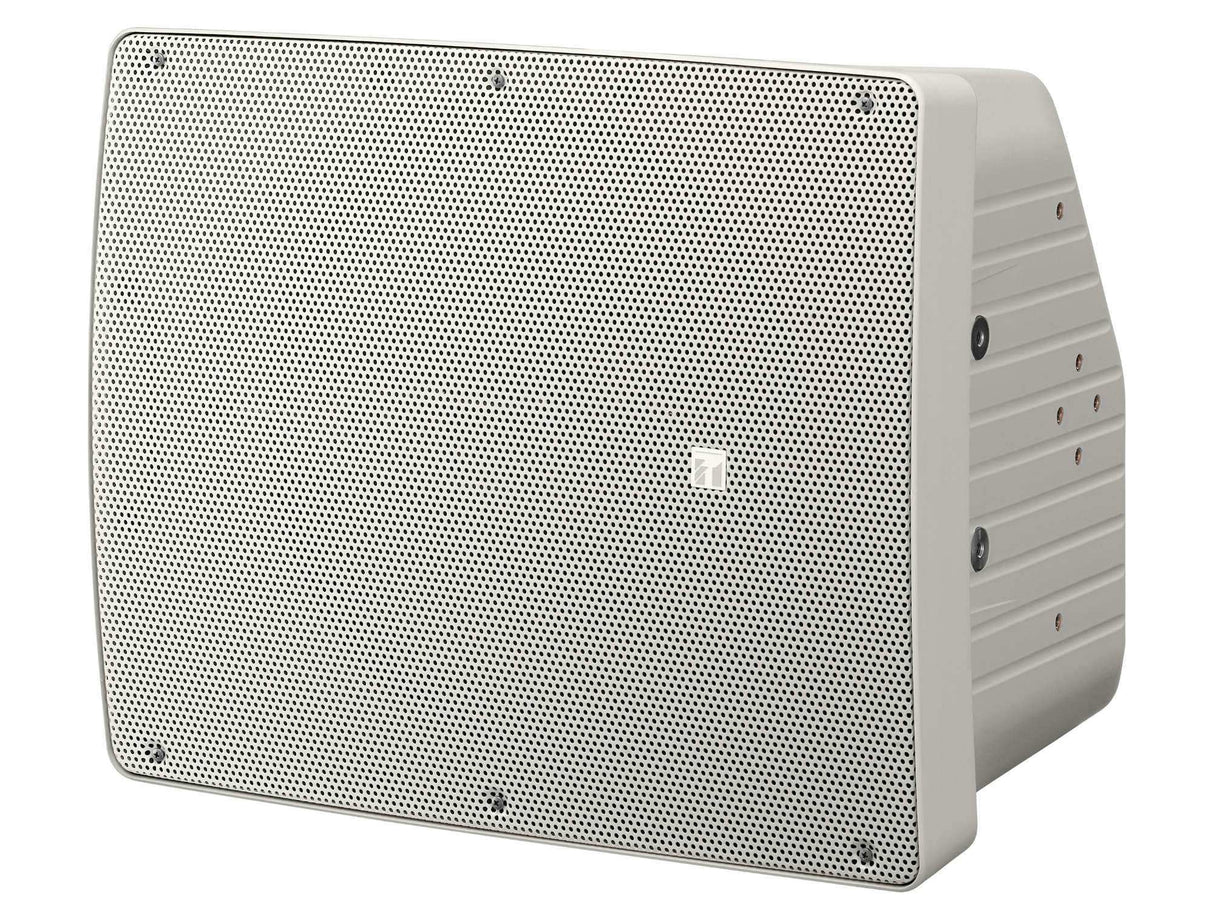

What is the difference between the HS-1500BT and HS-1500WT?
The HS-1500BT and HS-1500WT are identical in specifications — BT is finished in black and WT in white. Choose based on the visual requirements of your installation environment.
Can the HS-1500BT be used on a 70V distributed system?
Yes. The HS-1500BT includes a built-in 70V matching transformer with selectable power taps of 60W, 30W, 15W, and 7.5W, making it fully compatible with 70V constant-voltage distributed audio systems.
Is the HS-1500BT suitable for outdoor use?
The HS-1500BT is designed for indoor or covered installations. For permanent outdoor environments, consider the TOA SR-S series weatherproof line array speakers.
Can it be used as a floor monitor?
Yes. The HS-1500BT can be positioned as a floor wedge monitor on stages or platforms. The carry handle makes repositioning straightforward.
