TOA FB-120 12-Inch 600W Indoor PA Subwoofer
Product Overview

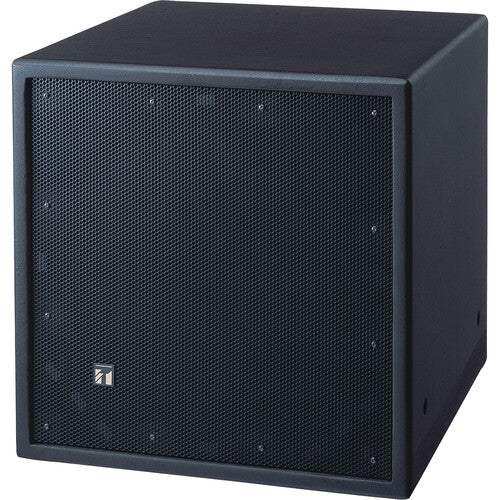

The TOA FB-120 is a compact indoor PA subwoofer delivering 600W program power through a 12-inch (30 cm) cone woofer in a wood enclosure. Designed to pair with TOA HX-5 Series full-range speakers, it extends system bass coverage down to 40 Hz for permanent and temporary sound reinforcement installations. DEAL: On Sale.
Product Description
The FB-120 covers 40 Hz to 1.2 kHz at an 8-ohm nominal impedance, with dual Speakon NL4 connectors and an M4 screw terminal supporting loop-through wiring to chain additional units from a single amplifier channel. Its compact 408 × 408 × 450 mm wood cabinet mounts in multiple configurations — floor, wall, ceiling, corner, or rigging — for flexible permanent and temporary setups. A carry handle supports single-person repositioning. At 15 kg (33 lb) and rated for 200W RMS continuous, the FB-120 delivers usable bass reinforcement in small to medium indoor venues.
Key Features
| Feature | Benefit |
|---|---|
| 12-inch (30 cm) Cone Woofer | Covers 40 Hz to 1.2 kHz for effective low-frequency reinforcement |
| 600W Program Power | High headroom output for demanding PA applications |
| 8-Ohm Passive Load | Direct connection to amplifier speaker outputs without additional processing |
| Dual Speakon NL4 + Screw Terminal | Loop-through connectivity for cascading multiple subwoofers |
| Multi-Mount Options | Floor, wall, ceiling, corner, or rigging for flexible placement |
| Built-in Carry Handle | Single-person transport for temporary or repositionable installs |
| Wood Enclosure | Dense construction reduces panel resonance for cleaner bass output |
| Designed for HX-5 Series | Engineered to complement TOA HX-5 full-range speakers as a matched system |
Typical Applications
The TOA FB-120 suits indoor venues requiring dedicated subwoofer coverage: corporate event spaces and conference rooms with hybrid AV systems, retail and hospitality BGM setups needing extended bass, live music or performance venues pairing with TOA HX-5 line arrays, and houses of worship seeking low-frequency reinforcement for music and worship content. Not rated for outdoor or weatherproof use.
Technical Specifications
| Specification | Details |
|---|---|
| Model | TOA FB-120 |
| Configuration | Subwoofer, bass-reflex |
| LF Driver | 1x 12" / 30 cm cone woofer |
| Power Handling | 200W RMS / 600W program |
| Frequency Range | 40 Hz - 1.2 kHz |
| Impedance | 8 ohms |
| Maximum SPL | 96 dB SPL |
| Audio Connections | 2x Speakon NL4, M4 screw terminal |
| Enclosure Material | Wood |
| Mounting Options | Floor, wall, ceiling, corner, rigging |
| Dimensions (W x H x D) | 408 x 450 x 408 mm (16.1 x 17.8 x 16.1") |
| Weight | 15 kg (33.1 lb) |
| Use | Indoor only |
FAQ
- What full-range speakers does the FB-120 pair with? TOA designed the FB-120 specifically to complement HX-5 Series compact line array speakers, though it works with other 8-ohm full-range speaker systems requiring a passive subwoofer.
- What amplifier power is required? The FB-120 is a passive speaker requiring an external amplifier rated for an 8-ohm load, supplying up to 200W RMS continuous.
- Can multiple units be chained? Yes — dual Speakon NL4 connectors allow loop-through wiring to cascade additional FB-120 units from a single amplifier output.
- Is the FB-120 rated for outdoor use? No — the FB-120 is designed for indoor use only and has no weather or moisture protection.
- What mounting methods are supported? Floor standing, wall mounting, ceiling mounting, corner placement, and rigging with appropriate hardware.
