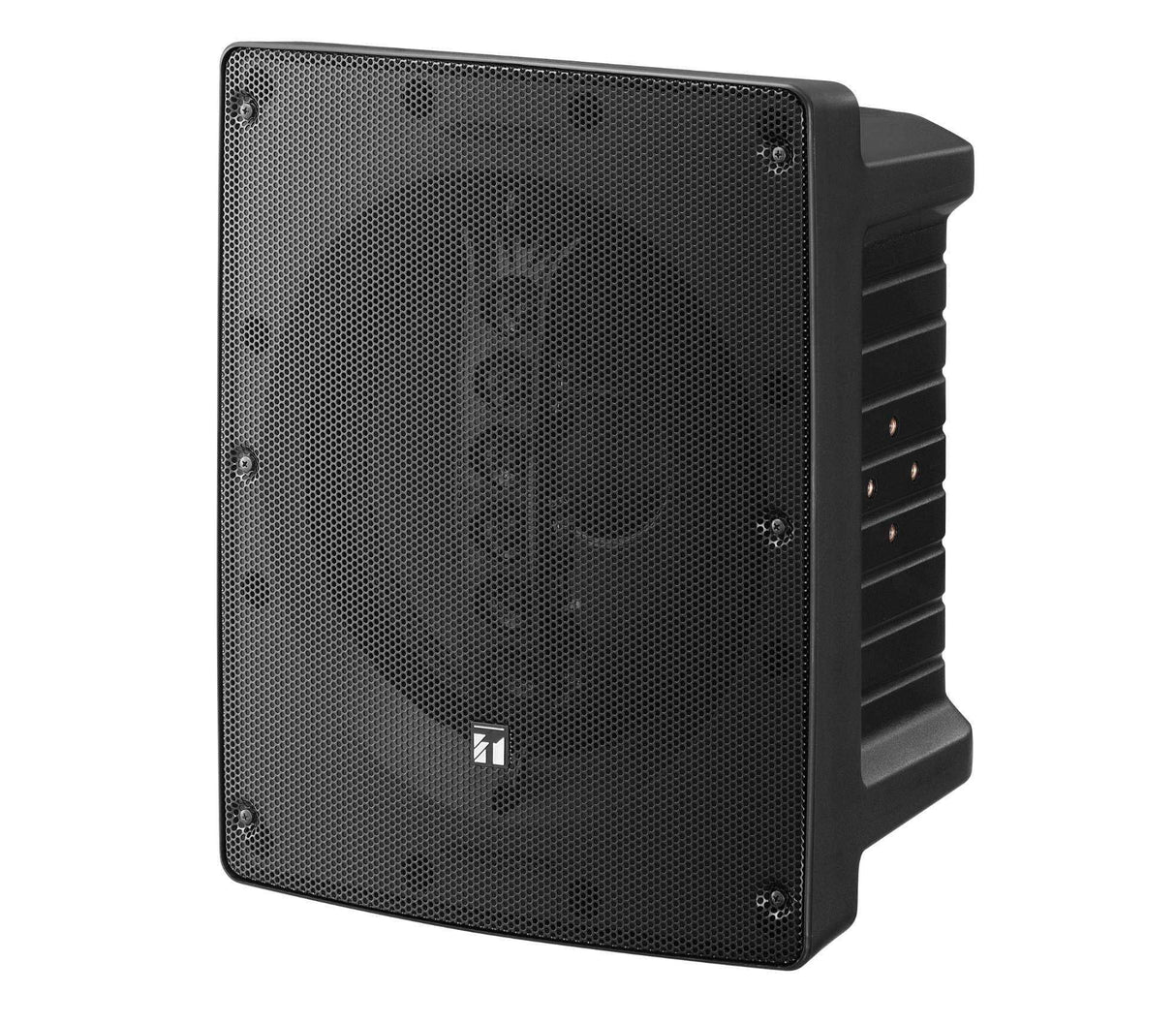

TOA Electronics 12" 300W Coaxial Array Speaker - HS-1200CU
Overview
The TOA HS-1200CU is a 12-inch two-way coaxial array speaker combining a 12" cone woofer with a coaxial tweeter array of six balanced dome tweeters for controlled, even coverage in commercial AV applications. Its built-in 70V/100V transformer and 90° × 40° controlled directivity make it ideal for distributed audio in venues where consistent speech intelligibility and music quality are critical.
Description
Unlike conventional two-way designs with separated woofer and tweeter, the HS-1200CU's coaxial tweeter array is mounted concentrically with the 12" woofer, ensuring the high-frequency array and low-frequency driver share the same acoustic axis. This produces consistent tonal balance across the entire 90° × 40° coverage pattern with minimal off-axis coloration. A 3 kHz crossover manages the transition between the cone woofer and tweeter array. The speaker operates in both 8 Ω direct-drive mode (up to 300 W continuous program) and 70V/100V constant-voltage distributed mode, with rear-panel selectable power taps. The polypropylene enclosure provides durability for permanent installations, and dual Speakon plus screw terminal connectivity accommodates both touring and fixed-install wiring practices. A carry handle eases transportation during temporary deployments.
Key Features
- 12" cone woofer + coaxial array of six balanced dome tweeters
- Controlled directivity: 90° horizontal × 40° vertical
- Dual-mode: 8 Ω direct-drive or 70V/100V constant-voltage
- 70V power taps: 60 W, 30 W, 15 W, 7.5 W; 100V taps: 60 W, 30 W, 15 W
- 300 W continuous program / 100 W continuous pink noise at 8 Ω
- 97 dB SPL; 3 kHz crossover frequency
- Polypropylene enclosure with carry handle
- Dual input: Speakon and screw terminals
- Usable as a floor monitor
Typical Applications
- Houses of worship main and fill speakers in medium-size sanctuaries
- Conference centers and ballroom distributed audio
- Performing arts venue front-fill and delay speaker
- Multi-zone retail and hospitality BGM and paging
- Transportation terminal announcement and paging
Technical Specifications
| LF Driver | 12" cone woofer |
|---|---|
| HF Driver | Coaxial array: six balanced dome tweeters |
| Crossover | 3 kHz |
| Dispersion | 90° horizontal × 40° vertical |
| Rated Input (8Ω) | 300 W continuous program / 100 W continuous pink noise |
| 70V Power Taps | 60 W, 30 W, 15 W, 7.5 W |
| 100V Power Taps | 60 W, 30 W, 15 W |
| Impedance | 8 Ω |
| SPL | 97 dB (1 W, 1 m) |
| Enclosure | Polypropylene |
| Connections | Speakon and screw terminals (dual input) |
| Dimensions | 17.6" × 14.2" × 12.6" (W × H × D) |
FAQ
Can the HS-1200CU be used on a 70V distributed speaker system?
Yes. The HS-1200CU has a built-in transformer with selectable 70V taps (60/30/15/7.5 W) and 100V taps (60/30/15 W) for use in constant-voltage distributed audio systems. It also operates at 8 Ω for direct-drive applications.
What makes the coaxial tweeter array different from a standard horn tweeter?
The coaxial array places six balanced dome tweeters concentrically within the woofer so both drivers share the same acoustic center. This eliminates lobing and tonal shifts common in traditional two-way designs, producing consistent sound quality across the full 90° × 40° coverage pattern.
Can the HS-1200CU be used as a floor monitor?
Yes. The HS-1200CU's form factor and controlled dispersion pattern support floor monitor use in live sound or rehearsal applications.
What TOA amplifiers are recommended for driving the HS-1200CU?
For 70V distributed systems, see the TOA mixer amplifier and power amplifier range on Creation Networks, including the MA-725F matrix amplifier and A-5006 series mixer amplifiers.
