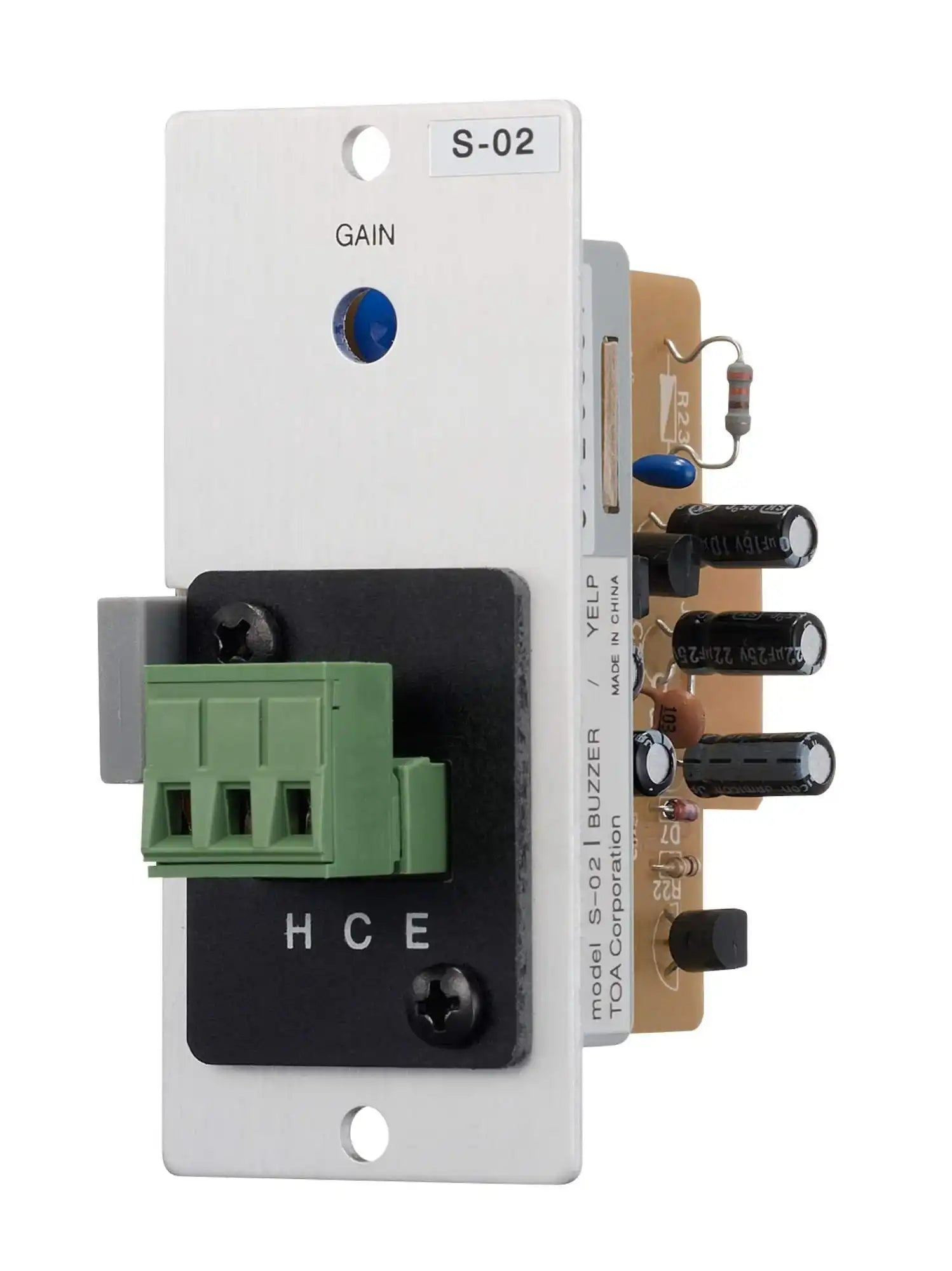

TOA S-02S – Buzzer/Yelp Alert Tone Module

Product Overview

The TOA S-02S tone generator module adds built-in buzzer and yelp alert tones to a 900 Series audio system, making it a useful component for paging, signaling, and notification applications. This 900 Series plug-in module produces each tone through a separate switch closure, so a system can sound a steady buzzer for general alerts or a yelp tone for higher-urgency signaling. As a dedicated alert tone module, it gives integrators a simple way to generate attention-getting signals without external sources. A gain control sets the tone output to the right level for the system.

Product Description

The S-02S installs in a 900 Series module slot and is powered by the host frame's 24 V DC supply, keeping alert tones available directly within the rack. A switch closure across the module's terminals activates the buzzer tone, while a separate closure triggers the yelp tone, and each sounds continuously for the duration of the contact. This makes the module suitable for shift-change signals, end-of-period bells in schools, and attention tones ahead of spoken pages. The gain control adjusts the output from off up to a 0 dB reference so the alert sits at an appropriate level within the program mix. Connection is made through a removable 3-pole terminal block that simplifies wiring to relays, timers, or manual switches. Because it follows the 900 Series module format, the S-02S can be combined with microphone, line input, and signal-processing modules in the same frame. The result is a flexible, rack-based signaling source for paging and mass-notification systems in commercial and institutional facilities.

Key Features

• Buzzer and Yelp Tones — Two distinct alert tones cover general signaling and higher-urgency notification from a single module.
• Independent Switch Triggers — Separate terminal closures select the buzzer or yelp tone, allowing flexible integration with timers and relays.
• Continuous Activation — Each tone sounds for the full duration of its switch closure for predictable, controllable signaling.
• Adjustable Output Gain — The off-to-0 dB control sets the alert level so tones balance correctly against program audio.
• Removable Terminal Block — The pluggable 3-pole connector speeds wiring to switches, relays, and timers during installation.
• 900 Series Compatibility — The standard module format installs in compatible TOA 900 Series mixer/amplifiers and main frames.
