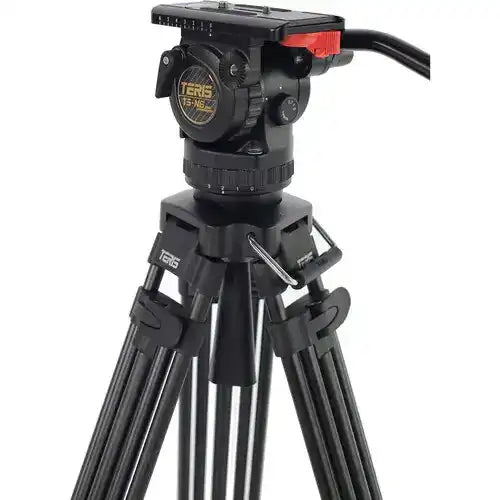

Teris TSN6 PLUS 75mm Fluid Head

Product Overview

The Teris TSN6 PLUS 75mm Fluid Head is a professional broadcast fluid head designed for camera rigs up to 7 kg, featuring a drop-in quick release plate with dual 1/4"-20 and 3/8"-16 camera screw options and a 75mm bowl base for use with standard broadcast tripods. At 2.09 kg, the TSN6 PLUS is one of the lightest professional fluid heads in the Teris lineup, making it the practical choice for ENG operators, documentary crews, and video journalists who prioritize portability without sacrificing head performance. Its aluminum construction provides the durability expected in broadcast field use.

Product Description

The TSN6 PLUS is built for camera packages in the 3–7 kg range — mirrorless video rigs with accessories, compact broadcast cameras, and ENG cameras in the light class. The 75mm bowl base is the broadcast industry standard for this payload class, providing a secure seating surface with fast leveling capability. Independent pan and tilt drag adjustment allows operators to tune head resistance separately on each axis, which is essential for maintaining smooth, consistent movement when panning across subjects or tilting through a reveal. The counterbalance system compensates for the forward weight of the camera and lens, preventing the head from tilting forward when the pan handle is released. The drop-in quick release plate uses dual screw options to accommodate cameras and cage systems with either 1/4"-20 or 3/8"-16 threaded mounting holes, and releases with a single lever for fast camera changes. At 2.09 kg, the TSN6 PLUS adds minimal weight to a portable field kit. The 7 kg payload capacity provides a practical margin above the weight of most mirrorless and compact broadcast camera packages, accommodating accessories such as follow focus systems, monitors, and radio microphone receivers without exceeding the rated load. The TSN6 PLUS is well matched to the Teris TSN6AL PLUS tripod system as a complete package, and functions equally well on any 75mm bowl tripod from other manufacturers.

Key Features

• 75mm Bowl Base — Industry-standard broadcast bowl size for cameras in the 3–7 kg payload class.
• 7 kg Payload Capacity — Accommodates mirrorless video rigs, compact broadcast cameras, and ENG cameras with accessories.
• 2.09 kg Head Weight — Lightweight aluminum construction for portable field kits and single-operator use.
• Drop-In Quick Release Plate — Dual 1/4"-20 and 3/8"-16 camera screws for fast, tool-free camera mounting and dismounting.
• Independent Pan and Tilt Drag — Separate drag adjustment on each axis for precise movement control.
• Counterbalance System — Prevents forward tilt under load and enables smooth starts and stops.
• Aluminum Construction — Durable field-tested material at reduced weight compared to heavier broadcast heads.

Typical Applications

• Broadcast ENG and news gathering with compact cameras
• Documentary field production
• Event and corporate video production
• Mirrorless cinema and video rigs
• Video journalism and solo operator work
• Compact broadcast camera operation

Technical Specifications

Frequently Asked Questions

Q: What cameras are suited to the TSN6 PLUS?
A: The 7 kg payload covers most mirrorless cameras with accessories, compact broadcast cameras such as the Sony PXW-Z90, and ENG cameras in the light class. Cameras and rigs approaching or exceeding 7 kg should use a head with a higher payload rating such as the Teris TS100.

Q: What tripods are compatible with the TSN6 PLUS?
A: Any tripod with a 75mm bowl fitting, including the Teris TSN6AL PLUS system and most professional 75mm bowl tripods from other manufacturers.

Q: How does the TSN6 PLUS compare to the TS100 fluid head?
A: The TSN6 PLUS uses a 75mm bowl and supports up to 7 kg. The TS100 uses a 100mm bowl and supports up to 12 kg. The TSN6 PLUS is the right choice for lighter camera packages where portability is a priority.

Q: Is the pan and tilt drag adjustable during operation?
A: Yes. The independent drag controls on both pan and tilt axes can be adjusted without interrupting the shot setup.

Q: Does the quick release plate fit standard camera bottom plates?
A: The drop-in plate uses 1/4"-20 and 3/8"-16 screw options, compatible with the bottom plate threading found on most professional cameras and cage systems.

Q: Can the TSN6 PLUS be purchased as part of a complete tripod system?
A: Yes. The TSN6 PLUS is the head component in the Teris TSN6AL PLUS Aluminum Tripod and Fluid Head System, available as a complete matched package.
