Teris TS1610CF-Q 2-Stage Carbon Fiber Tripod

Product Overview

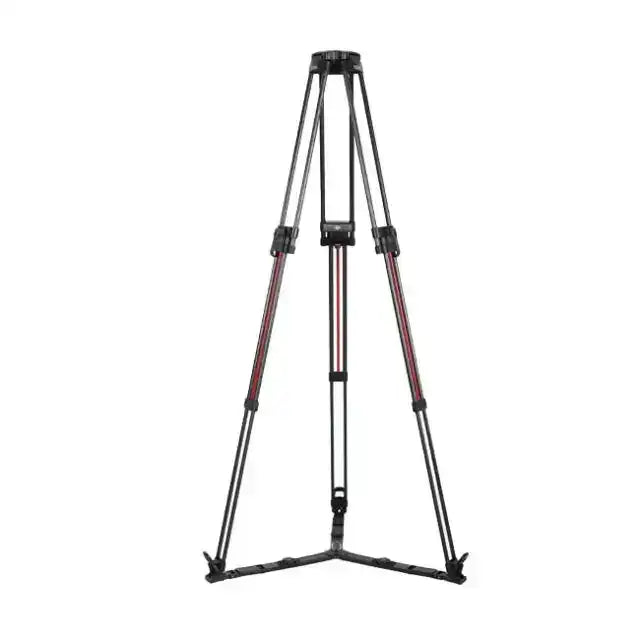

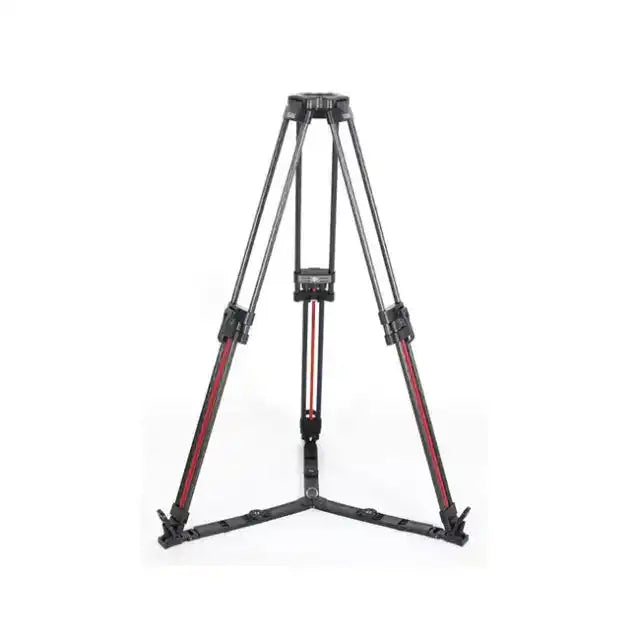

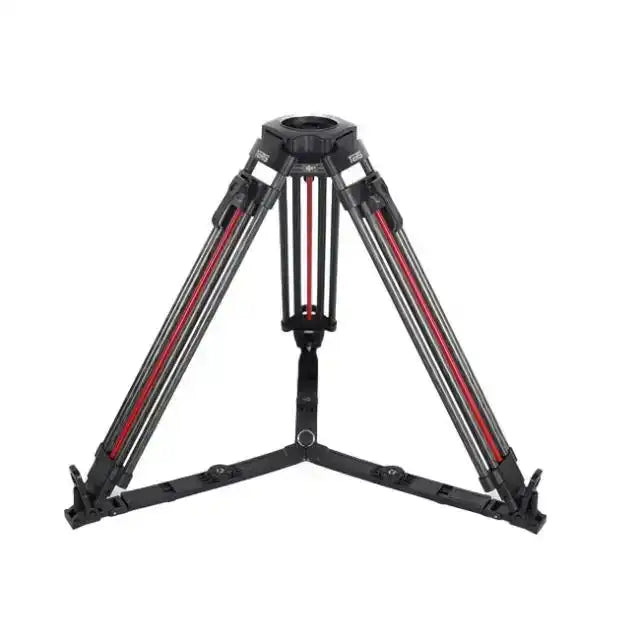

The Teris TS1610CF-Q 2-Stage Carbon Fiber Tripod is a field-proven broadcast and cinema tripod offering a verified 50 kg payload capacity with a 100mm bowl fitting and the convenience of a quick-release leg locking system. Weighing 3.98 kg, the TS1610CF-Q is built from carbon fiber for maximum stiffness and minimum weight, making it one of the most practical heavy-duty field tripods for ENG, documentary, and single-operator cinema crews. The two-stage legs extend to standard working heights and lock positively, providing a stable platform for fluid heads and camera packages in the 10–30 kg range.

Product Description

The TS1610CF-Q occupies the position between entry-level aluminum tripods and the full heavy-duty TS2210CF in the Teris lineup. With a 50 kg verified payload capacity, it handles any realistic broadcast or cinema camera and fluid head combination with a comfortable safety margin. The carbon fiber two-stage legs reduce system weight compared to aluminum alternatives while maintaining the rigidity required for stable, vibration-free fluid head operation. The 100mm bowl base accepts the full range of Teris 100mm fluid heads as well as third-party heads, giving operators the flexibility to pair the TS1610CF-Q with the head of their choice. The quick-release leg locks allow fast height adjustment in the field, which matters when repositioning during live events or documentary shoots where setup time directly affects the number of shots captured. At 3.98 kg, the tripod can be carried alongside a full broadcast camera package without significantly increasing total kit weight. The leg angle is adjustable for low-angle positions, and rubber feet provide secure footing across a range of surfaces. The TS1610CF-Q is compatible with Teris spreader accessories for use on uneven terrain or soft ground surfaces where additional leg stability is required. It is the practical choice for broadcast crews and documentary operators who need professional payload capacity and carbon fiber construction at a lower price point than the top-of-range TS2210CF.

Key Features

• 50 kg Payload Capacity — Handles professional broadcast and cinema camera packages with a substantial safety margin.
• Two-Stage Carbon Fiber Legs — Lightweight carbon fiber construction with two-stage height adjustment.
• 100mm Bowl Fitting — Direct compatibility with all standard 100mm bowl fluid heads.
• 3.98 kg Tripod Weight — Lightweight for payload capacity, practical for all-day field transport.
• Quick-Release Leg Locks — Fast leg height adjustment without twisting clamps.
• Adjustable Leg Angles — Variable leg spread for low-angle positions and uneven terrain.
• Spreader Compatible — Accepts Teris spreader accessories for enhanced stability on soft or uneven surfaces.

Typical Applications

• Broadcast ENG and field production
• Documentary and magazine production
• Cinema production with mid-to-heavy camera packages
• Live event and sports coverage
• Corporate and commercial video production
• Single-operator shoots requiring portable heavy-duty support

Technical Specifications

Frequently Asked Questions

Q: What fluid heads are compatible with the TS1610CF-Q?
A: Any fluid head with a 100mm bowl base, including the Teris TS100, TS120, and TS150 series, as well as most professional 100mm bowl heads from other manufacturers.

Q: How does the TS1610CF-Q differ from the TS2210CF?
A: The TS1610CF-Q has a 50 kg payload rating versus 100 kg for the TS2210CF. For the majority of broadcast and cinema camera packages, the TS1610CF-Q provides more than adequate payload margin at a lower price point.

Q: Can the TS1610CF-Q support a jib arm?
A: The 50 kg payload capacity supports compact jib arms. Verify total jib and camera payload weight before use.

Q: Is a spreader included with the TS1610CF-Q?
A: The TS1610CF-Q is compatible with Teris spreader accessories, available separately. Contact Creation Networks for options.

Q: How does the quick-release leg lock compare to lever-lock systems?
A: The quick-release leg lock system on the TS1610CF-Q allows fast height changes in the field, suitable for run-and-gun production work where setup speed is important.

Q: What is the maximum and minimum working height?
A: Contact Creation Networks for exact height specifications for the TS1610CF-Q two-stage legs.
