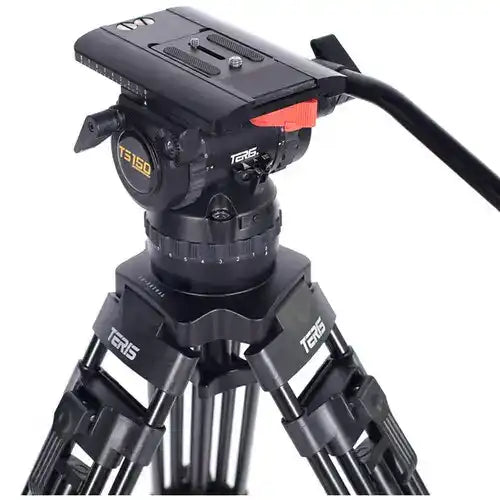

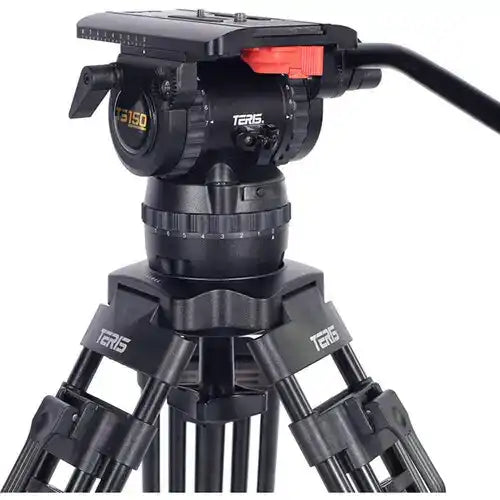

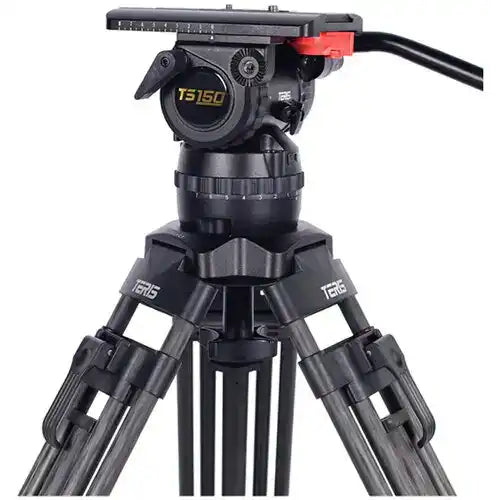

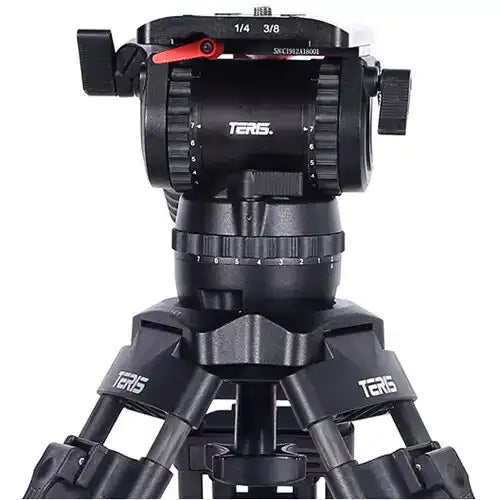

Teris TS150 Fluid Head

Product Overview

The Teris TS150 Fluid Head is a professional aluminum fluid head rated for camera rigs up to 44 lb (20 kg), purpose-built for broadcast studio work, ENG field production, and documentary shooting where a reliable 100mm bowl fluid head is required. Its drop-in quick release plate with dual 1/4"-20 and 3/8"-16 camera screw options covers the full range of professional camera mounting standards, making it a versatile broadcast fluid head for operators transitioning between camera systems. The TS150 sits at the upper end of Teris's aluminum head lineup, offering a meaningful payload advantage over the TS120 for fully rigged broadcast and cinema camera configurations. It is available as a standalone head for use with existing tripod systems or as part of complete TS150 tripod kits.

Product Description

The Teris TS150 Fluid Head is designed around the demands of professional broadcast and ENG operators who carry substantial camera rigs and need consistent drag performance throughout a full shooting day. The fluid drag system provides smooth, controlled resistance on both pan and tilt axes, giving operators the precision needed for broadcast-quality camera moves without jerking or stalling at the start of a pan. The counterbalance system handles loads up to 20 kg, keeping fully equipped broadcast cameras and cinema camera rigs in neutral balance at any tilt angle. The aluminum construction keeps the head's own weight manageable at 3.56 kg while delivering the structural rigidity required for professional production use. The 100mm ball base integrates directly with the standard 100mm bowl found on Teris TS-series and CINE-series tripods as well as compatible third-party systems. The drop-in quick release plate enables rapid camera mounting and removal between shots or setups without the need for additional tools. Pan and tilt axis locks provide positive, reliable camera securing when repositioning the head or during transport between locations. The TS150 is a practical choice for broadcast operators, documentary shooters, and live event camera operators who need a capable 20 kg-rated fluid head in an aluminum form factor.

Key Features

• 20 kg (44 lb) Payload Capacity — Supports fully rigged broadcast and cinema cameras, including bodies with follow focus, matte box, and on-camera monitor.
• Fluid Drag System — Delivers smooth, adjustable pan and tilt resistance for precise, broadcast-quality camera movement.
• Counterbalance System — Keeps the camera rig in neutral balance at any tilt position, reducing operator fatigue during extended shoots.
• Drop-In Quick Release Plate — Dual 1/4"-20 and 3/8"-16 camera screw options accommodate the full range of professional camera bases.
• 100mm Bowl Fitting — Integrates with standard 100mm tripod bowls for broad system compatibility.
• Aluminum Construction — Balances structural rigidity with a manageable head weight of 3.56 kg for field and studio use.
• Pan and Tilt Locks — Positive axis locks on both axes secure the camera reliably during setup and transport.

Typical Applications

• Broadcast studio production
• ENG and field production
• Documentary production
• Film and cinema production
• Live event production
• Multi-camera production
• House of worship

Technical Specifications

Frequently Asked Questions

Q: What is the maximum payload of the TS150 Fluid Head?
A: The TS150 supports camera rigs up to 20 kg (44 lb), accommodating fully equipped broadcast and cinema cameras with accessories.

Q: What tripods is the TS150 compatible with?
A: The TS150 uses a 100mm ball base and is compatible with any tripod or set of legs accepting a 100mm bowl, including Teris TS-series aluminum and carbon fiber tripod kits.

Q: What is the difference between the TS150 and the TS120?
A: The TS150 is rated for a higher payload (20 kg vs. 15 kg for the TS120) and weighs slightly more (3.56 kg vs. 3.09 kg). Both use a 100mm bowl and aluminum construction.

Q: Does the TS150 come with a tripod, or is it a head-only product?
A: The TS150 listed here is a standalone fluid head. It is also available as part of complete TS150AL and TS150CF tripod kit bundles sold separately.

Q: Can the TS150 handle a cinema camera with a full accessory build?
A: Yes, provided the total rig weight including camera body, lens, and all accessories stays within the 20 kg rated payload.

Q: How does the quick release system work?
A: The TS150 uses a drop-in quick release plate. Attach the plate to the camera base, then slide it into the head's receiver and engage the lock. Camera removal is equally fast.

Q: Is the TS150 suitable for outdoor ENG production?
A: Yes. The aluminum construction is appropriate for outdoor field production, and the fluid drag system performs consistently in typical broadcast ENG environments.
