Teris TS120AL Fluid Head & Tripod Kit (Aluminum)

Product Overview

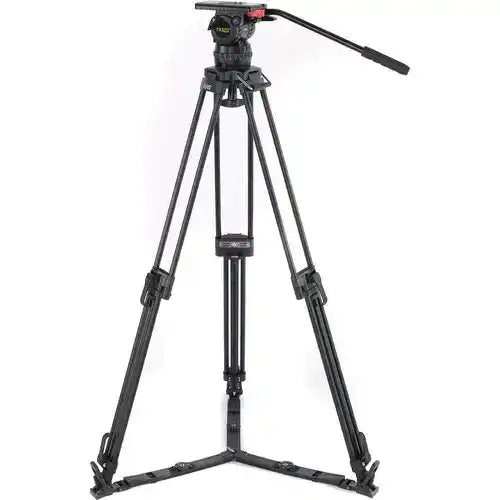

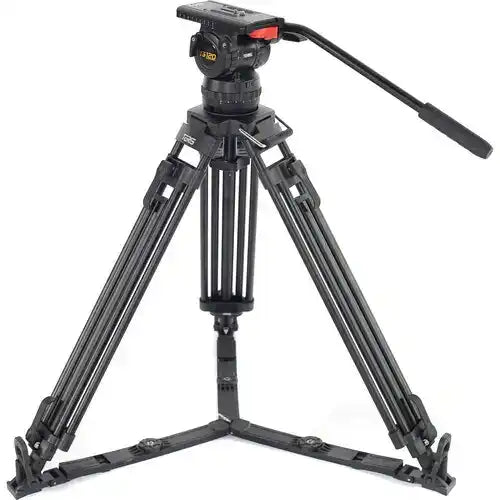

The Teris TS120AL Fluid Head & Tripod Kit (Aluminum) is a professional-grade camera support system designed for ENG, broadcast studio, and field production work. With a 100mm bowl fitting and 33 lb (15 kg) payload capacity, the TS120AL handles everything from compact mirrorless rigs to fully built-out broadcast cameras. The aluminum tripod construction delivers proven rigidity at a price point accessible to working cinematographers and videographers seeking a reliable fluid head and tripod kit with quick-release plate. The kit ships as a matched system — head, tripod, and plate — requiring no additional purchases for basic operation.

Product Description

The TS120AL pairs the Teris TS120 fluid head with an aluminum two-stage tripod, delivering a complete ready-to-shoot support system. The TS120 fluid head features a 100mm flat-base bowl interface for fast leveling without a separate bowl adapter. A sliding quick-release plate with both 1/4"-20 and 3/8"-16 camera screw options accommodates virtually any camera body or cage configuration. The fluid drag system provides smooth, adjustable pan and tilt resistance suitable for controlled broadcast takes and documentary-style handheld-to-sticks transitions. The counterbalance system compensates for varying payload weights, keeping the head at rest in any tilt position once dialed in. The aluminum tripod legs extend to accommodate a wide range of shooting heights, from low-angle setups to full standing operator positions. A mid-level spreader provides lateral stability on flat surfaces, while the leg angle adjustments allow deployment on uneven terrain. Operators who need a lighter, travel-optimized alternative can consider the TS120CF-Q, which replaces the aluminum legs with carbon fiber; the TS120AL is the better choice when budget is the primary constraint and total kit weight is less critical. The head weighs 3.09 kg and supports a maximum payload of 15 kg, covering broadcast ENG cameras, cinema cameras with follow focus and matte box, and mirrorless bodies with telephoto lenses.

Key Features

• 100mm Bowl Interface — Standard flat-base 100mm fitting allows fast bowl leveling and compatibility with a wide range of tripod legs and bowl adapters.
• 15 kg (33 lb) Payload Capacity — Supports fully built broadcast cameras, cinema cameras with follow focus and matte box, or mirrorless setups with long lenses.

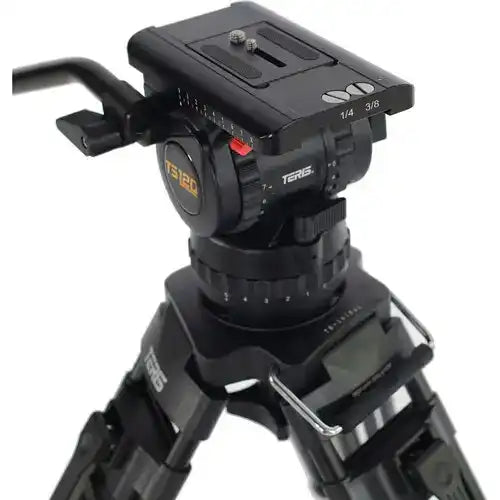

• Sliding Quick-Release Plate — Dual 1/4"-20 and 3/8"-16 camera screws accommodate any camera base; sliding adjustment balances the rig fore-aft without tools.
• Adjustable Fluid Drag — Pan and tilt drag tunable to match shooting speed requirements from slow dramatic pans to quick ENG reaction shots.
• Adjustable Counterbalance — Counterbalance adjusts to payload weight, keeping the head stationary at any tilt angle and preventing unwanted drift.
• Aluminum Tripod Legs — Two-stage aluminum legs provide stable deployment across a range of heights with field-proven durability.
• Mid-Level Spreader — Included spreader locks leg angles for consistent, stable positioning on location or in studio.

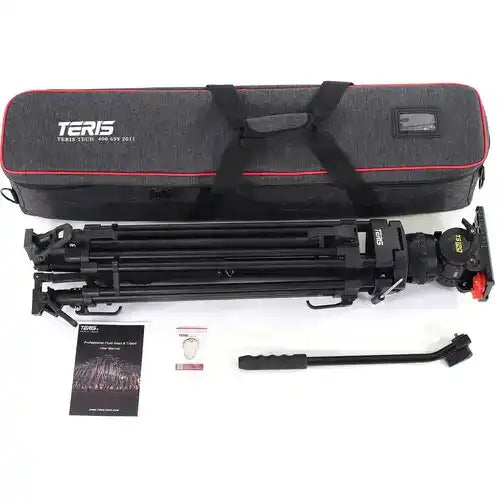

• Complete Kit — Head, tripod, and quick-release plate included; no additional purchases required for basic shooting operation.

Typical Applications

• ENG (electronic news gathering) field production
• Broadcast studio camera support
• Documentary and corporate video production
• Event videography with larger camera builds
• Cinema and indie film production with mid-size camera packages

Technical Specifications

Frequently Asked Questions

Q: What cameras is the TS120AL suited for?
A: The TS120AL handles any camera rig up to 15 kg (33 lb), covering broadcast ENG cameras, cinema cameras with accessories, and mirrorless or DSLR builds with longer lenses and cages.

Q: Is the quick-release plate compatible with Arca-Swiss or other standard systems?
A: The TS120AL uses Teris's proprietary sliding quick-release plate with 1/4"-20 and 3/8"-16 screws. It is not an Arca-Swiss format plate.

Q: What is the difference between the TS120AL and the TS120CF-Q?
A: The TS120AL uses aluminum tripod legs while the TS120CF-Q uses carbon fiber legs. The fluid head specifications are equivalent; the carbon fiber version is lighter for travel-intensive productions.

Q: Does the kit include a carrying case?
A: Please contact Creation Networks to confirm current kit contents and case availability for the TS120AL.

Q: Can I use the TS120 head on a different set of tripod legs?
A: Yes. The TS120 fluid head uses a standard 100mm bowl interface and can be mounted on any compatible 100mm tripod legs.

Q: How does the TS120AL compare to a 75mm system?
A: The 100mm bowl is a larger, heavier-duty interface designed for broadcast and cinema payloads. A 75mm system is better suited for lighter mirrorless or consumer camcorder builds. The TS120AL is the right choice for camera packages over approximately 5 kg.
