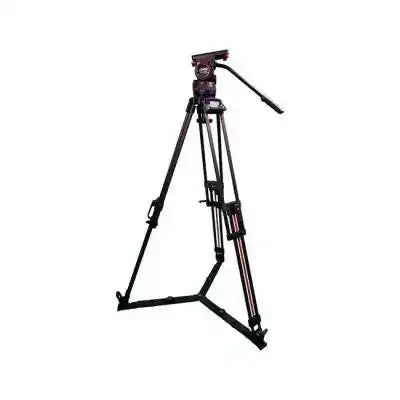

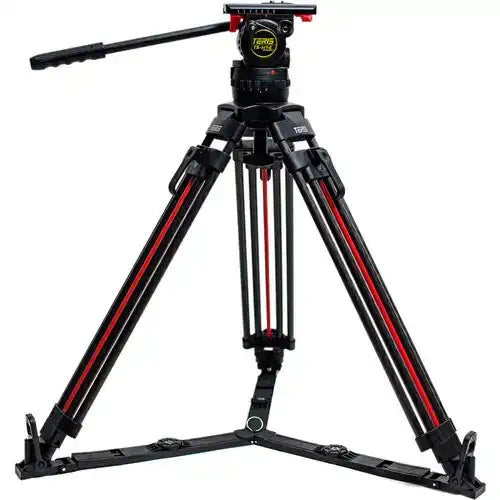

Teris TS-H14CF-Q 100mm Flat Base Fluid Head & 2-Stage Carbon Fiber Tripod System

Product Overview

The Teris TS-H14CF-Q is a 100mm flat base fluid head and 2-stage carbon fiber tripod system rated for payloads up to 14 kg, offering a compact and portable camera support solution for ENG field production, documentary shooting, and broadcast applications where a flat base head configuration is preferred over a bowl-mount setup. The 2-stage carbon fiber tripod provides a height range of 2 to 70 inches, accommodating low-angle shots through standard broadcast camera height in a single tripod. The sliding quick release plate enables fast camera mounting and removal, and the total system weight of 6.81 kg makes the TS-H14CF-Q one of the lighter options in its payload class. It is a practical kit for camera operators who need a flat-base carbon fiber tripod system with solid 14 kg capacity for professional field and studio production.

Product Description

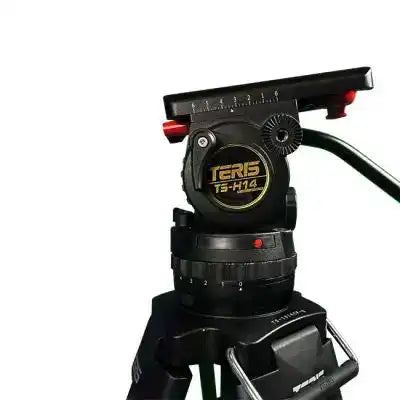

The Teris TS-H14CF-Q tripod system is built around a 100mm flat base fluid head, which differs from bowl-mount configurations in that the head sits on a flat platform rather than a spherical bowl. This flat base design is common in ENG and broadcast production where operators work with specific tripod leg systems designed for flat-base heads, and it eliminates the need for bowl-leveling adjustments. The fluid head delivers smooth drag-controlled pan and tilt movement, with the system rated to handle camera rigs up to 14 kg — appropriate for professional ENG cameras, cinema camera builds, and broadcast configurations in the medium payload range. The 2-stage carbon fiber tripod extends from a low of 2 inches to a maximum of 70 inches, giving the operator flexibility to shoot from near ground level up to standard head height without switching systems. Carbon fiber leg construction contributes to the 6.81 kg total system weight, which is meaningfully lower than aluminum-leg equivalents at this payload class — an advantage for operators who carry the system on location throughout the day. The sliding quick release plate is a field production feature that reduces camera mounting time between setups. Pan and tilt locks secure the camera position reliably between shots. The TS-H14CF-Q ships as a complete system, making it ready to deploy without additional component matching. It is appropriate for ENG crews, documentary operators, and broadcast technicians who need a flat-base carbon fiber tripod system in the 14 kg payload class.

Key Features

• 14 kg Payload Capacity — Supports professional ENG cameras, cinema camera configurations with accessories, and medium-payload broadcast setups.
• 100mm Flat Base Head — Flat base configuration works directly with tripod leg systems designed for flat-base heads, eliminating bowl-leveling adjustments.
• 2-Stage Carbon Fiber Tripod — Provides a height range of 2 to 70 inches, covering low-angle through standard broadcast camera positions.
• Carbon Fiber Construction — Total system weight of 6.81 kg, lighter than aluminum alternatives at this payload class for improved field portability.
• Sliding Quick Release Plate — Enables fast camera mounting and removal, reducing setup time in ENG and documentary production environments.
• Fluid Drag System — Smooth, adjustable pan and tilt resistance for precise camera movement in field and studio contexts.
• Complete System — Head, tripod legs, and quick release included, ready to deploy without additional component sourcing.

Typical Applications

• ENG and field production
• Documentary production
• Broadcast studio production
• Film and cinema production
• Live event production
• House of worship

Technical Specifications

Frequently Asked Questions

Q: What is the difference between a flat base head and a bowl-mount head?
A: A flat base head sits on a flat platform and requires the tripod legs to be leveled using leg length adjustment or a leveling base. A bowl-mount head uses a spherical bowl that allows the head to be leveled independently of the leg positions. Flat base configurations are common in ENG and broadcast workflows using matched tripod leg systems.

Q: What is the height range of the 2-stage tripod in this system?
A: The tripod extends from 2 inches (ground level) to 70 inches, covering low-angle through standard broadcast camera height.

Q: What is the maximum payload for the TS-H14CF-Q?
A: The system supports camera rigs up to 14 kg (30.8 lb), appropriate for professional ENG cameras and medium-payload cinema configurations.

Q: How does the TS-H14CF-Q compare to the TS120CF-Q?
A: Both are carbon fiber tripod systems with 100mm heads and sliding quick release. The TS120CF-Q is rated for 15 kg vs. 14 kg for the TS-H14CF-Q, and uses a bowl-mount head. The TS-H14CF-Q uses a flat base head. System weight is comparable (6.81 kg vs. 7.08 kg). The choice depends primarily on whether flat base or bowl configuration is preferred for your workflow.

Q: Is this system compatible with a ground spreader?
A: Ground spreader compatibility and inclusion should be confirmed with Creation Networks at time of purchase.

Q: What is included in the TS-H14CF-Q system?
A: The system includes the flat base fluid head, 2-stage carbon fiber tripod legs, and sliding quick release plate. Contact Creation Networks to confirm current packaging and any additional included items.

Q: Can the flat base head be used with other tripod systems?
A: The flat base head is designed to work with tripod legs that accept a 100mm flat base. Compatibility with specific third-party leg systems should be verified before purchase.

Q: Is the TS-H14CF-Q suitable for cinema cameras?
A: Yes, provided the total rig weight stays within 14 kg. It is appropriate for cinema camera bodies with cage, follow focus, and on-camera monitor configurations within that payload limit.
