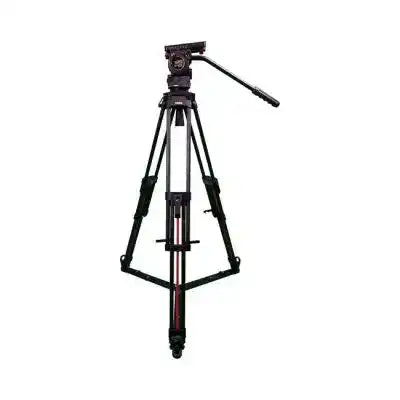

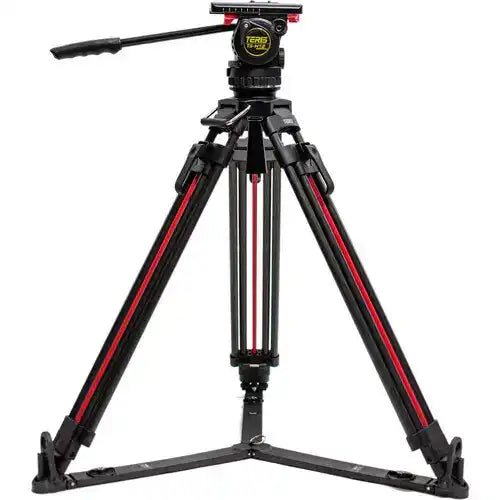

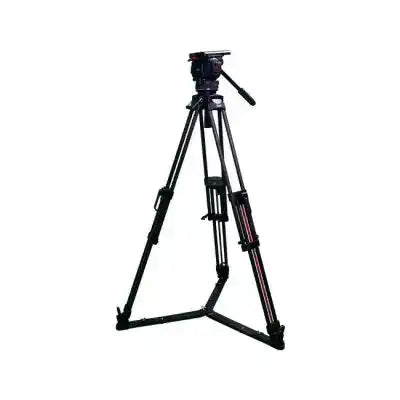

Teris TS-H12CF-Q 100mm Flat Base Fluid Head & 2-Stage Carbon Fiber Tripod System

Product Overview

The Teris TS-H12CF-Q is a complete 100mm flat-base fluid head and 2-stage carbon fiber tripod system targeting broadcast ENG crews, documentary teams, and cinema operators who need a lightweight but capable support solution. The carbon fiber tripod legs reduce overall system weight while maintaining the structural rigidity required for field production. Supporting payloads up to 26.4 lb (12 kg), the TS-H12CF-Q handles compact broadcast cameras, mirrorless cinema rigs, and ENG-style builds with full accessories. The ground spreader, 2-inch to 70-inch height range, and 100mm bowl interface make this a versatile fluid head and carbon fiber tripod system for fast-moving productions.

Product Description

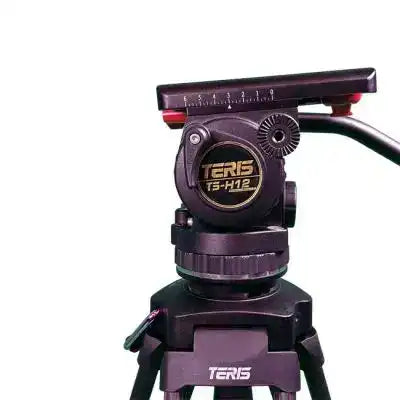

The TS-H12CF-Q bundles the Teris TS-H12 fluid head with a 2-stage carbon fiber tripod and ground spreader into a single turnkey camera support system. The 100mm flat-base bowl interface enables fast leveling in the field without a separate bowl adapter, and the twin-tube carbon fiber leg design delivers stiffness well above aluminum equivalents at a fraction of the added weight. The fluid head provides adjustable pan and tilt drag for smooth camera movement across a range of shooting speeds. A quick-release plate with standard camera screw options allows rapid camera changes between takes or operators. The counterbalance system keeps the head stationary at any tilt angle once set, preventing unwanted tilt drift during handheld-to-sticks transitions. The ground spreader provides a low-profile leg-locking option well suited for low-angle shots where a mid-level spreader would enter the frame. With a tripod height range of 2 to 70 inches, the system accommodates everything from ground-level documentary angles to full standing operator positions. The TS-H12CF-Q ships as a matched system, ready for deployment without additional accessories required for basic operation. The carbon fiber construction makes this system well suited for productions with frequent location moves, air travel, or any situation where total kit weight directly impacts logistics.

Key Features

• 100mm Flat-Base Bowl Interface — Industry-standard 100mm fitting for fast leveling and broad compatibility with bowl adapters and other 100mm legs.
• 12 kg (26.4 lb) Payload Capacity — Supports compact broadcast cameras, mirrorless cinema bodies with cage and accessories, and ENG rigs.
• 2-Stage Carbon Fiber Tripod Legs — Twin-tube carbon fiber construction reduces system weight vs. aluminum while maintaining field-ready rigidity.
• Ground Spreader — Low-profile spreader locks leg angles at ground level, enabling stable low-angle setups without a raised spreader in the frame.
• 2 to 70-Inch Height Range — Wide operational range covers ground-level to standing-height shooting positions.
• Quick-Release Plate — Tool-free camera mounting and release for fast rigging and operator transitions.
• Adjustable Fluid Drag — Pan and tilt drag tunable to match shooting speed requirements from slow dramatic movements to quick ENG pans.
• Complete System Kit — Head, carbon fiber tripod legs, and ground spreader included; no additional hardware required to begin shooting.

Typical Applications

• ENG and broadcast field production
• Documentary production requiring lightweight travel kits
• Corporate and event video with frequent location changes
• Cinema and indie film production with compact camera packages
• Studio and on-location interview setups

Technical Specifications

Frequently Asked Questions

Q: What is the difference between the TS-H12CF-Q and the TS120CF-Q?
A: The TS-H12CF-Q uses the TS-H12 fluid head with a 12 kg payload capacity and a ground spreader. The TS120CF-Q uses the TS120 fluid head with a 15 kg capacity and a mid-level spreader. Choose the TS-H12CF-Q for lighter camera packages; choose the TS120CF-Q for heavier broadcast builds.

Q: Can the TS-H12 head be purchased separately from the tripod?
A: Yes. The TS-H12 fluid head is also available as a standalone unit (SKU: TS-H12). The TS-H12CF-Q kit bundles it with the carbon fiber tripod and ground spreader.

Q: Is the 100mm bowl interface compatible with other manufacturers' tripod legs?
A: Yes, the 100mm flat-base bowl is an industry-standard fitting compatible with 100mm legs from most professional tripod manufacturers.

Q: What camera weight does 12 kg payload cover?
A: 12 kg (26.4 lb) covers cameras such as the Sony FX9, Canon C300 Mark III, RED KOMODO, and BMPCC 6K Pro with cage, as well as most ENG camcorders with a full lens, matte box, and follow focus.

Q: Why choose a ground spreader over a mid-level spreader?
A: A ground spreader keeps the spreader hardware out of the lower portion of the frame during low-angle shots and allows the legs to spread to a wider angle closer to ground level, improving stability on uneven surfaces.

Q: Does the system include a carrying bag or case?
A: Contact Creation Networks to confirm current kit contents and case availability for the TS-H12CF-Q.
