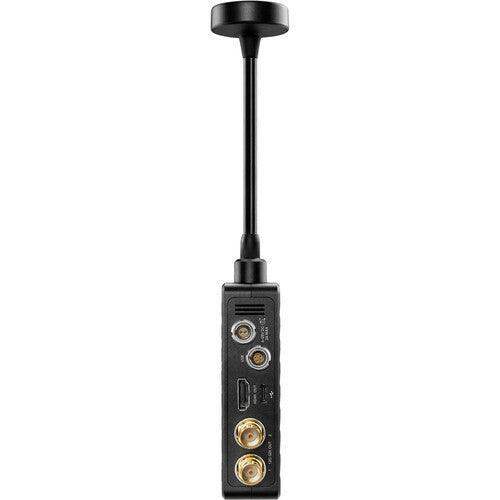

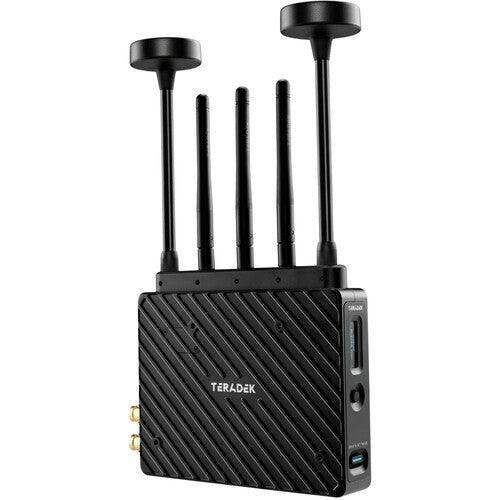

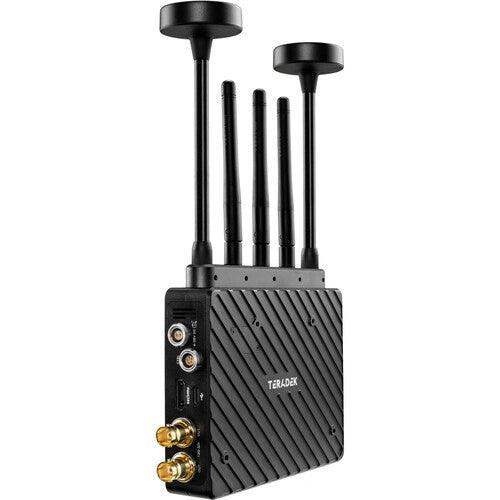

Teradek Teradek Bolt 6 XT MAX 12G-SDI/HDMI Wireless Receiver (V-Mount) - 10-2322-V
Teradek Teradek Bolt 6 XT MAX 12G-SDI/HDMI Wireless Receiver (V-Mount) - 10-2322-V is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Teradek Teradek Bolt 6 XT MAX 12G-SDI/HDMI Wireless Receiver (V-Mou...
Product Overview
The Teradek Bolt 6 XT MAX 12G-SDI/HDMI Wireless Receiver V-Mount (10-2322-V) is the highest-range receiver in the Bolt 6 XT lineup, receiving visually lossless 4K wireless video up to 5,000 feet when paired with the Bolt 4K MAX or compatible long-range transmitter. The integrated V-Mount battery plate enables professional battery-powered deployment at video village or remote monitor positions. Compatible with Bolt 4K and Bolt 6 XT series transmitters over 5 GHz and 6 GHz.
Product Description
The 10-2322-V delivers 4K HDR video via dual 12G-SDI and HDMI outputs, receiving over 5 GHz and 6 GHz with DFS channel support and less than 1ms latency. The V-Mount battery plate powers the unit on standard professional batteries for untethered monitor position deployment. AES-256 encryption with RSA-1024 key exchange secures the wireless link. The Bolt Manager app for iOS and Android connects via Bluetooth for spectrum analysis and configuration. Cross-compatible with Bolt 4K series transmitters over 5 GHz.
Key Features
- Up to 5,000 ft Receive Range — Maximum-range Bolt 6 XT receiver for large-scale production deployments.
- 5 GHz and 6 GHz Operation — Dual-band with DFS channel support for RF-congested venues.
- 4K HDR Wireless Reception — Visually lossless with sub-1ms latency.
- Dual 12G-SDI and HDMI Outputs — Signal distribution for monitors and broadcast equipment.
- V-Mount Battery Plate — Integrated for battery-powered video village deployment.
- AES-256 Encryption — RSA-1024 key exchange for wireless security.
Typical Applications
- Video village monitor receiver for large-scale productions
- Feature film remote monitor positions
- Broadcast and live event production
- Stadium and auditorium production
Technical Specifications
| Specification | Value |
|---|---|
| Model | 10-2322-V |
| Receive Range | Up to 5,000 ft line of sight (with compatible TX) |
| Operating Frequency | 5 GHz / 6 GHz (with DFS) |
| Outputs | 2x 12G-SDI, 1x HDMI |
| Battery Mount | V-Mount |
| Encryption | AES-256, RSA-1024 |
Frequently Asked Questions
- What transmitters are compatible with the 10-2322-V?
- Compatible with Bolt 6 XT and Bolt 4K series transmitters. For maximum range, pair with the Bolt 4K MAX or Bolt 6 XT MAX transmitter. Browse compatible TX units at creationnetworks.net.
- What is the advantage of 6 GHz operation?
- The 6 GHz band provides access to DFS channels and additional spectrum, reducing interference in RF-congested production environments like convention centers and stadiums.
- What warranty applies?
- Teradek standard limited warranty. Contact Creation Networks for registration and support options.
