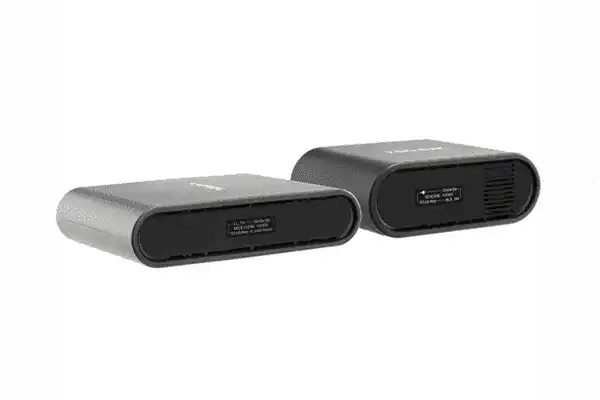

Teradek 10-1855 Spark 4K Transmitter/Receiver Set

Teradek SKU: 10-1855
No reviews
Price:
$1,490.00

Description

Transmit lossless HD video up to 500' to monitor video wirelessly using the Spark 4K Transmitter/Receiver Set from Teradek. The kit includes one Spark 4K transmitter and one Spark 4K receiver, and the transmitter can input up to 4K30 10-bit 4:2:2 HDR video via HDMI and transmit visually lossless video to up to two Spark 4K receivers with zero delay. The transmitter and receiver communicate using a powerful signal that can travel up to 500' line of sight, and each unit features a bright OLED display to view the unit status.

Both the Spark 4K transmitter and receiver units feature internal antennas, which make them ultra portable, allowing you to extend video to a display without any cabling. Built-in AES-128 encryption protects your video from prying eyes, while noise rejection keeps your video clean no matter how many devices are using the 5 GHz wireless spectrum.

The Teradek Launchpad app for iOS or Android that easily connects to the transmitter and receiver via Bluetooth, providing channel selection tools, monitoring, and remote configuration. There are 1/4"-20 and M3 mounting threads on each unit to mount the transmitter and receiver on a variety of cameras, cages, or rigs. The transmitter is powered using a separately available USB Type-C power source and the receiver can be powered by either a USB Type-C or DC barrel power source.

  • Zero-delay 4K wireless video (<0.001sec)
  • 4K HDR with 10-bit 4:2:2
  • Wireless range of up to 500 ft line of sight
  • Internal TX battery allows quick deployments and fewer power accessories
  • USB-C and Barrel Connector for power
  • Third party power solutions
  • OLED display for status and troubleshooting
  • Supports up to 4Kp30 with HDMI
  • Multicast transmission: 1:2 TX:RX

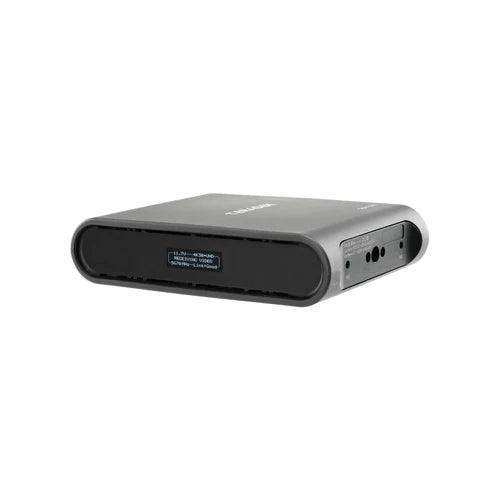

Teradek Spark 4K Transmitter

Transmit lossless HD video up to 500' to monitor video wirelessly using the Spark 4K Transmitter from Teradek. The Spark 4K transmitter can input up to 4K30 10-bit 4:2:2 HDR video via HDMI and transmit visually lossless video to up to two Spark 4K receivers with zero delay. The transmitter unit provides a powerful signal that can travel up to 500' line of sight and features a bright OLED display to view the unit status.

The Spark 4K transmitter features internal antennas, which makes it ultra portable, and it allows you to extend video to a display without any cabling. Built-in AES-128 encryption protects your video from prying eyes, while noise rejection keeps your video clean no matter how many devices are using the 5 GHz wireless spectrum.

The Teradek Launchpad app for iOS or Android that easily connects to the transmitter via Bluetooth, which provides channel-selection tools, monitoring, and remote configuration. There are 1/4"-20 and M3 mounting threads to mount your transmitter on a variety of cameras, cages, or rigs. It's powered using a separately available USB Type-C power source.

Teradek Spark 4K Receiver

Receive lossless HD video from up to 500' away to monitor video wirelessly using the Spark 4K Receiver from Teradek. The Spark 4K receiver can receive and output up to 4K30 10-bit 4:2:2 HDR video via HDMI after receiving visually lossless video from a Spark 4K transmitter with zero delay. The receiver can work alongside a second receiver to receive video simultaneously from a single transmitter. The receiver unit provides a powerful signal that can travel up to 500' line of sight and features a bright OLED display to view the unit status.

The Spark 4K receiver features internal antennas, which makes it ultra portable, and it allows you to extend video to a display via its HDMI output. Built-in AES-128 encryption protects your video from prying eyes, while noise rejection keeps your video clean no matter how many devices are using the 5 GHz wireless spectrum.

The Teradek Launchpad app for iOS or Android that easily connects to the receiver via Bluetooth, which provides channel-selection tools, monitoring, and remote configuration. There are 1/4"-20 and M3 mounting threads to mount your receiver on a variety of cameras, cages, or rigs. It's powered using a separately available USB Type-C or DC barrel power source.

Spark 4K TX

Video -

Video Inputs

  • 1x HDMI 1.4b Type-A receptacle

Color Sampling

  • RGB 4:2:2, 10-bit

Delay Tx To Rx

  • <0.001sec (without format conversions)

Supported Resolutions -

Supported Resolutions

  • 4Kp23.98/24/25/29.97/30 1080p23.98/24/25/29.97/30/50/59.94/60 1080i50/59.94/60 720p50/59.94/60 480p50 576p59.94/60

Video Processing -

Video Compression

  • Visually lossless

Audio Processing -

Audio Compression

  • 48kHz 24-bit PCM

Inputs -

Audio Input

  • Embedded HDMI Audio Input (2 channel)

Physical -

Dimensions

  • 3.44” x 2.66” x 1.22” (87mm x 68mm x 31mm)

Weight

  • 158g (5.6 oz)

Construction

  • ABS Plastic

Mountability

  • Multiple mounting options with M3 and 1/4-20” holes

Interfaces -

Configuration Interfaces

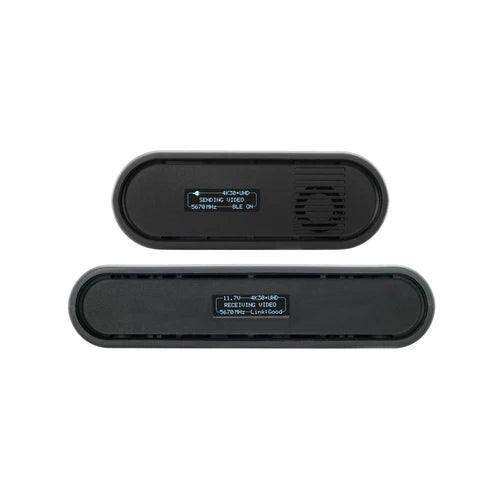

  • OLED display - Input video format, Selected frequency, Video Quality % , Link status

Switches

  • On/Off Switch

Mobile App

  • Launchpad App

Desktop App

  • Launchpad application for OSX & Windows

Usb Interface Functionality

  • Upgrade via Micro-USB

External Control

  • Enable/disable Bluetooth

Bluetooth

  • 2.4 GHz

Network -

Wireless

  • DFS Frequencies: 5.270 ~ 5.670 GHz Non-DFS Frequencies: 5.190 ~ 5.230 GHz and 5.755 ~ 5.795 GHz

Rf Channel Selection

  • Auto only, 40 MHz only, no blocked frequencies

Encryption

  • AES-128, RSA-1024 key exchange

Rf Power

  • 19 dbm EIRP (<80mW transmit power)

Range

  • Up to 500 ft line of sight

Unicast Multicast

  • Can connect one transmitter to up to 2 receivers

Noise Rejection

  • Can coexist with Wi-Fi and 5GHz cordless phones, and can operate up to 4 sets in same location

Power -

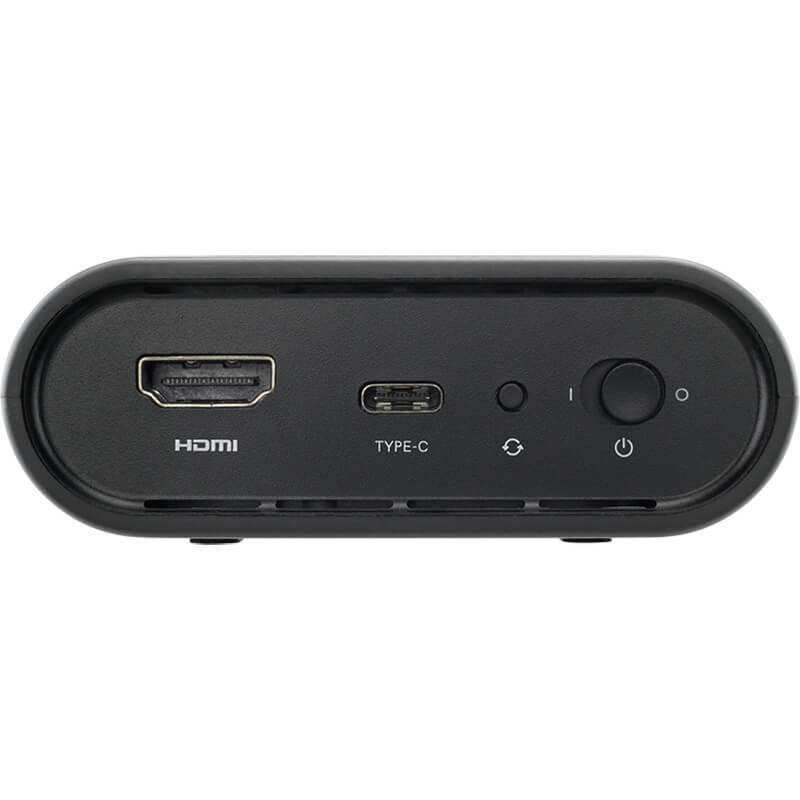

Power Input

  • USB-C power input

Battery

  • Internal 9.5Wh battery (1.5hr run time)

Nominal Power Consumption

  • 7.5W charging battery while on
  • 5.5W not charging battery while on
  • 5W charging batt and off

Environmental -

Operating Temperature

  • 0~40 deg-C

Spark 4K RX

Video -

Video Outputs

  • 1x HDMI 1.4b Type-A receptacle

Color Sampling

  • RGB 4:2:2, 10-bit

Delay Tx To Rx

  • <0.001sec (without format conversions)

Supported Resolutions -

Supported Resolutions

  • 4Kp23.98/24/25/29.97/30 1080p23.98/24/25/29.97/30/50/59.94/60 1080i50/59.94/60 720p50/59.94/60 480p50 576p59.94/60

Video Processing -

Video Compression

  • Visually lossless

Audio Processing -

Audio Compression

  • 48kHz 24-bit PCM

Outputs -

Audio Output

  • Embedded HDMI Audio Input (2 channel)

Physical -

Dimensions

  • 4.39” x 3.19” x 1” (112mm x 81mm x 25mm)

Weight

  • 187g (6.6 oz)

Construction

  • ABS Plastic

Mountability

  • Multiple mounting options with M3 and 1/4-20” holes

Interfaces -

Configuration Interfaces

  • OLED display - Input video format, Selected frequency, Video Quality % , Link status

Switches

  • On/Off Switch

Mobile App

  • Launchpad App

Desktop App

  • Launchpad application for OSX & Windows

Usb Interface Functionality

  • Upgrade via Micro-USB

External Control

  • Enable/disable Bluetooth

Bluetooth

  • 2.4 GHz

Network -

Wireless

  • DFS Frequencies: 5.270 ~ 5.670 GHz Non-DFS Frequencies: 5.190 ~ 5.230 GHz and 5.755 ~ 5.795 GHz

Rf Channel Selection

  • Auto only, 40 MHz only, no blocked frequencies

Encryption

  • AES-128, RSA-1024 key exchange

Rf Power

  • 17 dbm EIRP (<51mW transmit power

Range

  • Up to 500 ft line of sight

Unicast Multicast

  • Can connect one transmitter to up to 2 receivers

Noise Rejection

  • Can coexist with Wi-Fi and 5GHz cordless phones, and can operate up to 4 sets in same location

Power -

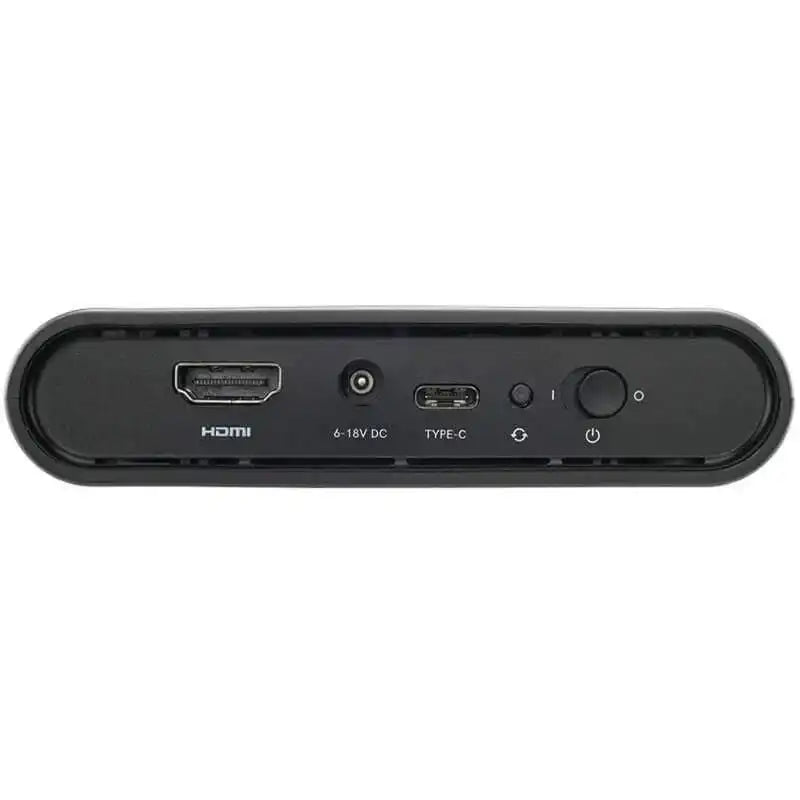

Power Input

  • USB-C and 6-18 DC power input

Battery

  • NONE

Nominal Power Consumption

  • 7.5 Watts

Environmental -

Operating Temperature

  • 0~40 deg-C
