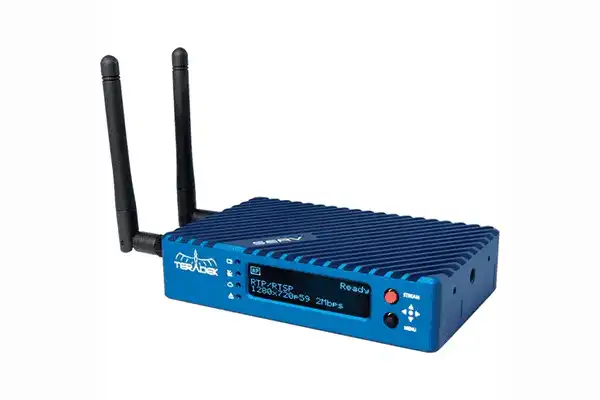

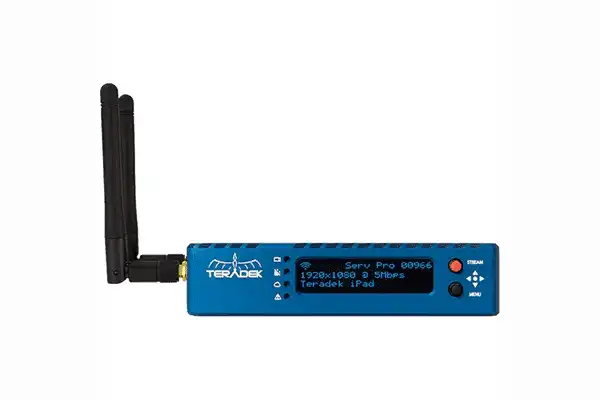

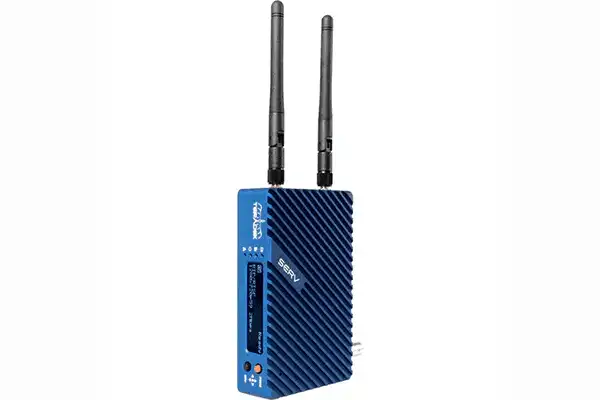

Teradek 10-0654 Serv Pro

Teradek SKU: 10-0654
No reviews
Price:
$1,990.00

Description

esigned to be used on set for single or multicam productions, the Teradek Serv Pro is the foundation of Teradek's network-based video monitoring system. Connect the Serv Pro unit to your camera's SDI or HDMI port, and up to 10 iOS, Android, or macOS devices running the free Vuer app can monitor the camera's video signal in resolutions up to 1080p with minimal 2-frame latency.

The Serv Pro can achieve this through efficient H.264 compression schemes, which maintain a high standard of video quality without requiring the massive bandwidth of uncompressed video solutions. Since the transmission is Wi-Fi based, the Serv Pro can be integrated into your local network for increased versatility. Multiple Serv Pro units can be linked over the same network for multicamera monitoring functionalities. One iPad or smartphone can monitor up to four simultaneous feeds at the same 1080p resolution and 2-frame latency as a single feed.

Stream Using Local Networks

 The Serv Pro connects to cameras via HDMI or 3G-SDI and streams over 2.4/5 GHz Wi-Fi or Ethernet to iOS, Android, or macOS devices connected to the same network. Each unit supports up to 10 simultaneous connections, whether you connect directly to Serv Pro or to the same wireless access point.

High-Definition at Low Latency

 Each Serv Pro feed is streamed at 1080p with just a 2-frame delay. The video stream also includes a stereo audio channel that can be enabled or disabled from the Vuer iOS/Android application.

Complements other Wireless Solutions

 The Serv Pro operates on 5 GHz Wi-Fi and is a complementary tool to zero delay wireless systems like the Bolt series. With proper frequency management, these systems will work together without interference.

Vuer iOS App

 The Vuer application for iOS puts an entire cinematographer's toolset in your hands, allowing you to use tools such as vectorscopes, false color, focus peaking, and more on each Serv Pro feed you're monitoring. The application is free to use and can be customized to allow users full or limited access to the toolset. Vuer can monitor up to 4 Serv Pro feeds at the same time, all in 1080p, and all at the same 2-frame delay.

Video Inputs
  • 1 x SD/HD-SDI (75 Ohm BNC)
  • 1 x HDMI Type-A receptacle

Bonding
  • None

Supported Input Resolutions -

Supported Resolutions

  • 1080p 23.98/24/25/29.97/30/50/59.94/60*
  • 1080i 50/59.94/60
  • 1080PsF 23/24/25/29/30
  • 720p 50/59.94/60
  • 576i
  • 480i
  • 480p (for HDMI input only)
  • 576p (for HDMI input only)
  • *Ingests 1080p50/59/60

Video Processing -

Video Compression

  • H.264, Baseline, Main and High Profile

Supported Video Bitrate

  • 250 Kbps to 15 Mbps*
  • *15 Mbps (wired), 10 Mbps (WiFi)

Supported Video Bitrate Details

  • 5 Mbps
  • 4 Mbps
  • 3 Mbps
  • 2.5 Mbps
  • 1.5 Mbps
  • 1 Mbps
  • 750 Kbps

Supported Output Resolutions169

  • Configured via Vuer app:
  • 1920x1080
  • 1536x864
  • 1280x720
  • 960x540
  • 480
  • 260
  • 270

Test Pattern Generator Support

  • Supports Custom Test Pattern

Video Format Conversion Support

  • Built in Video Scaler and Deinterlacer

Color Correction

  • None

Protocol Support -

Network Protocols

  • TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP

Supported Video Transport Protocols

  • Teradek Streaming Protocol (compatible with Teradek Apps, e.g. Live:Air, Vuer)

Remote Control

  • No Core Support

Software Or Platform Integration

  • Streaming Platforms not supported directly through device but via the Live:Air app

Audio Processing -

Audio Compression

  • AAC-LC, MPEG Layer 2

Inputs -

Audio Input

  • Embedded Audio Input
  • Analog Line or Mic in, adjustable gain

Outputs -

Audio Output

  • No audio output

Physical -

Dimensions

  • 4.75"W x 3"D x 1.1"H [120.7 x 76.2 x 27.9mm]

Weight

  • 11.6oz [328.9g]

Construction

  • Milled Aluminum

Interfaces -

Http

  • WebUI for Configuration and Control

Configuration Interfaces

  • OLED Display with joystick Navigation buttons
  • Feature-rich WebUI for configuration and control

Switches

  • On/Off and Reset Switch

Recording Storage

  • No Recording

Mobile App

  • Vuer, Live:Air

Usb Interface Functionality

  • None

Network -

Ethernet

  • 10/100/1000 BASE-T Gigabit

Wireless

  • WiFi: 2.4/5GHz 802.11 ac/a/b/g/n MiMo

Usb

  • None

Rf Channel Selection

  • Auto with 3 modes: (2.4 or 5 Ghz), Auto (2.4 GHz only), Auto (5 Ghz only)
  • Configurable to specific channels

Power -

Power Input

  • 2 Pin Connector Power input

Battery

  • No Battery Included

Nominal Power Consumption

  • 8W, 7W (no WiFi)

Auxilary Power Input

  • 6-28V DC

General -

Mounting

  • Can be mounted horizontally or vertically with
  • 1/4" 20 mounting holes
