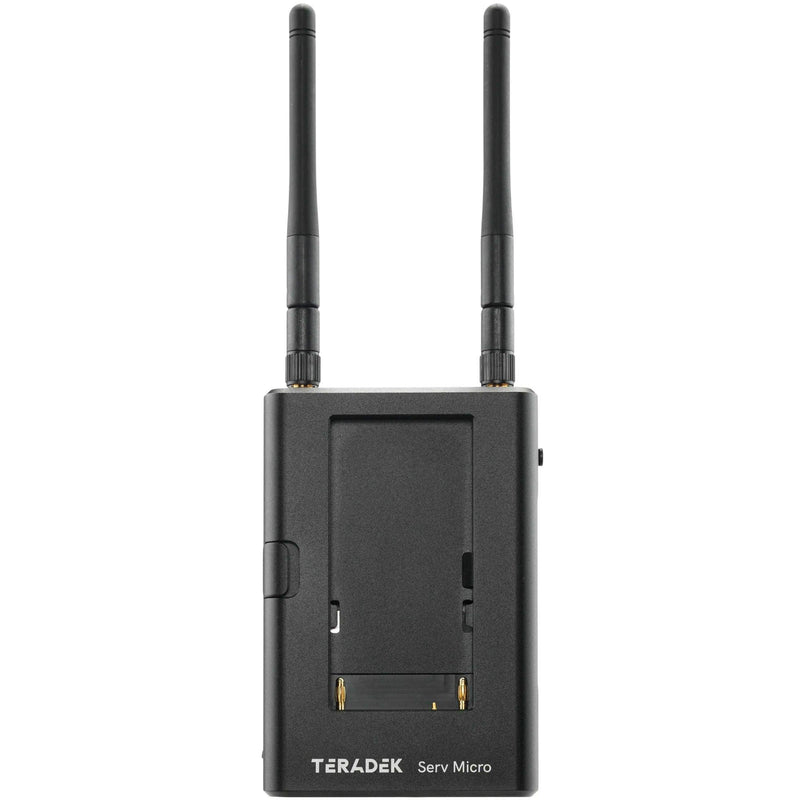

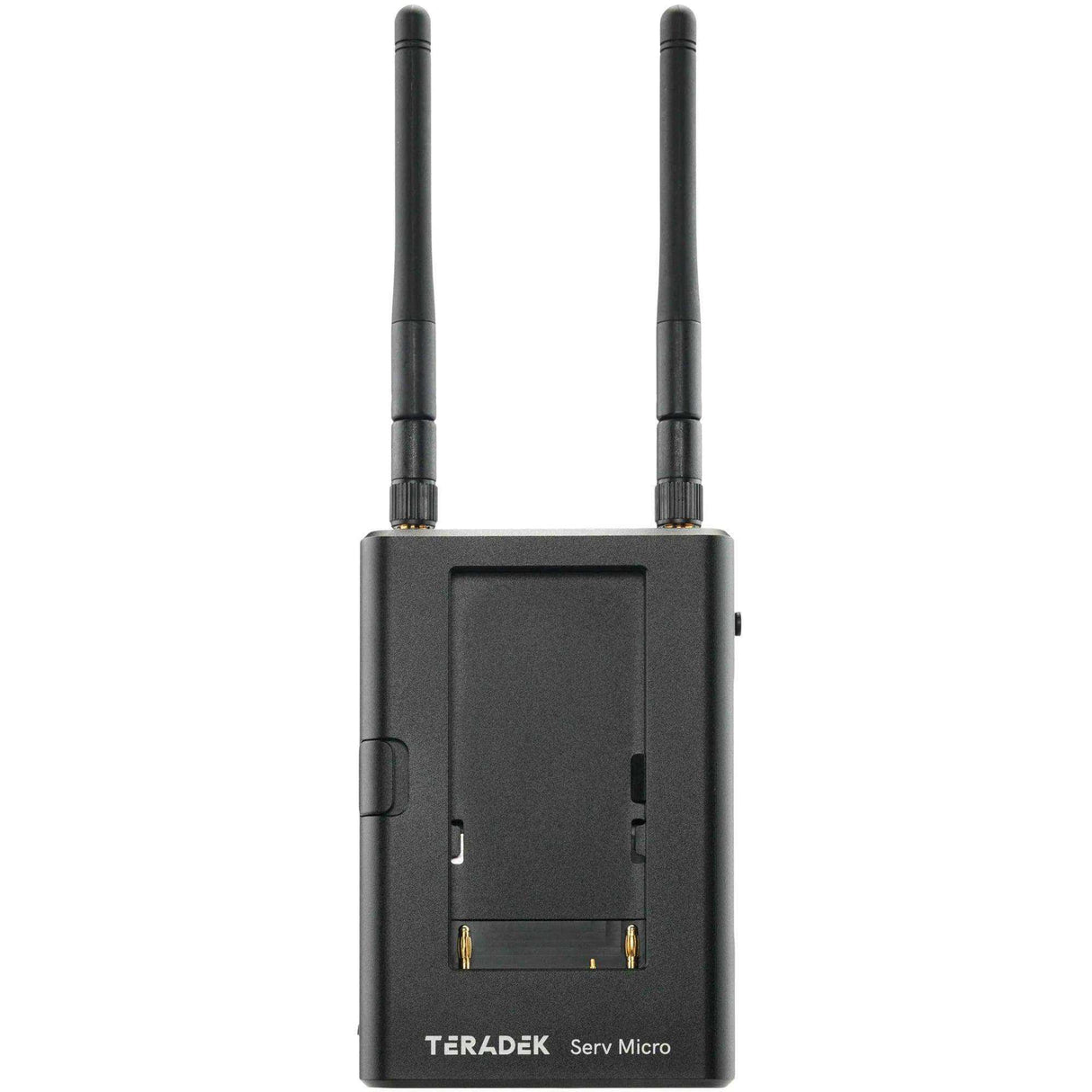

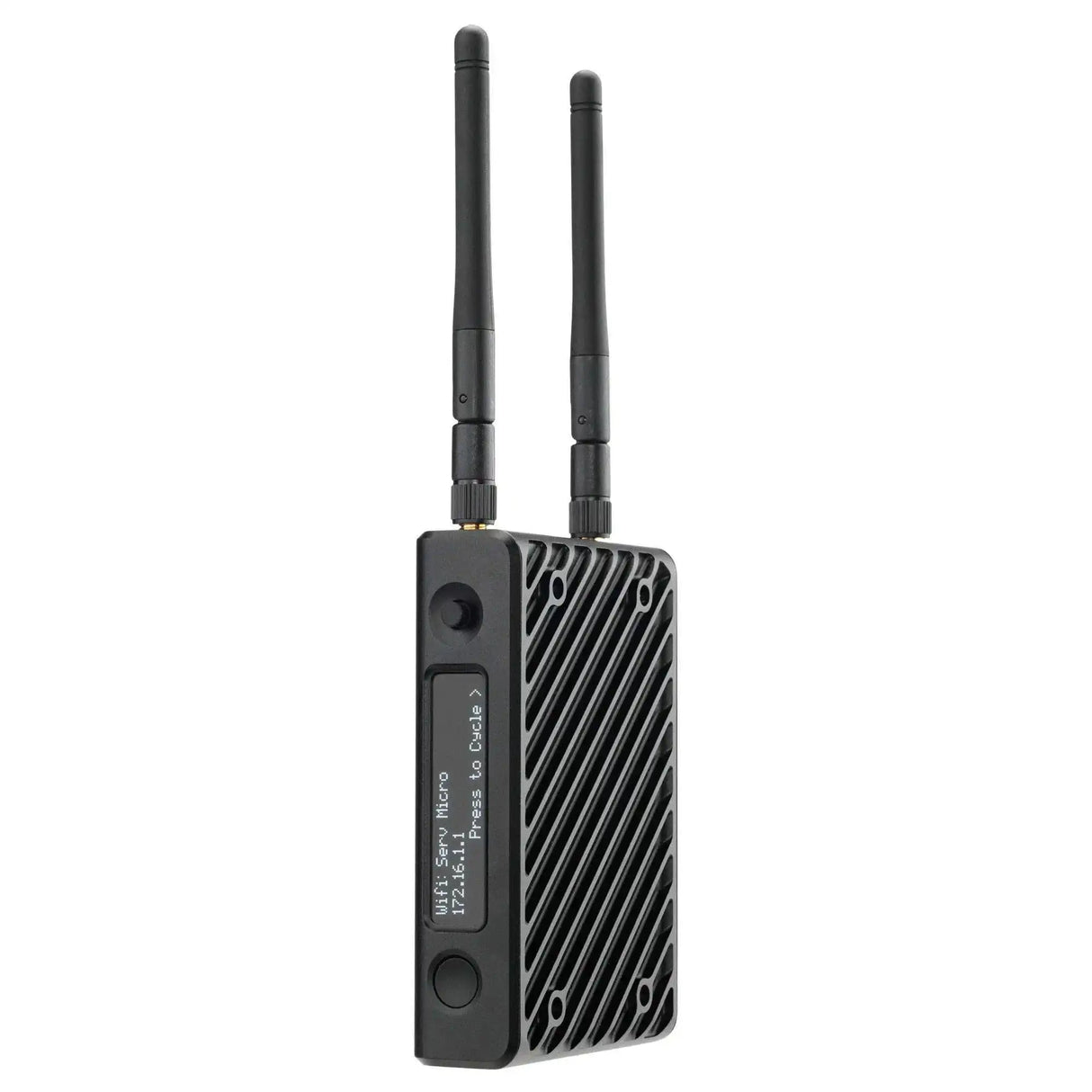

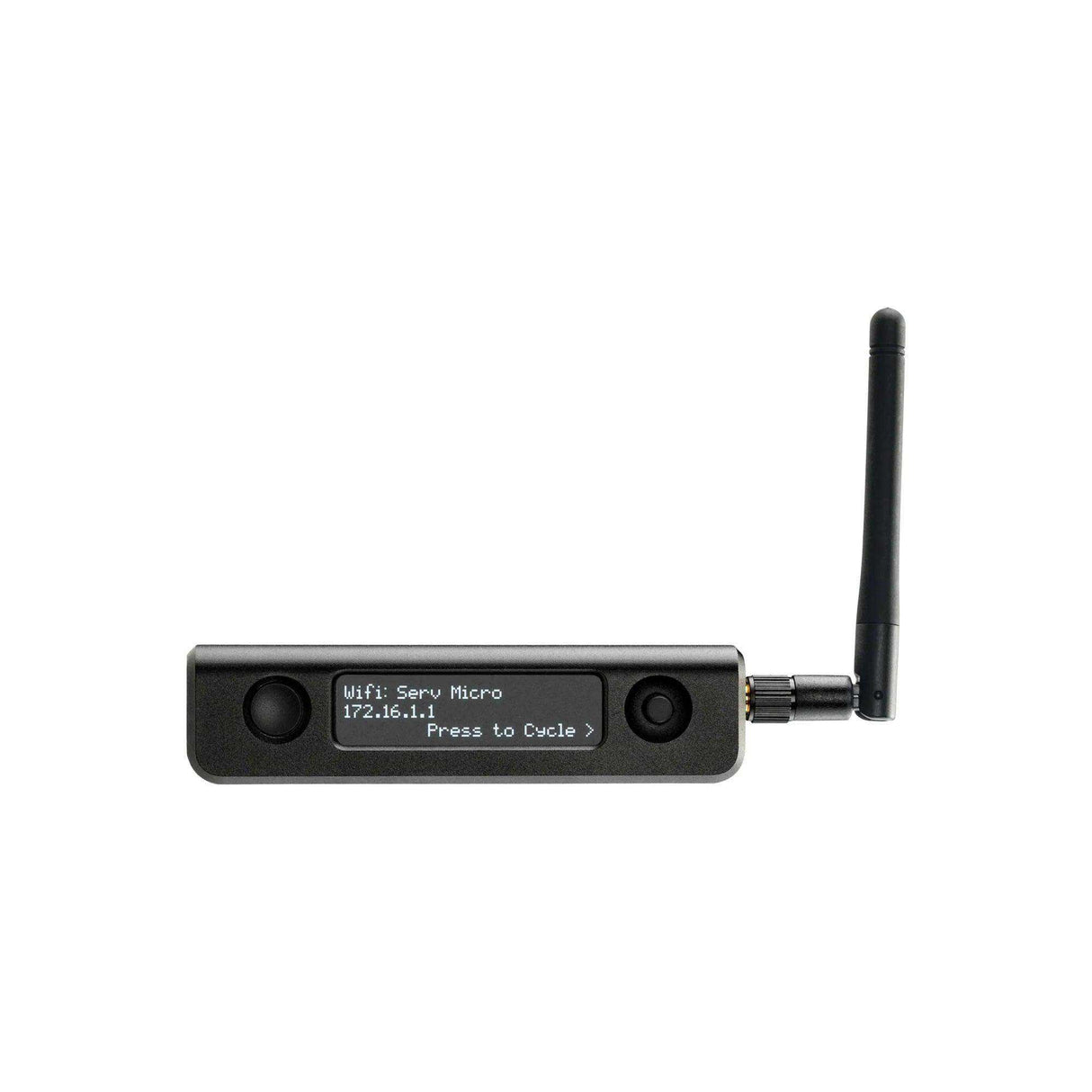

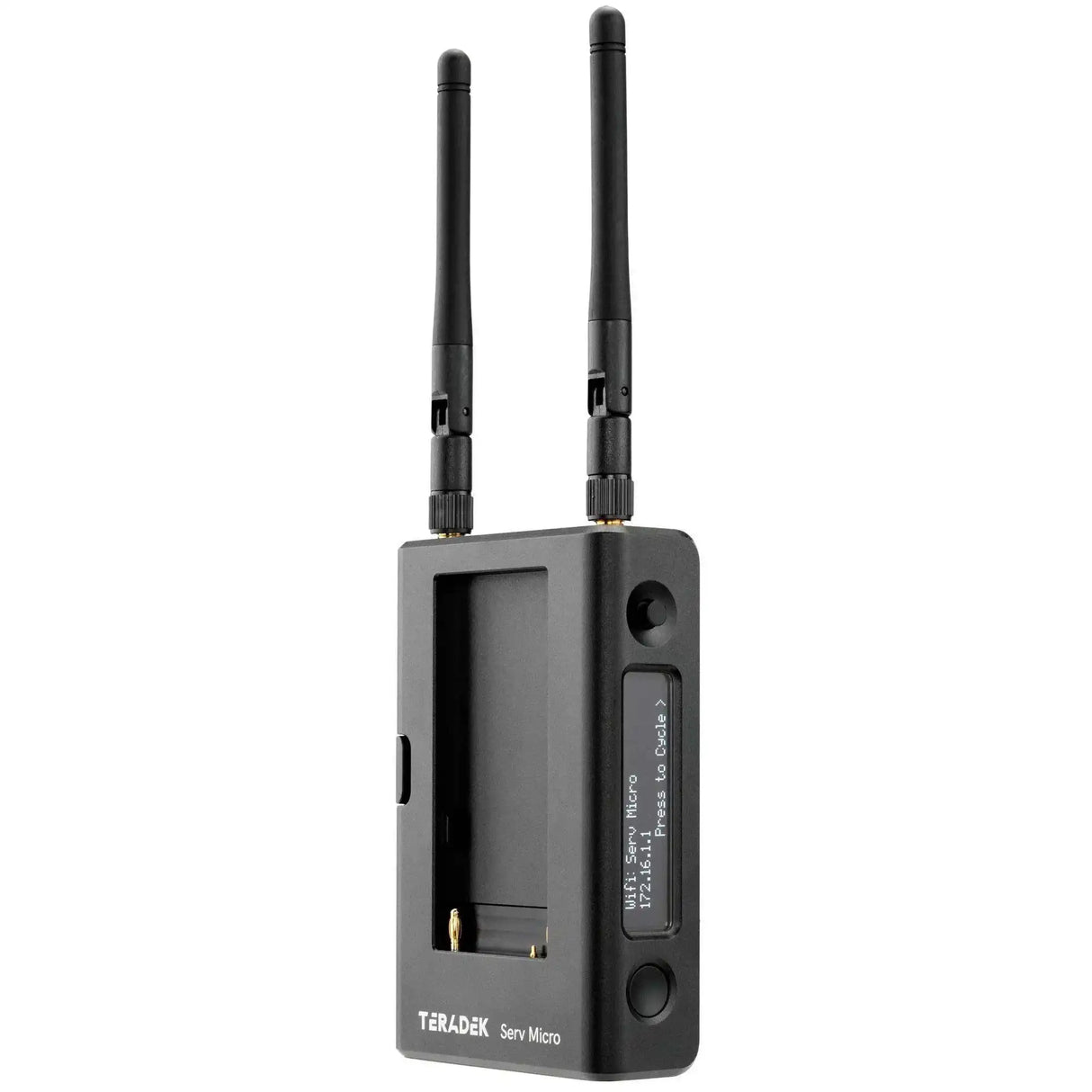

Teradek Serv Micro Wireless Streamer - 10-0744

Teradek SKU: 10-0744
No reviews
Price:
$899.00

Description

Serv Micro is an HDMI-Only wireless video transmission system that can support local streaming up to 10 devices and, when backed by Teradek Core, allows users to access live streams and instant recordings on unlimited devices anywhere in the world. Productions can easily share their camera feeds and playback with off-set producers and clients, allowing for real-time remote collaboration at an accessible price point.

This low-latency wifi-based wireless streaming device is designed to meet your production needs, even while responding to the normal networking challenges productions typically face. For example, when wifi is lost, recordings are saved to an SD card, allowing for a secure upload once connection is restored.

Serv Micro is also designed for quick mastery, with intuitive tools and easy-to-use workflows available through Vuer app and Core cloud solution. Serv Micro comes equipped with HDMI in and loop-through, ethernet and wifi connectivity, an auxiliary audio input, USB type A connection for easy connection to cellular bonding options and a built-in L-Series battery plate.

Three ways to use Serv Micro

  1. Stream to iOS and Android devices on set without an internet connection using Teradek VUER app. This is recommended for on-set producers and clients using personal devices.
  2. Share live camera feeds with anyone in the world using Teradek Core. This allows for real-time collaboration with remote creatives, producers, and clients.
  3. Share instant recordings for remote playback and review. Remote viewers can access and scrub through takes instantly after they’ve been shot using Teradek Core or third-party cloud platforms including Frame.io and Sony Ci.

Product Highlights

  • 256-bit Military-Grade Encryption
  • AVC Compression
  • HDMI and Loop Through
  • Local Streaming On Up To 10 Devices
  • Share Live Camera Feeds Using Teradek Core

Video -

Video Inputs

  • 1 x HDMI 2.0 Type-A receptacle

Video Outputs

  • 1 x HDMI 2.0 Type-A receptacle

Bonding -

Bonding

  • Simultaneous bonding over up to 7 networks:
  • Ethernet
  • Wi-Fi
  • USB cellular modem
  • Up to 4 cellphones (iOS or Android)

Video Processing -

Supported Video Bitrate

  • • USB cellular modem

Video Format Conversion Support

  • Built in video scaler and deinterlacer

Protocol Support -

Network Protocols

  • TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP

Supported Video Transport Protocols

  • AirMix, Teradek bonding

Audio Processing -

Audio Compression

  • AAC-LC

Supported Audio Bitrate Details

  • 48Kbps to 512Kbps

Inputs -

Audio Input

  • Embedded audio input (2 channel)
  • Analog line or Microphone in (2 channel)

Physical -

Dimensions

  • 4.1”W x 2.9”D x 1.1”H [105 x 75 x 28mm]

Weight

  • 190g (6.7 Oz)

Construction

  • Machined aluminum and ABS Plastic

Mountability

  • Can be mounted horizontally or vertically with 1/4” 20 or M3 mounting holes

Interfaces -

Configuration Interfaces

  • Feature-rich Web UI for configuration and control
  • OLED Status Display w/5-way navigation joystick

Switches

  • On/Off switch

Recording Storage

  • Full size SD/SDXC (class 6 and above) formatted exFAT
  • USB formatted FAT32

Mobile App

  • Serv Manager for iOS and Android devices

Cloud Services

  • Teradek Core, Frame.io, Sony Ci

Usb Interface Functionality

  • Powered USB host port

Network -

Ethernet

  • 10/100/1000 BASE-T

Wireless

  • WiFi 6: Dual Band MIMO 802.11 IEEE a, b, d, e, g, h, i, k, n, r, u, v, w, ac, ax

Usb

  • USB type A (host) for 3G/4G modem support

Rf Channel Selection

  • Auto with 3 modes: (2.4 or 5 GHz), Auto (2.4 GHz only), Auto (5 GHz only)
  • Manual: Configurable to specific channels

Power -

Power Input

  • 6-28V barrel connector
  • Sony L Series battery

Nominal Power Consumption

  • 4.5W using Ethernet
  • 6W using WiFi
