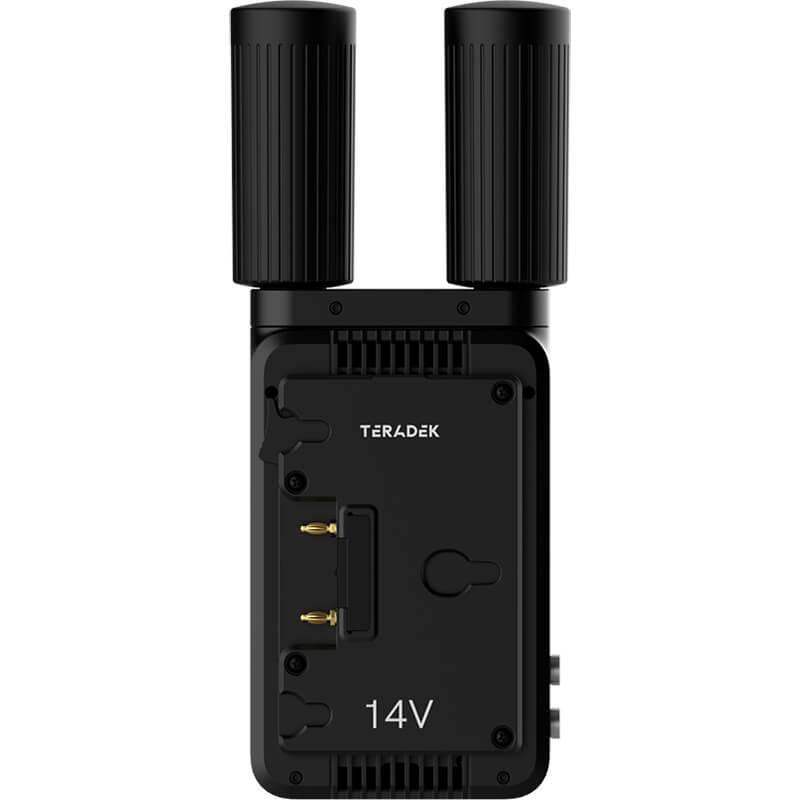

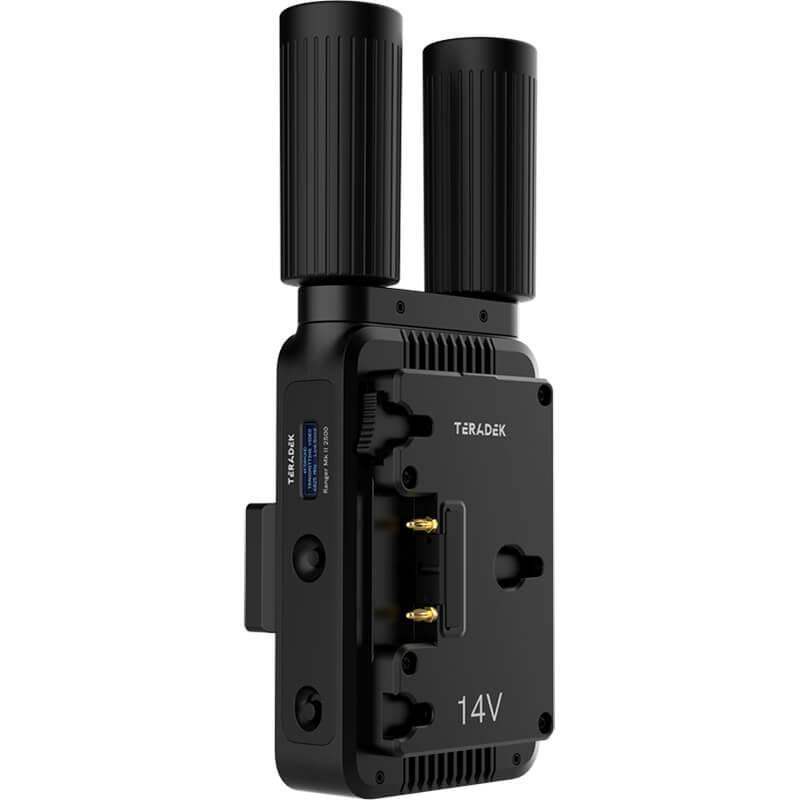

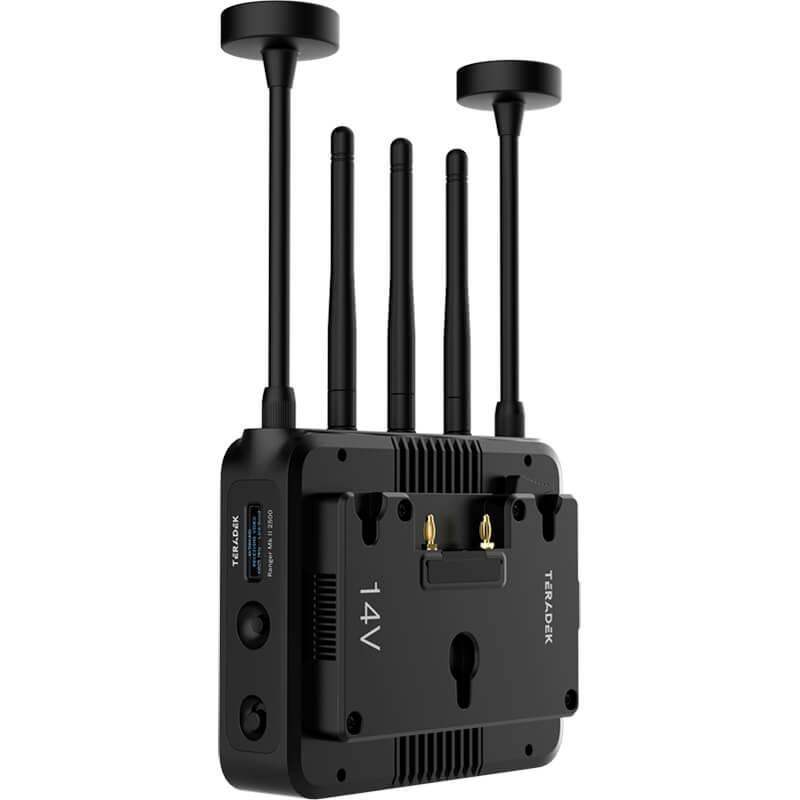

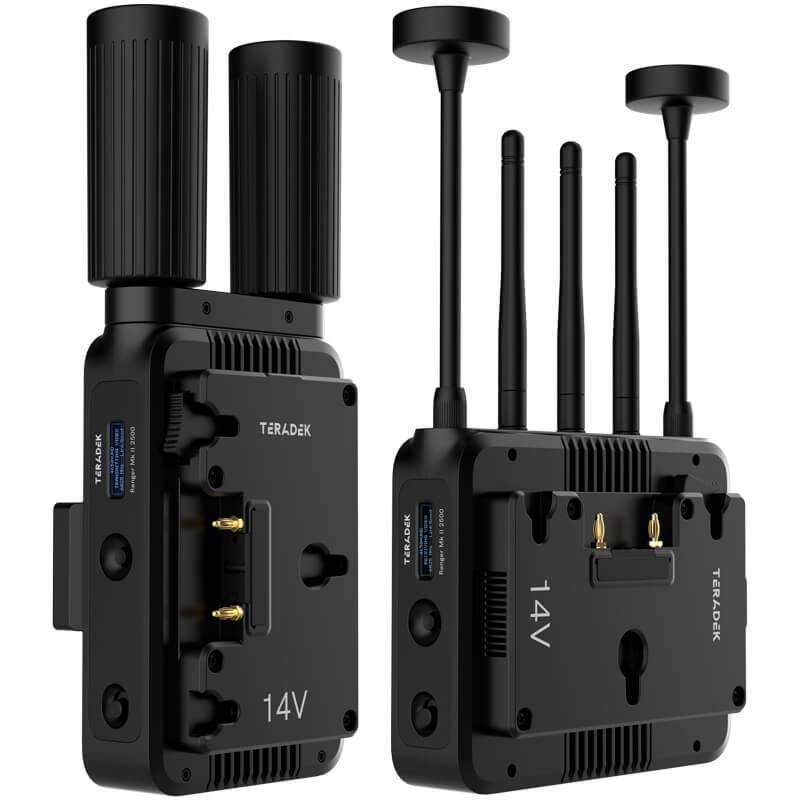

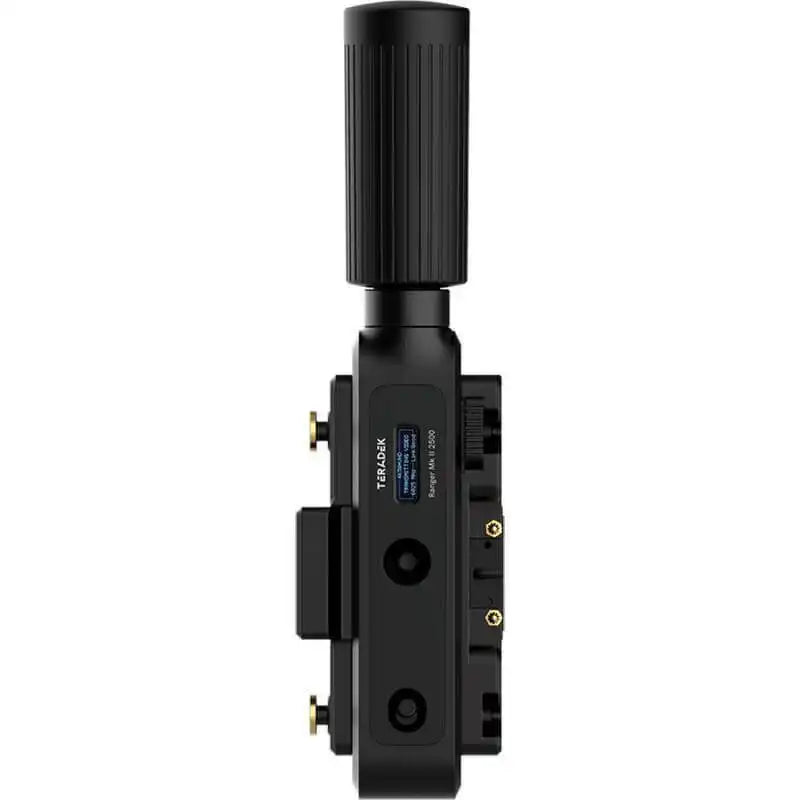

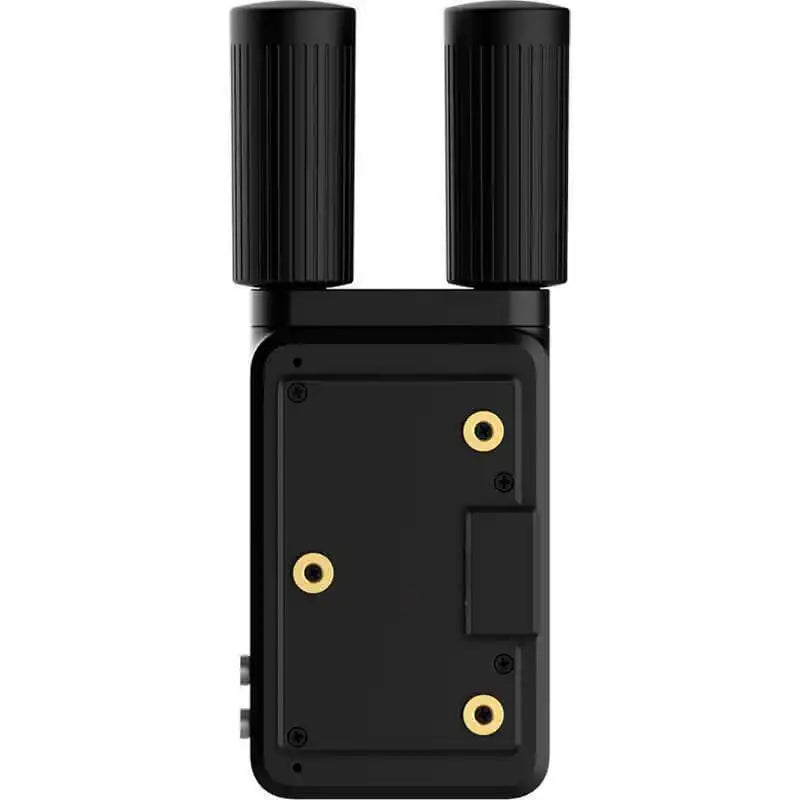

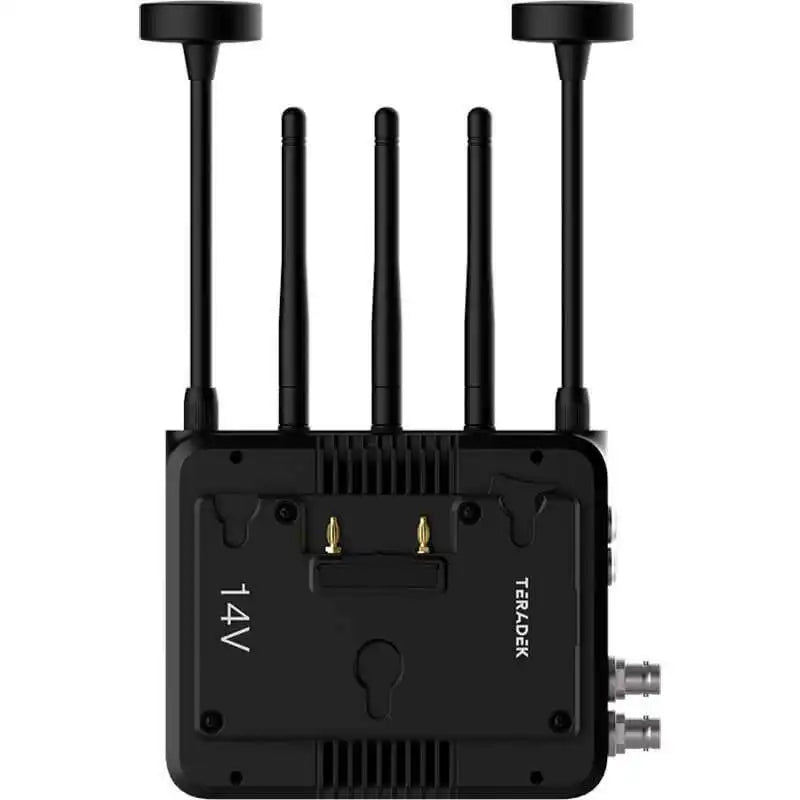

Teradek Ranger MK II 750 12G-SDI/HDMI Wireless Transmitter/Receiver Set (Gold Mount)
Teradek Ranger MK II 750 12G-SDI/HDMI Wireless Transmitter/Receiver Set (Gold Mount) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Teradek Ranger MK II 750 12G-SDI/HDMI Wireless Transmitter/Receiver...
Product Overview
The Teradek Ranger MK II 750 12G-SDI/HDMI Wireless TX/RX Set (Gold Mount) transmits visually lossless 4K60 video up to 750 feet line of sight across the 4.9–6.0 GHz frequency band. Compact and production-proven, this kit includes integrated Gold Mount battery plates on both transmitter and receiver for professional battery-powered deployment on film sets, studio stages, and live event productions. Cross-compatible with Bolt 4K series devices over 5 GHz.
Product Description
The Ranger MK II 750 Gold Mount set delivers 4K60 HDR wireless video in 10-bit 4:2:2 with less than 1ms latency. The transmitter accepts 12G-SDI and HDMI 2.0 inputs with a 12G-SDI loop output; the receiver delivers dual 12G-SDI and HDMI outputs. Gold Mount plates on both units enable battery-powered operation on Anton/Bauer-compatible batteries. AES-256 encryption with RSA-1024 key exchange secures the link, and one TX feeds up to six receivers simultaneously. The Bolt Manager app connects via Bluetooth for spectrum analysis, channel selection, and remote configuration.
Key Features
- 750 ft Line-of-Sight Range — Production-grade short-to-mid-range wireless 4K video.
- 4K60 10-bit 4:2:2 HDR — Visually lossless with Rec. 2020 HDR and sub-1ms latency.
- 12G-SDI and HDMI 2.0 I/O — TX loop output and dual 12G-SDI plus HDMI on RX.
- Gold Mount Battery Plates — Both TX and RX include integrated Gold Mount plates.
- Multicast to 6 Receivers — Single TX feeds up to six RX units simultaneously.
- AES-256 Encryption — RSA-1024 key exchange for wireless security.
- Bolt Manager App — Bluetooth spectrum analysis and remote configuration.
Typical Applications
- Feature film and studio production
- Live event and broadcast
- Auditorium and large-venue production
- House of worship multi-camera production
Technical Specifications
| Specification | Value |
|---|---|
| Wireless Range | Up to 750 ft line of sight |
| Video Latency | <1ms |
| Max Resolution | 4K DCI / UHD at 60fps |
| Color Sampling | 10-bit 4:2:2, Rec. 2020 HDR |
| TX Inputs | 1x 12G-SDI, 1x HDMI 2.0 |
| RX Outputs | 2x 12G-SDI, 1x HDMI |
| Operating Frequency | 4.9–6.0 GHz |
| Encryption | AES-256, RSA-1024 |
| Battery Mount | Gold Mount (both TX and RX) |
Frequently Asked Questions
- Is the Ranger MK II 750 compatible with Bolt 4K devices?
- Yes. The Ranger MK II 750 is cross-compatible with Bolt 4K series devices over 5 GHz.
- How many receivers can one transmitter feed?
- Up to six receivers simultaneously.
- What warranty does this product carry?
- Teradek provides a standard limited warranty. Contact Creation Networks for registration and support.
- Does the system support HDR workflows?
- Yes. 10-bit 4:2:2 with Rec. 2020 HDR, compatible with HLG, PQ, and HDR-10.
