Teradek Ranger MK II 5000 12G-SDI/HDMI Wireless Transmitter/Receiver Set (V-Mount)

Product Overview

The Teradek Ranger MK II 5000 12G-SDI/HDMI Wireless Transmitter/Receiver Set (V-Mount) delivers visually lossless 4K60 video transmission up to 5,000 feet line of sight, making it the highest-range option in the Ranger MK II line for long-distance broadcast and film production. The set includes a V-Mount battery plate on both transmitter and receiver, enabling on-camera or remote-monitor deployment powered by professional V-mount batteries. With 12G-SDI and HDMI I/O, AES-256 encryption, and cross-compatibility with Bolt 4K series devices, the Ranger MK II 5000 is engineered for demanding live production and cinema workflows where range and signal integrity are non-negotiable.

Product Description

The Teradek Ranger MK II 5000 V-Mount wireless video kit transmits uncompressed 4K60 HDR video in 10-bit 4:2:2 with less than 1ms of delay across distances up to 5,000 feet line of sight. Operating across the 4.9 to 6.0 GHz frequency range, the system provides stable transmission in RF-congested environments typical of large-scale live productions, stadium events, and feature film sets. The transmitter accepts 12G-SDI and HDMI 2.0 inputs with a 12G-SDI loop output, while the receiver delivers dual 12G-SDI and HDMI outputs for flexible signal distribution to monitors, video village, or switching equipment.

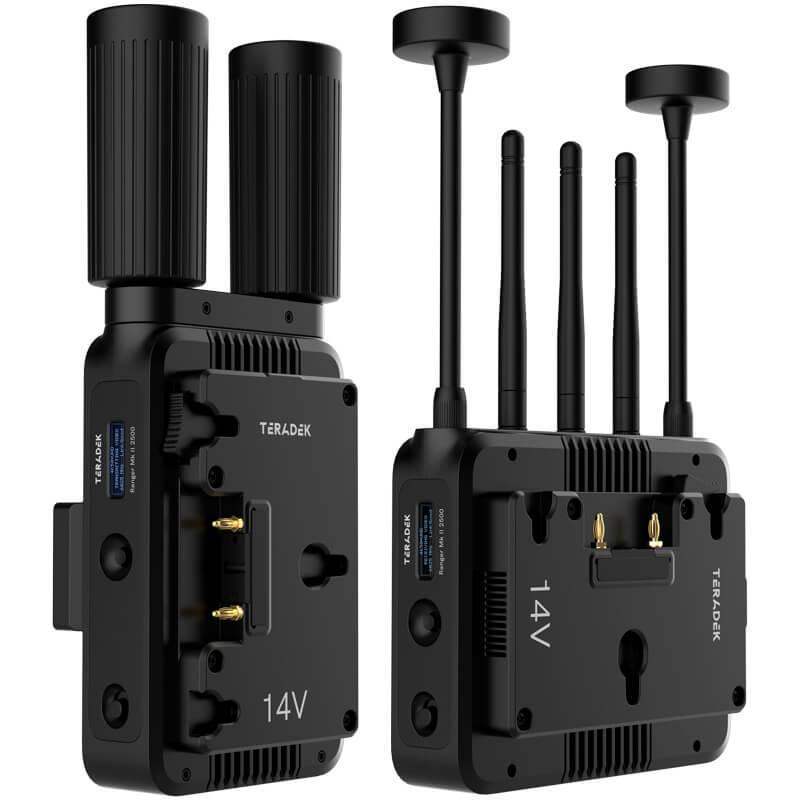

Both transmitter and receiver feature integrated V-Mount battery plates, allowing the units to run on standard professional V-mount batteries for untethered deployment. AES-256 encryption with RSA-1024 key exchange secures the wireless link, and the noise rejection system enables up to six Ranger MK II sets to operate simultaneously in the same location alongside Wi-Fi infrastructure. The Bolt Manager app for iOS, Android, macOS, and Windows provides Bluetooth-connected spectrum analysis, channel selection, and remote configuration. Timecode, start/stop flags, and ancillary metadata pass wirelessly through the link from most major camera manufacturers.

Key Features

• 5,000 ft Line-of-Sight Range — Maximum-range Ranger MK II configuration for large-scale broadcast and cinema productions.
• 4K60 10-bit 4:2:2 HDR — Visually lossless image quality with Rec. 2020 HDR support and less than 1ms latency.
• 12G-SDI and HDMI 2.0 I/O — Transmitter accepts both inputs with loop-through; receiver outputs dual 12G-SDI and HDMI.
• Integrated V-Mount Battery Plates — Both TX and RX units include V-mount plates for battery-powered, cable-free deployment.
• 4.9–6.0 GHz Operating Range — Wide frequency band with automatic and manual channel selection for RF-congested venues.
• AES-256 Encryption — RSA-1024 key exchange secures the wireless video link against interception.
• Up to 6 Simultaneous Sets — Multiple Ranger MK II units operate in the same area alongside Wi-Fi without interference.
• Camera Metadata Pass-Through — Transmits timecode, start/stop flags, and ancillary data from supported cameras.
• Bolt Manager App — iOS, Android, macOS, and Windows app for Bluetooth-based spectrum analysis and remote configuration.
• Cross-Compatible with Bolt 4K — Interoperates with Bolt 4K series transmitters and receivers over 5 GHz.

Typical Applications

• Broadcast studio and live event production
• Feature film and commercial video village
• Auditorium and large-venue live production
• Government and public safety video operations
• House of worship multi-camera live streaming
• Sports broadcast and stadium production

Technical Specifications

Frequently Asked Questions

What is the maximum operating range of the Ranger MK II 5000?

The Ranger MK II 5000 transmits up to 5,000 feet line of sight. Actual range will vary based on RF environment, obstructions, and antenna orientation.

Is this set compatible with Teradek Bolt 4K receivers?

Yes. The Ranger MK II is cross-compatible with Bolt 4K series devices over the 5 GHz band, allowing mixed deployments. Compatibility is limited by the shorter-range device in the pair.

What battery types are supported?

Both the transmitter and receiver feature integrated V-Mount battery plates. Standard professional V-mount batteries are required and sold separately.

Can multiple Ranger MK II 5000 sets operate at the same venue?

Yes. Up to six sets can operate simultaneously in the same location alongside Wi-Fi infrastructure using the built-in noise rejection system.

Does the system support HDR workflows?

Yes. The Ranger MK II 5000 supports 10-bit 4:2:2 color sampling with Rec. 2020 HDR, making it suitable for HLG, PQ, and HDR-10 production workflows.

What is the warranty on this product?

Teradek provides a standard limited warranty. Contact Creation Networks for warranty registration and support options.

Can camera metadata be transmitted wirelessly?

Yes. The system transmits timecode, start/stop flags, and ancillary metadata from most major camera manufacturers over the wireless link.
